Armasight TAT253CN4APOL01 Apollo 324 (30Hz) 42mm Thermal Imaging Clip-On System User Manual

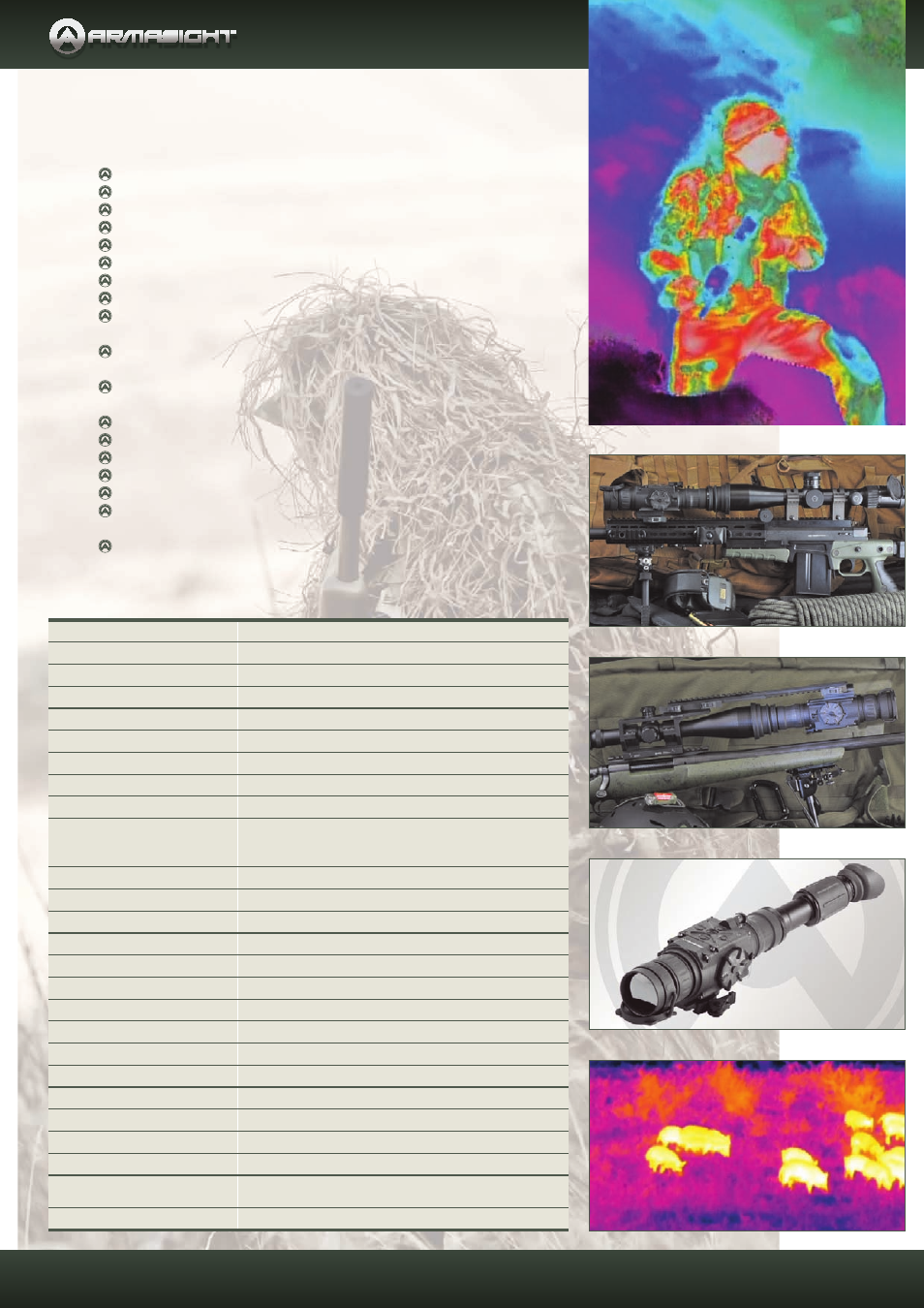

Page 2
Armasight Inc., 815 Dubuque Avenue, South San Francisco, CA 94080, USA
Phone: (888)959-2259, Fax: (888)959-2260, Intl Phone/Fax: (650)492-7755
www.armasight.com
Refresh Rate
30 Hz
Magnification (NTSC/PAL)
Unity (1x)
Objective Lens Type
Germanium
Type of Focal Plane Array
FLIR Tau 2
Pixel Array Format
324×256
Pixel Size
25 µm
Resolution, mrad
0.4
Display Type
AMOLED SVGA 060
Turn-on Time, max
3 sec
Image Palettes
"White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1,
Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM
Custom"
Analog Input and Output Format
PAL* / NTSC
Objective Focal Length
42 mm
Field of View - ang. (X / Y)
11° x 9°
Objective F-number
1:1
Diopter Adjustment
45-55 mm
Focusing Range
5 m to infinity
Exit Pupil Diameter
25 mm
Battery
Two CR 123A (2×3V)
Battery Life at 20 °C (68 °F)
up to 4 hr
External Power Supply
6 VDC/ 1 А
Weapon Mount Type
Picatinny, MIL STD 1913, and Weaver Rails
Operating Temperature
-40 to +57°C (-40 to +134°F)
Storage Temperature
-50 to +85°C (-58 to +185°F)
Overall Dimensions
217Ч70Ч80 mm (8.5”Ч2.8”Ч3.2“)
Height of the Apollo Axis
above Rail
40 mm (1.57 in)
Weight (w/o Batteries)
0.7 kg (1.5 lbs)
Simple and quick conversion of daytime scope to thermal imaging
Mounts in front of any daytime scope, no re-zeroing required
The lightest and most compact scope in its class
User selectable NTSC or PAL format
The latest Tau 2 17-micron uncooled FLIR core technology
Display Type: AMOLED SVGA 800x600
Easy and Intuitive Drop-down user interface
Color Modes: White Hot/ Black Hot/ Rainbow/ Various Color modes
Extended operation time with optional external battery power
supply
Recording: video output /optional Video Recorder with onboard
replay
Hunting scenario algorithms for optimized performance (Hog,
Coyote, Mountain Lion, etc.)
Tactical scenarios (CQB, etc.)
Wireless remote control for tactical operations
Waterproof, CNC machined aircraft-aluminum alloy construction
Rapid start-up
MIL -STD-1913 (Picatinny Rail) Quick Release Mount
Integral MIL-STD-1913 rails on unit for optional day optics or ac-
cessories
Made in USA
