7
level of 1 lux, you will barely be able to read a newspaper, even after your eyes have adapted to the
dim light or darkness).
2) Remove the front lens cap.
3) Activate the unit by rotating the operation switch from OFF position. After a momentary delay, a
green light indicating correct IIT operation will appear.
4) Observe the scene and focus your Vampire.

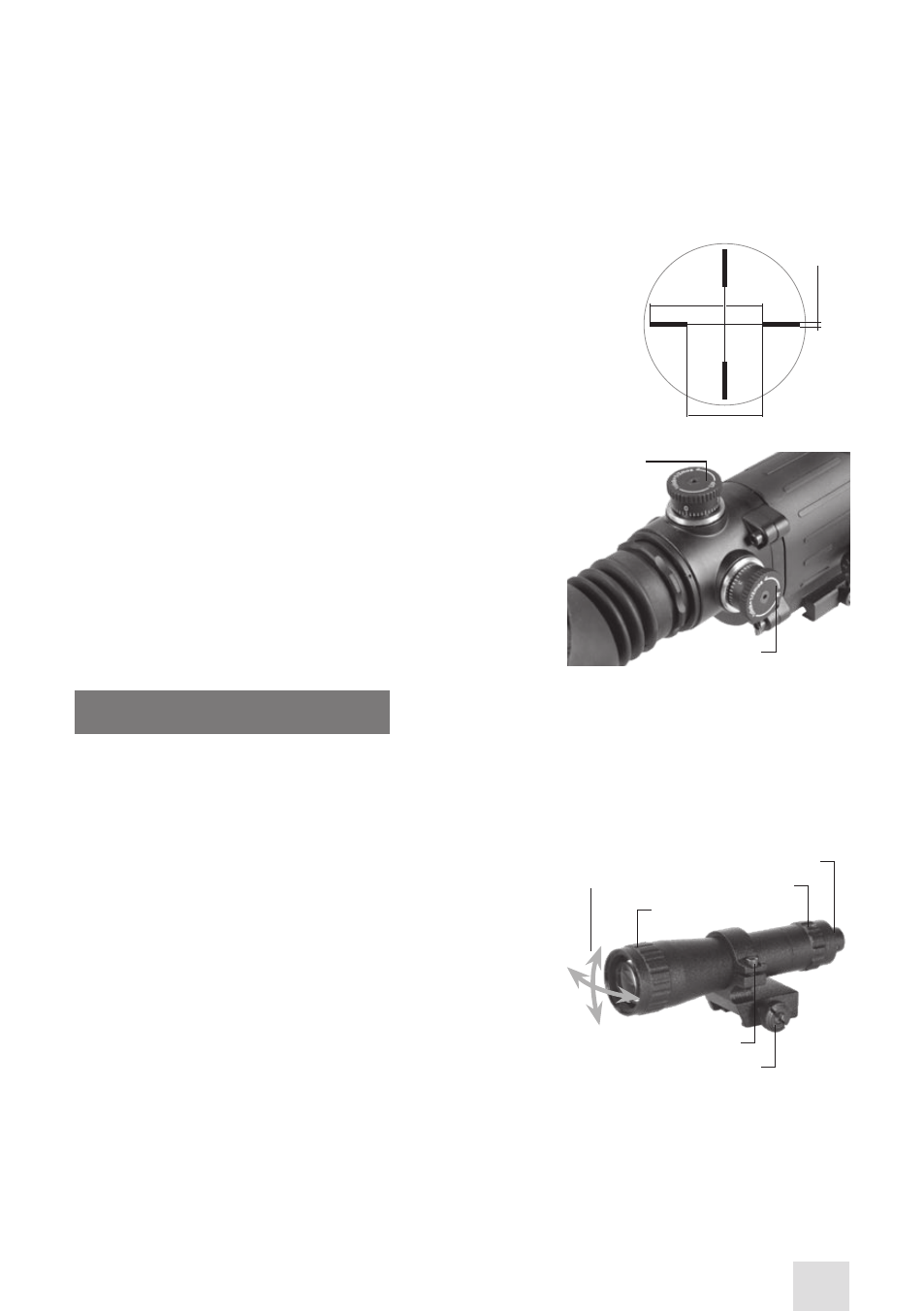

RETIClE
The Armasight Vampire reticle provides a clear aiming point,
even when difficult-to-see games or objects blend into the
background. Posts and crosshairs appear in the center sec-
tion of the field of view, but occupy a minimal portion of the
image, making precise shots on even the smallest targets
easy and accurate.
wInDAgE AnD ElEvATIOn ADjUSTMEnT
The vertical and horizontal adjustments of the Armasight
Vampire can be regulated by adjusting the elevation and
windage turrets. You will first need to remove the dust caps.
Each click indicates 1/2 of an inch at 100 yard’s distance.
Once the turrets stop turning, do not attempt to turn them
any further, as this may damage the mechanism.
4. IR IllUMInATOR
Infrared illuminators are used in areas where the level of light is not sufficient for the unit to generate
a bright, clear image. An IR illuminator provides infrared light which, although invisible to the naked
eye, can greatly enhance the performance of night vision devices. Turn on the IR810 when working in
total darkness. Remember that the beam emitted by your IR illuminator will lose its brightness over
long distances.
IR IllUMInATOR InSTAllATIOn
The IR810 is a removable infrared illuminator that can be
installed on the rail of the Vampire. To install the IR illumi-
nator on your sight, perform the following steps:
1) Loosen the fixing screw on the IR810 mount.
2) Place the IR810 on the Picatinny rail.
3) Tighten the fixing screw.
IR IllUMInATOR OPERATIOn
The Armasight IR810 runs on a single CR123A battery. To install the battery, unscrew the battery com-
partment cap and insert the battery in accordance with the polarity markings on the unit’s body. Screw
the battery compartment cap back into position.
To turn the IR810 on, rotate the operation switch from the OFF position.
To adjust the power and brightness of the beam emitted by the IR810, rotate the illuminator operation
switch.
windage
elevatiOn
FOcuS adjuStment
FiXing Screw
battery cOmpartment
OperatiOn Switch
Screw OF clamp
beam directiOn
adjuStment
10MIL 5MIL
0.5MOA
0.
5M
IL
