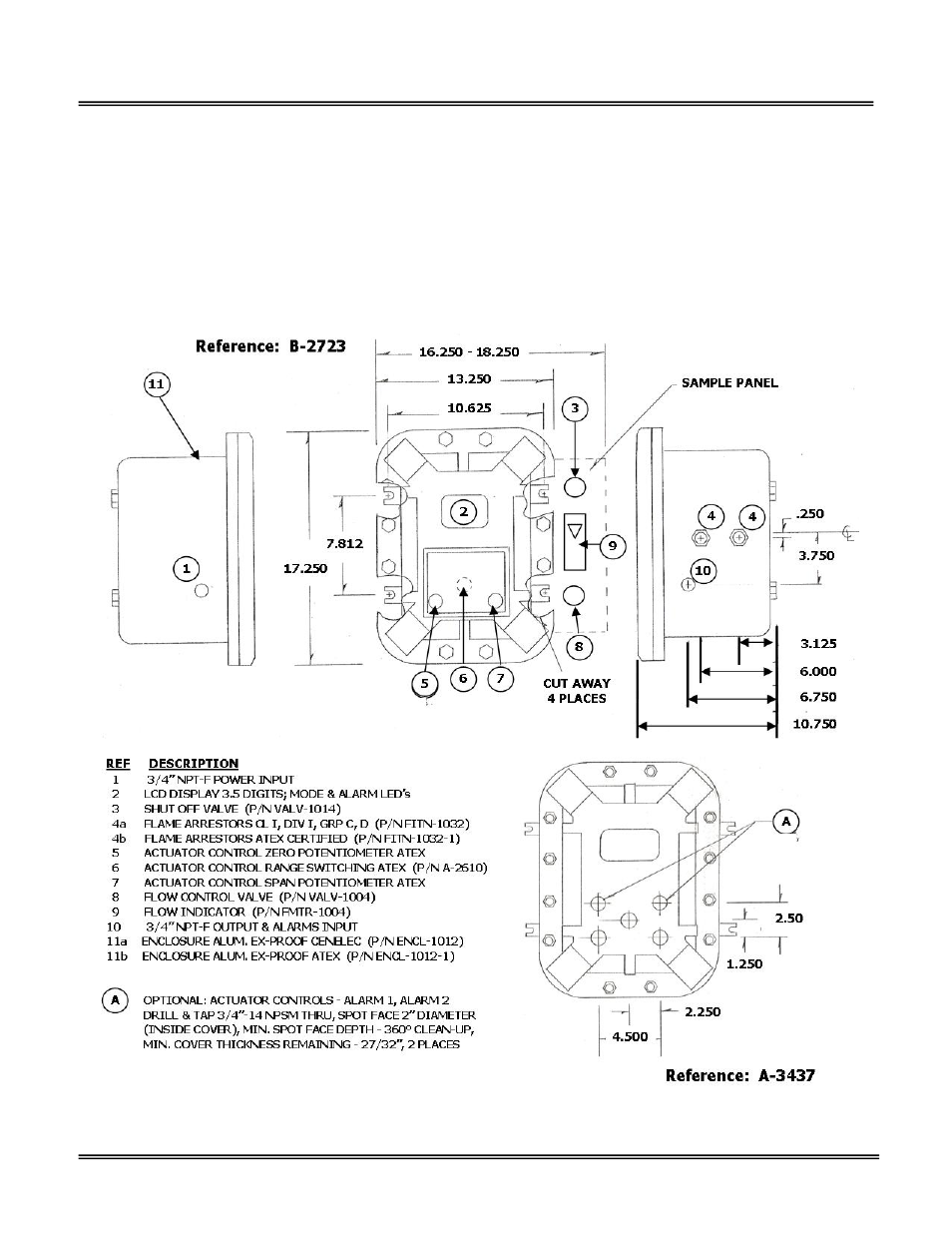

Mounting the Analyzer
The oxygen analyzer consists of two PCB assemblies, sensor housing and sample system valves. An optional temperature
controlled heater system enhances stability during low ppm measurements. In standard configuration the alarm controls are
integral to prevent tampering, however, as illustrated below the alarm controls can be accessed externally with approved
actuators.
These components are packaged in 13.250x17.250x10.750” wall mount enclosure with ATEX certification and NEMA 4/7 rating.
Designed for mounting on a flat vertical surface approximately 5 feet above the floor by bolting the mounting feet attached to
the rear of the enclosure. The user is responsible for selecting the appropriate bolts to support at least 80 pounds.
