2 A-2587RR REV -
2007-2012 MERCEDES R-CLASS
(W251) w/AIRMATIC FRONT AIR SPRING
A-2587
General information:
* Shocks not to be stored below 5
0
F (-15
0
C) and above 122
0
F (50
0
C).
*Avoid damage to air lines and cables.
*Removal and installation is only to be performed by full qualified personnel.
*Use car manufacturer’s diagnostic software.
*CAUTION: Damage to the vehicle and shock assembly can be incurred if work is
carried out in a manner other than specified in the instructions or in a different
sequence.
FRONT AIR SHOCK REMOVAL:
The ignition must remain switched off during the shock removal and replacement.
1.0 Set steering to straight ahead.

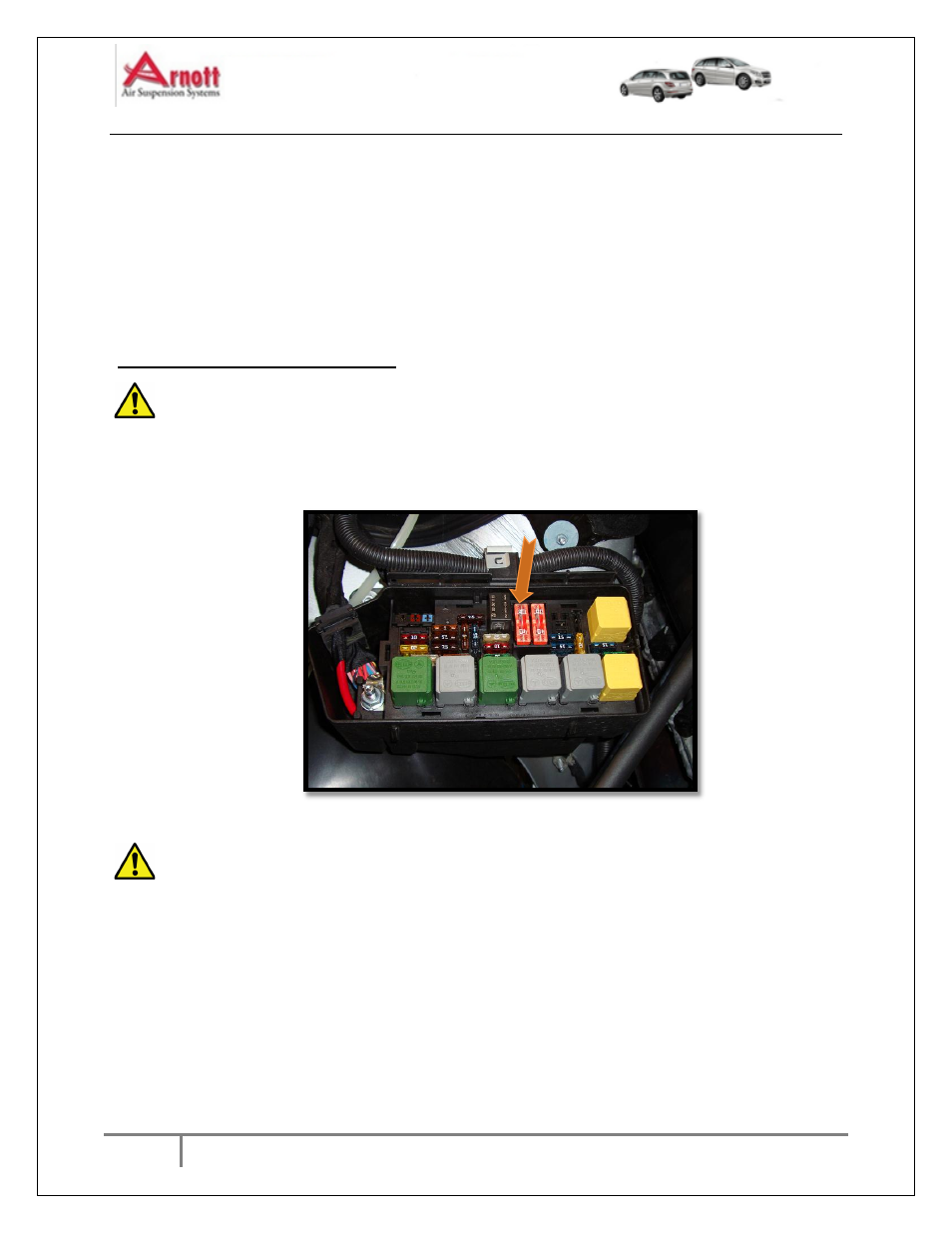

2.0 Locate and remove the air compressor fuse (Figure A).
Figure A
Use lifting platform (hoist) that is capable of raising the body separately from the
wheels, lift body at the lifting points prescribed by the vehicle manufacturer.
Vehicle slippage can cause danger to life and limb.
3.0 Raise vehicle.
4.0 Remove front tire.
5.0
Disconnect the air shock ADS control cable connector (located in the fender well).
