Air Suspension A-2587 User Manual
Page 10
10
A-2587RR REV -
2007-2012 MERCEDES R-CLASS
(W251) w/AIRMATIC FRONT AIR SPRING
A-2587
10.0

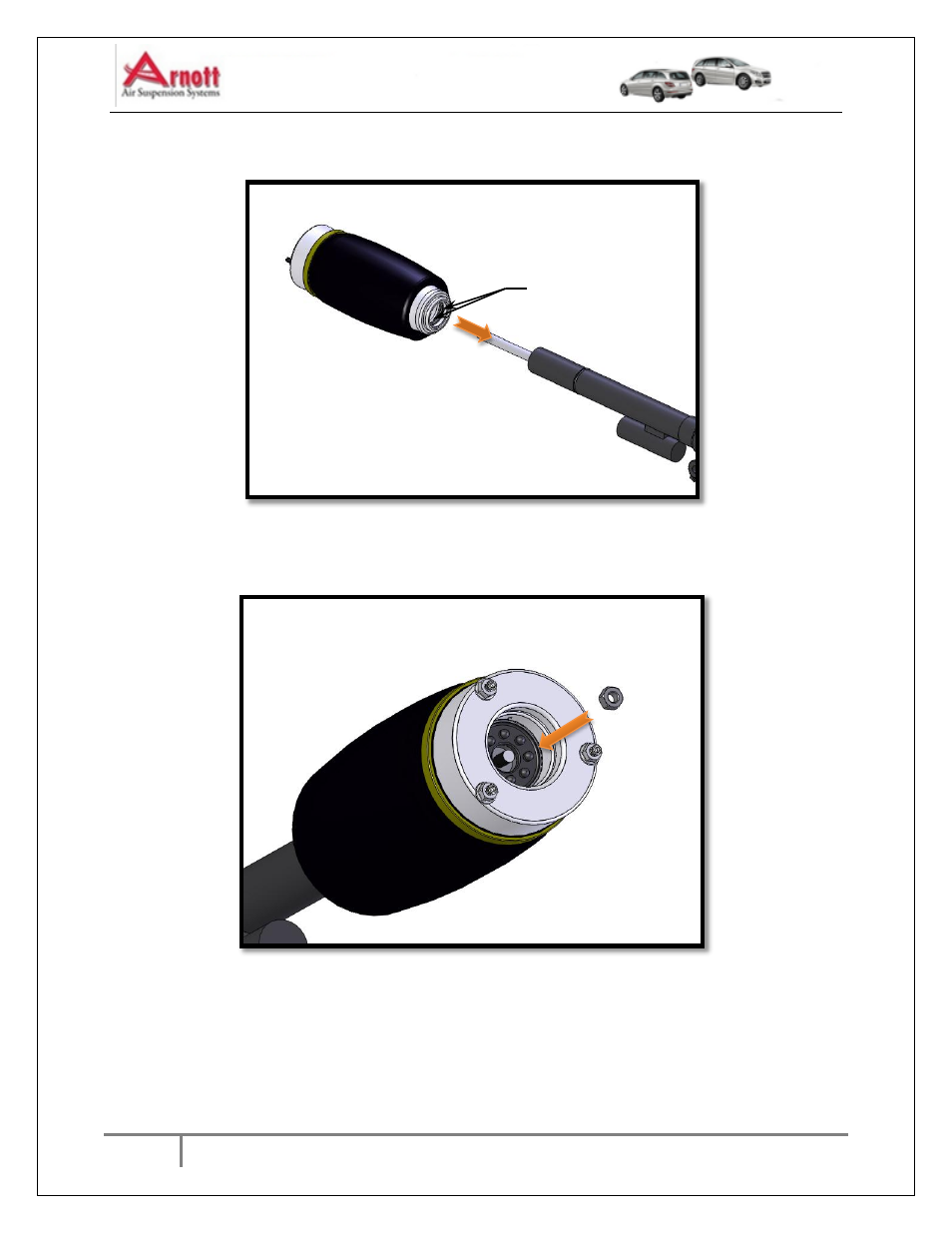

Obtain the new air spring, apply a lubricant to the O-rings in the bottom of the air spring
and install onto the shock (Figure P).
Figure P
11.0
Install locknut onto shaft of shock and tighten to manufactures specifications (Figure Q).
Figure Q
O-RINGS
