Air Suspension AS-2605 REV 4 User Manual
Page 4
4
AS-
2605
ARNOTT FRONT AIR STRUT
FOR
1999-2006
MERCEDES-BENZ S-CLASS (W220 CHASSIS)
W/O ABC, W/O 4MATIC
AS-2605
REV 4
02/06/2014
9.
REMOVAL COMPLETE.
8.

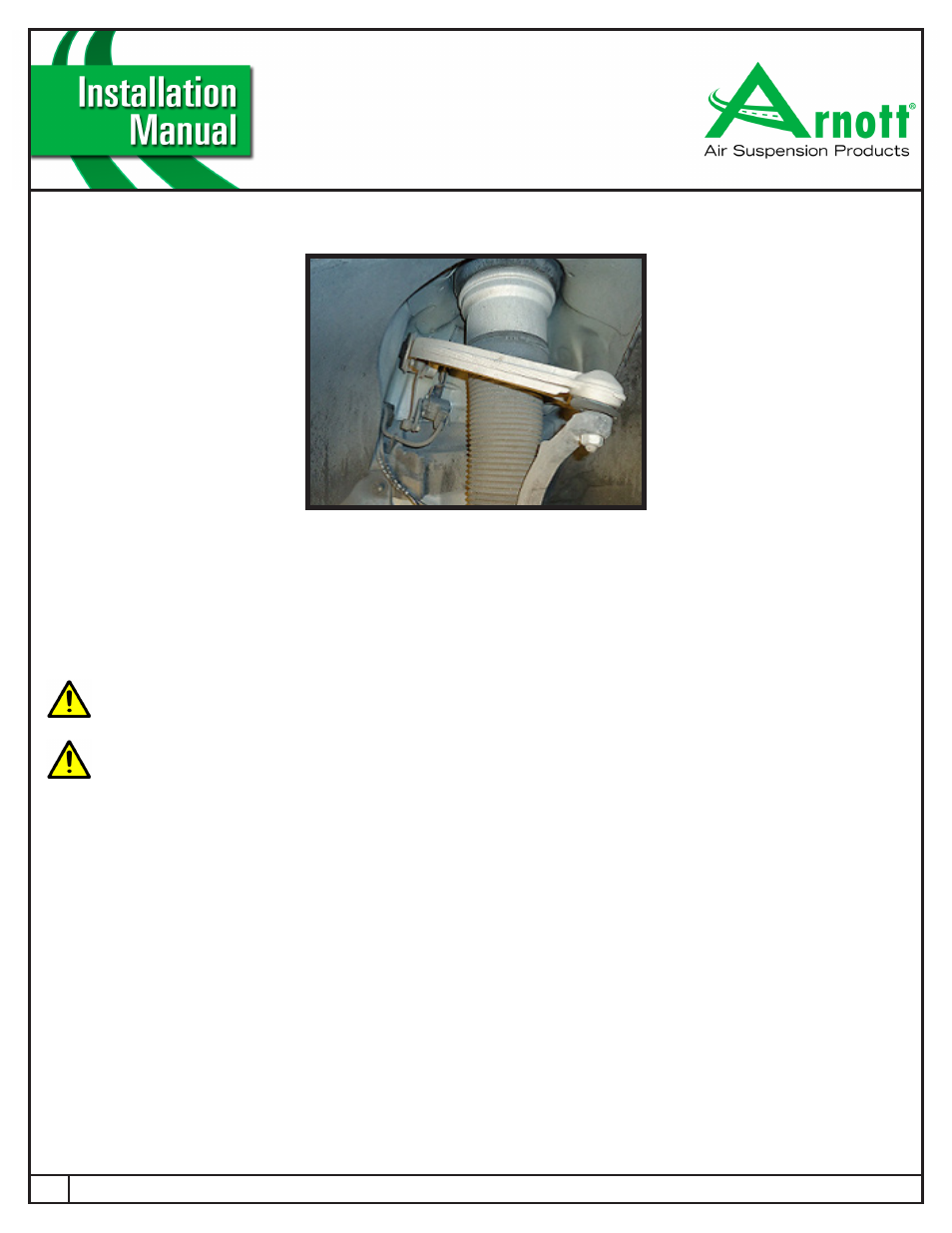

SEPARATE UPPER CONTROL ARM BALL JOINT FROM THE SPINDLE ASSEMBLY AND REMOVE THE AIR STRUT.
(FIGURE E)
FIGURE E
AIR STRUT INSTALLATION
1.
INSTALLATION IS IN REVERSE ORDER OF AIR STRUT REMOVAL.
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Do not remove the air fitting from the air strut. Doing so may cause damage and/or void warranty. Remove the white
shipping pin from the new air fitting and insert the air line until fully seated.
