Air Suspension AS-2605 REV 4 User Manual
Page 3
3
AS-
2605
ARNOTT FRONT AIR STRUT
FOR
1999-2006
MERCEDES-BENZ S-CLASS (W220 CHASSIS)
W/O ABC, W/O 4MATIC
AS-2605
REV 4
02/06/2014
7.

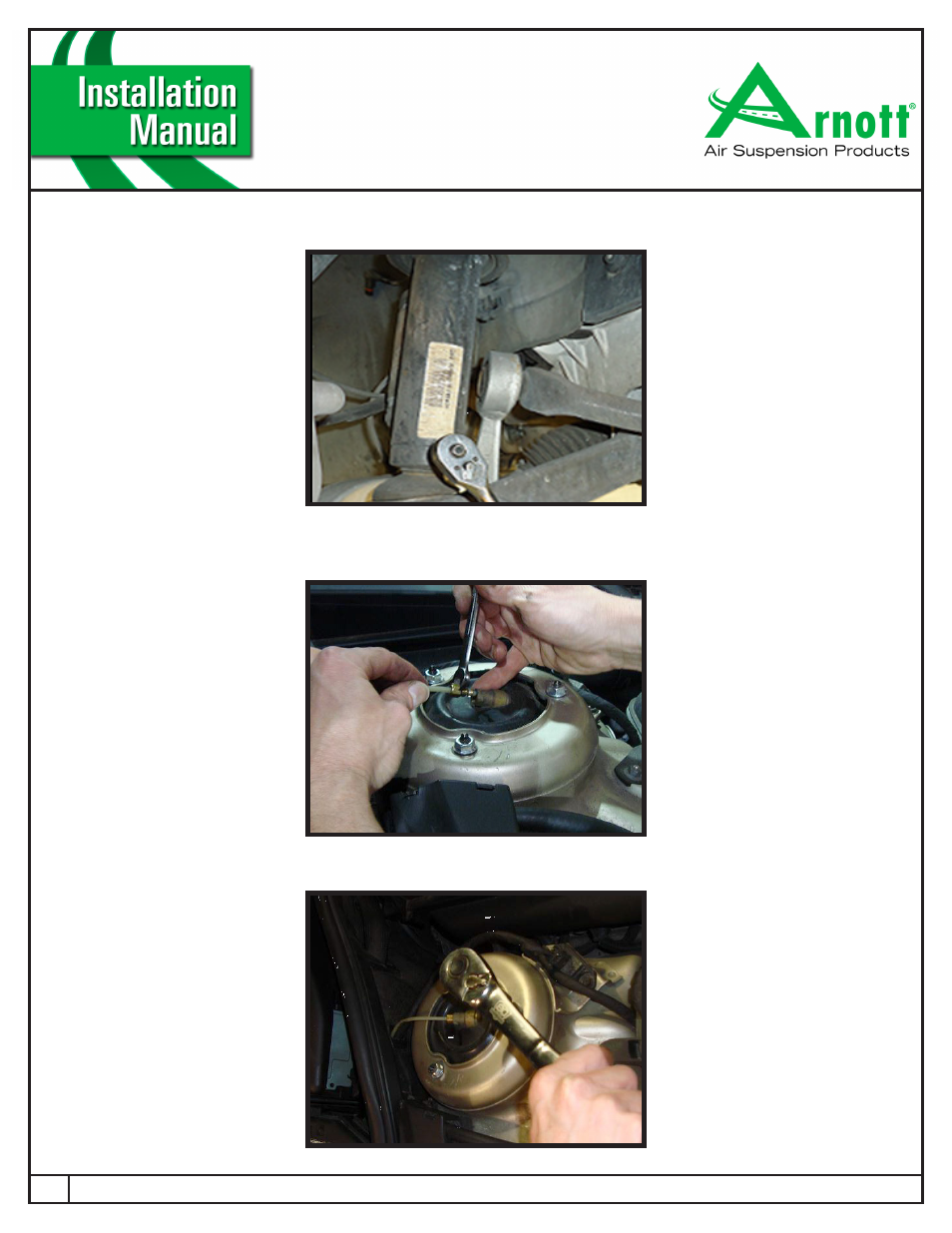

REMOVE THE THREE (3) NUTS HOLDING THE TOP MOUNT OF THE SHOCK. (FIGURE D)
5.
LOOSEN THE TWO (2) SET SCREWS (180 DEGREES APART) LOCATED ON THE BOTTOM OF THE SHOCK ASSEMBLY.
(FIGURE B)
6.
RAISE HOOD AND DISCONNECT THE AIR LINE FROM THE SHOCK ASSEMBLY. REMOVE THE AIR LINE FITTING
FROM THE AIR HOSE AND DISCARD. (FIGURE C)
FIGURE D
FIGURE B
FIGURE C
