WABCO OES AIR SUSPENSION COMPRESSOR
FOR
1999-2006
MERCEDES-BENZ S-CLASS
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(INCLUDING 4-MATIC AND AMG)

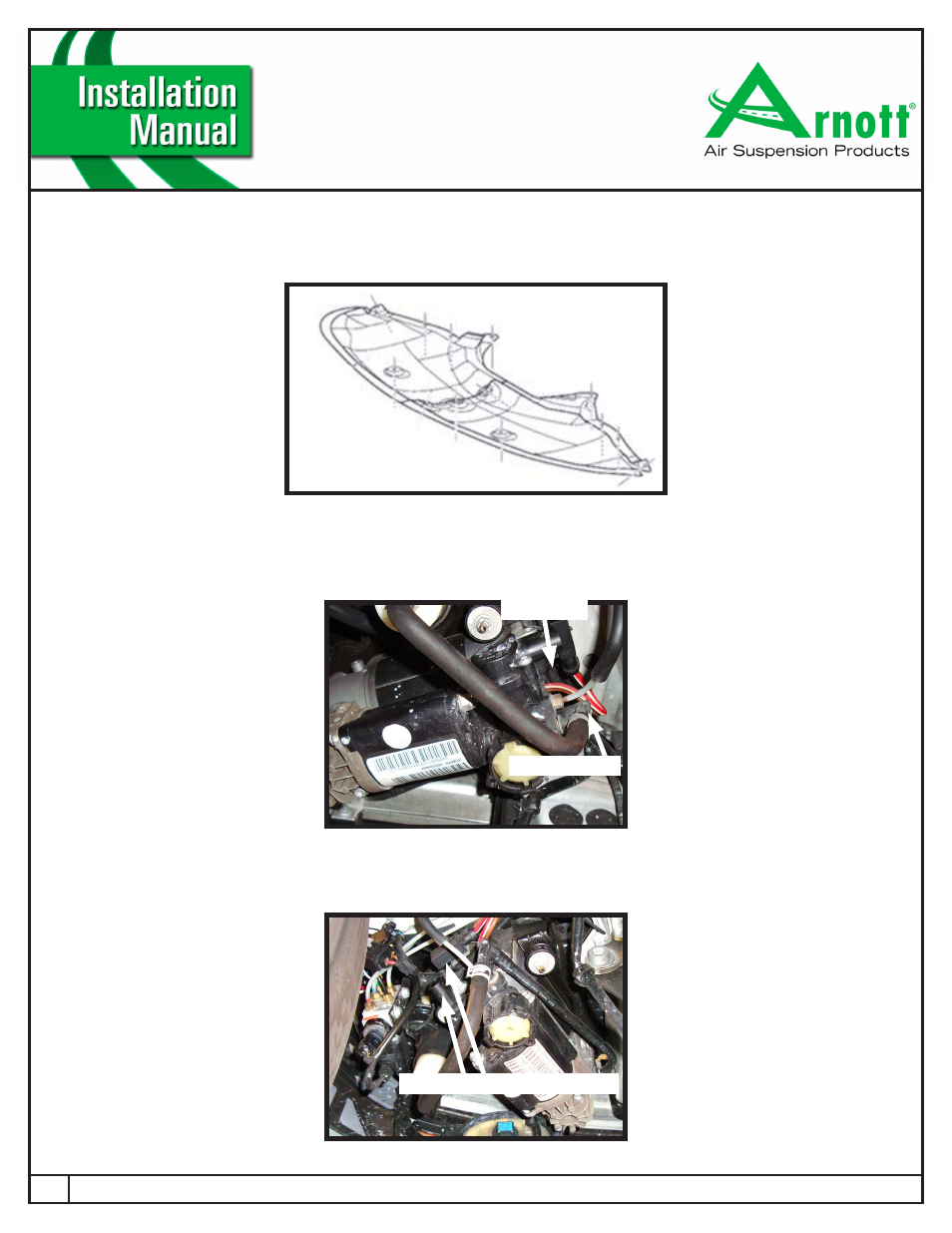

AIR SUSPENSION COMPRESSOR REMOVAL
1.
REMOVE ENGINE COMPARTMENT PANELING UNDERNEATH THE VEHICLE. (FIGURE A)
FIGURE A
2.
REMOVE THE AIR LINE AND INTAKE TUBE FROM THE COMPRESSOR. REMOVE THE AIR LINE FITTING FROM
THE AIR HOSE AND DISCARD. (FIGURE B)
3.
DISCONNECT THE TWO (2) ELECTRICAL CONNECTORS FROM THE COMPRESSOR UNIT. (FIGURE C)
FIGURE B
FIGURE C
AIR LINE
INTAKE TUBE
ELECTRICAL CONNECTORS
