P- 2192
WABCO OES AIR SUSPENSION COMPRESSOR
FOR 1999-2006 MERCEDES-BENZ S-CLASS
FOR 2002-2009 MERCEDES-BENZ E-CLASS
FOR 2005-2011 MERCEDES-BENZ CLS-CLASS
(INCLUDING 4-MATIC AND AMG)
GENERAL INFORMATION:
Reading this manual signifies your agreement to the terms of the general release, waiver of liability, and hold harmless agreement,
the full text of which is available at www.arnottinc.com.
• Not to be stored below 5
o
F (-15
o
C) and above 122
o
F (50
o
C).
• Avoid damage to air lines and cables.
• Removal and installation is only to be performed by fully qualified personnel.
• Use car manufacturer’s diagnostic software.
CAUTION: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to
disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for
additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath
the vehicle if it is not adequately supported, as serious injuries and death can occur.

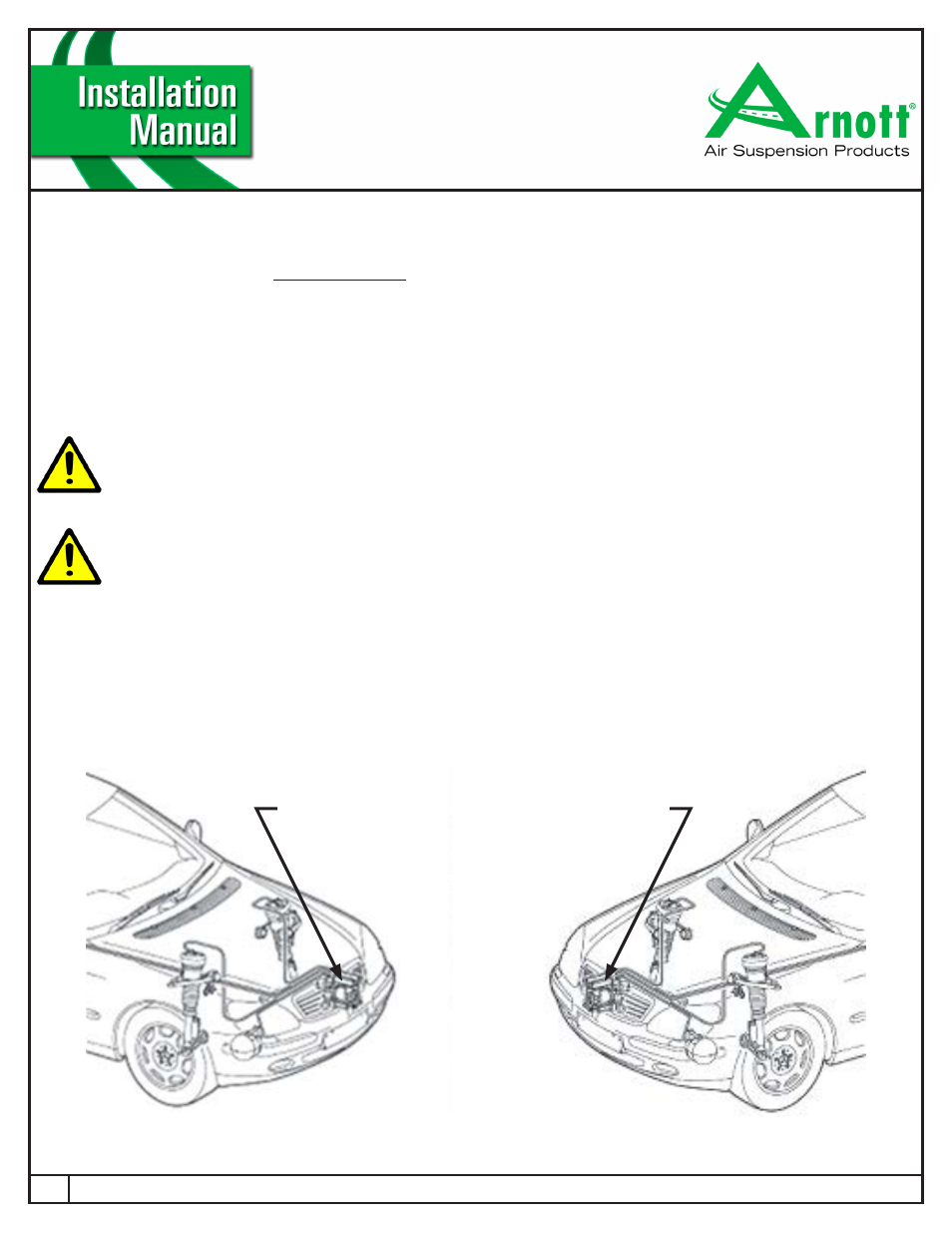

AIR COMPRESSOR MOUNTING LOCATIONS
FOR 2002-2009 MERCEDES-BENZ E-CLASS
FOR 2005-2011 MERCEDES-BENZ CLS-CLASS 1996-2006 MERCEDES-BENZ S-CLASS
COMPRESSOR COMPRESSOR
(left side of vehicle) (right side of vehicle)
