Air Suspension AS-2301 REV 4 User Manual
Page 4
4
AS
-2301
ARNOTT REMANUFACTURED
FRONT LEFT AIR STRUT
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(AMG
55 & 63
)
AS-2301
REV 4
02/26/2014
7.

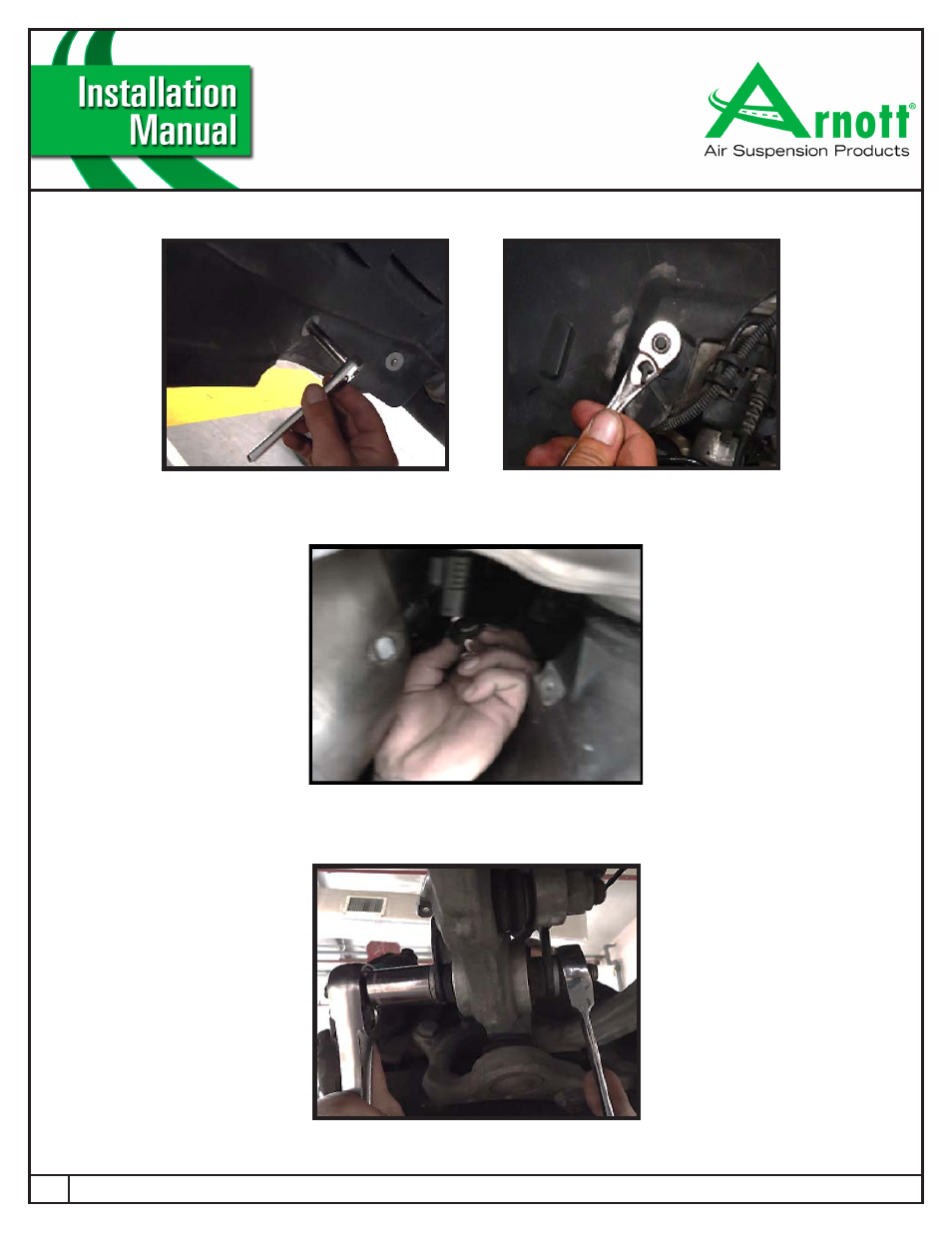

REMOVE INNER FENDER WELL SCREWS. (FIGURE E)
9.
LOOSEN LOWER SHOCK MOUNTING BOLT. (FIGURE G)
8.
LOCATE AND DISCONNECT ELECTRICAL PLUG. (FIGURE F)
FIGURE G
FIGURE F
FIGURE E
