Air Suspension AS-2301 REV 4 User Manual
Page 3
3
AS
-2301
ARNOTT REMANUFACTURED
FRONT LEFT AIR STRUT
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(AMG
55 & 63
)
AS-2301
REV 4
02/26/2014

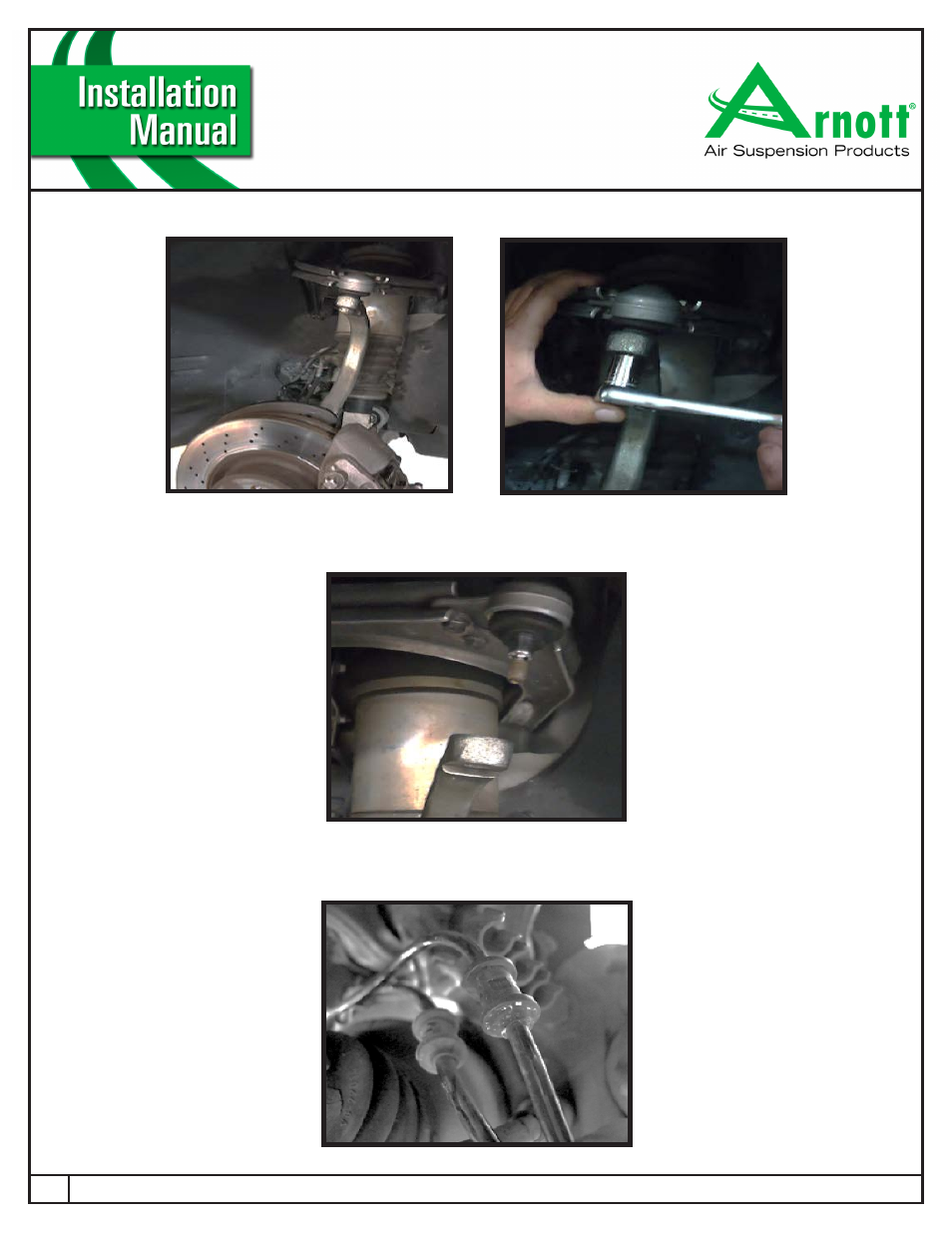

4.
LOCATE AND REMOVE UPPER CONTROL ARM BALL JOINT NUT. (FIGURE B)
6.
REMOVE SENSOR LINES FROM BRACKETS. (FIGURE D)
5.
SEPARATE BALL JOINT FROM SPINDLE ASSEMBLY. (FIGURE C)
FIGURE D
FIGURE B
FIGURE C
