Air Suspension SK-2456 REV 2 User Manual
Page 6
6
REV 2
02/12/2013
SK-2456
SK-
2456
ARNOTT REMANUFACTURED
REAR RIGHT ABC STRUT FOR
2000-2006
MERCEDES-BENZ S-CLASS
2000-2006
MERCEDES-BENZ CL-CLASS
14.
REMOVE THE BOLT AND NUT CONNECTING THE STRUT ASSEMBLY TO THE LOWER SUSPENSION ARM.
(FIGURE J)
15.
LOOSEN THE LOWER CONTROL ARM BOLT SLIGHTLY, DO NOT REMOVE (THIS WILL ALLOW THE LOWER CONTROL
ARM TO SWING DOWN). (FIGURE K)
16.
REMOVE STRUT ASSEMBLY FROM CAR.
17.
STRUT REMOVAL COMPLETE.

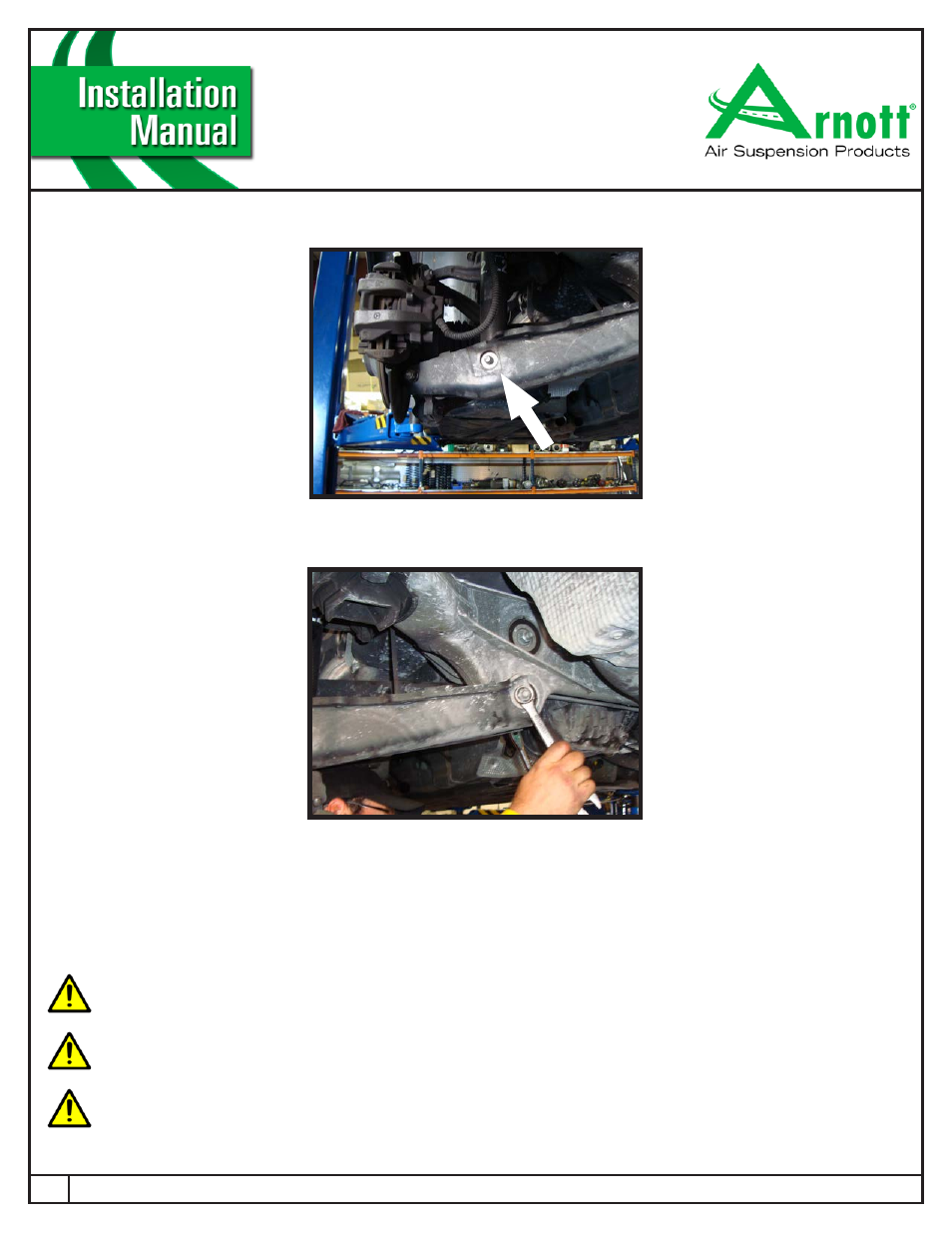

FIGURE J
FIGURE K
ABC STRUT INSTALLATION
1.
INSTALLATION IS IN REVERSE ORDER OF ABC STRUT REMOVAL.
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Please refer to your vehicle manufacturer's service manual for re-pressurizing the ABC
®
hydraulic suspension system.
Work is to be performed by a factory trained mechanic; failure to do so may cause damge to the vehicle. Diagnostic
software is required to re-pressurize the hydraulic system after strut installation.
