Air Suspension SK-2456 REV 2 User Manual
Page 4
4
REV 2
02/12/2013
SK-2456
SK-
2456
ARNOTT REMANUFACTURED
REAR RIGHT ABC STRUT FOR
2000-2006
MERCEDES-BENZ S-CLASS
2000-2006
MERCEDES-BENZ CL-CLASS
8.
REMOVE TWO (2) BOLTS ON THE BACKSIDE OF THE CALIPER. (FIGURE D)
9.
REMOVE THE RETAINING CLIP. (FIGURE E)
10.
REMOVE THE BRAKE PAD SENSOR BRACKET (PASSENGER SIDE ONLY). (FIGURE F)

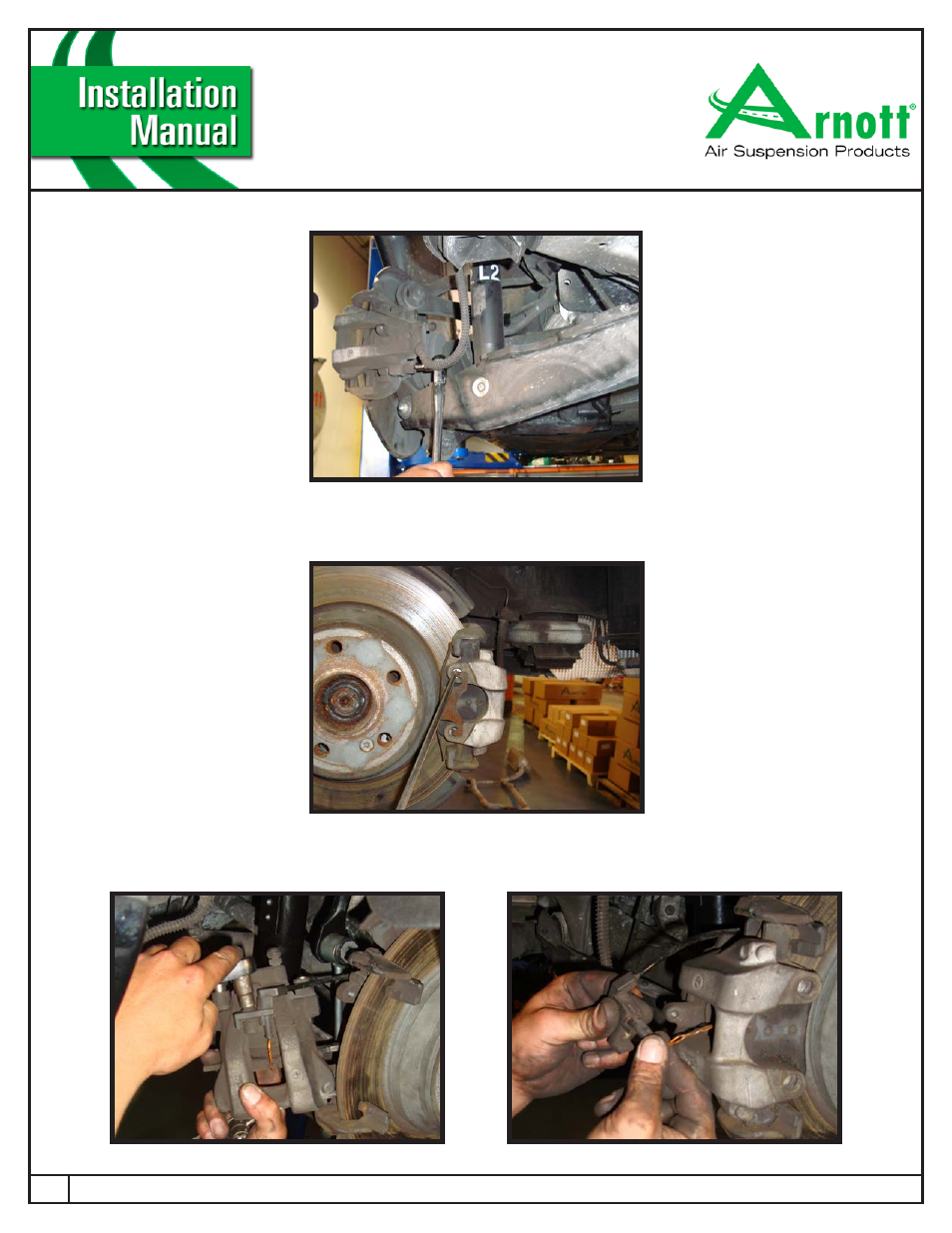

FIGURE D
FIGURE E
FIGURE F
