Air Suspension A-2212 REV 2 User Manual
Page 4
4
A-
2212
ARNOTT REAR LEFT AIR SPRING
FOR
1995-2002
LINCOLN CONTINENTAL
A-2212
REV 2
01/17/2014
AIR SPRING INSTALLATION
1.
PLACE NEW AIR SPRING INTO LOWER SUSPENSION SEAT. PRESS DOWN ON PISTON UNTIL THE PLASTIC
LOCKING CLIPS SNAP INTO PLACE. (REVERSE STEP # 7)
2.
PULL UP ON THE AIR SPRING CAP AND LOCK IT BACK TO THE TOP BODY BRACKET. (REVERSE STEP # 6)
3.
REPLACE O-RINGS AND INSTALL THE SOLENOID IN THE NEW AIR SPRING. (REVERSE STEPS 4 AND 5)
4.
REPLACE WHEEL AND LOWER SUSPENSION.
5.
TURN AIR SUSPENSION SWITCH BACK TO THE ON POSITION AND START VEHICLE. SUSPENSION WILL
AUTOMATICALLY RETURN TO ITS NORMAL TRIM HEIGHT.
Tighten all nuts and bolts to manufacturer's specifications during the installation process.

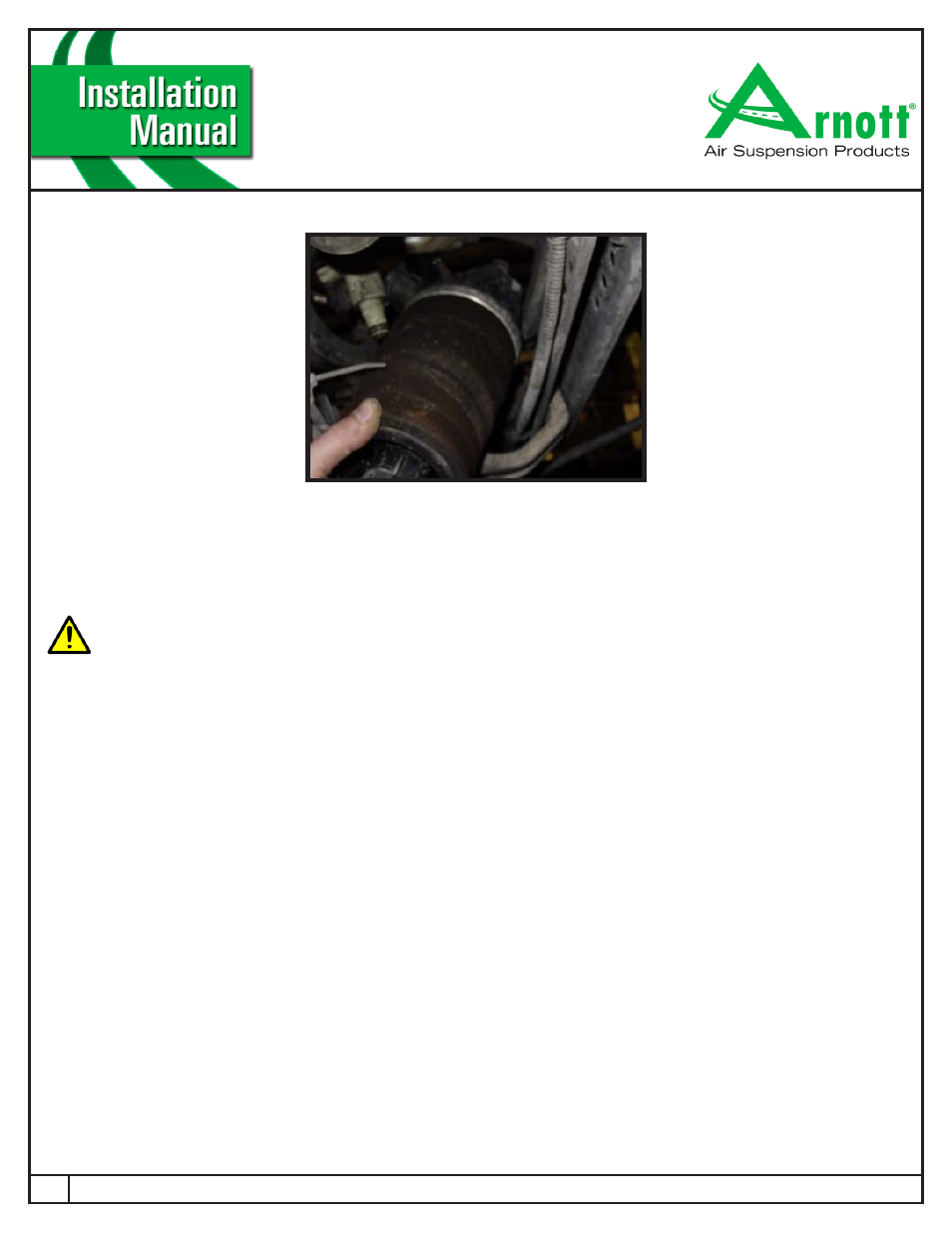

FIGURE E
8.
REMOVE OLD AIR SPRING FROM VEHICLE. (FIGURE E)
