Air Suspension A-2212 REV 2 User Manual
Page 3
3
A-
2212
ARNOTT REAR LEFT AIR SPRING
FOR
1995-2002
LINCOLN CONTINENTAL
A-2212
REV 2
01/17/2014
5.

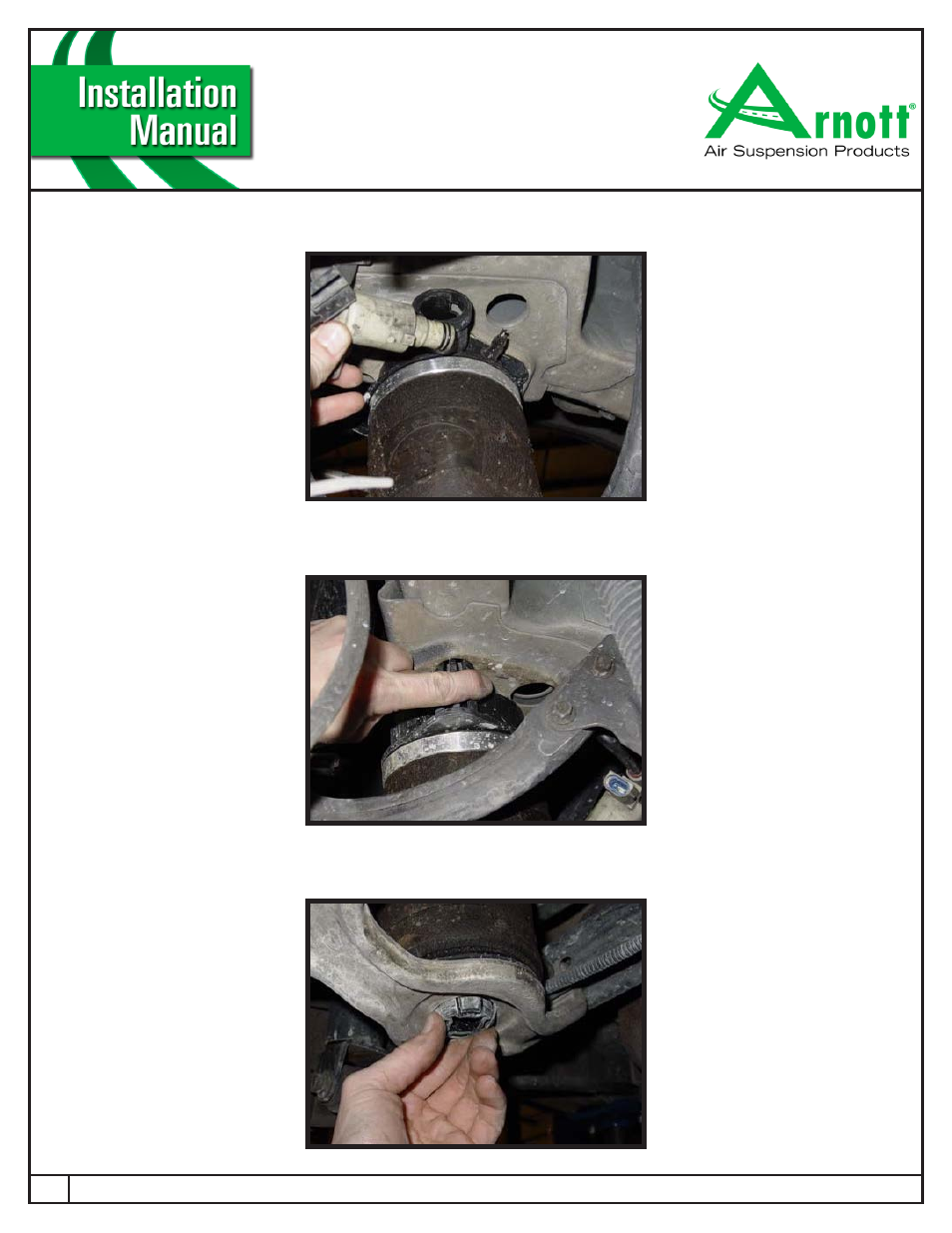

ROTATE SOLENOID COUNTERCLOCKWISE TO THE FIRST STOP, THEN PULL OUTWARD ON SOLENOID. MAKE
SURE ALL THE AIR VENTS OUT OF THE AIR SPRING. ROTATE AGAIN AND REMOVE SOLENOID. (FIGURE B)
FIGURE B
FIGURE C
FIGURE D
6.
DEPRESS THE TWO PLASTIC LOCKING FINGERS ON THE TOP AIR SPRING CAP. PUSH DOWN ON AIR SPRING
AND REMOVE FROM TOP BODY BRACKET. (FIGURE C)
7.
DEPRESS THE FOUR LOCKING CLIPS ON THE LOWER AIR SPRING PISTON. PUSH UP THROUGH SPRING SEAT.
(FIGURE D)
