Air Suspension C-2479 User Manual
Page 8
8
C-2479RR REV A
NOTE: EMPLOY THE SAME MANNER DESCRIBED BELOW TO THE
OTHER SIDE.
4.0
Remove the bolt and nut; disconnect the shock absorber from the lower suspension arm
(Figure H).

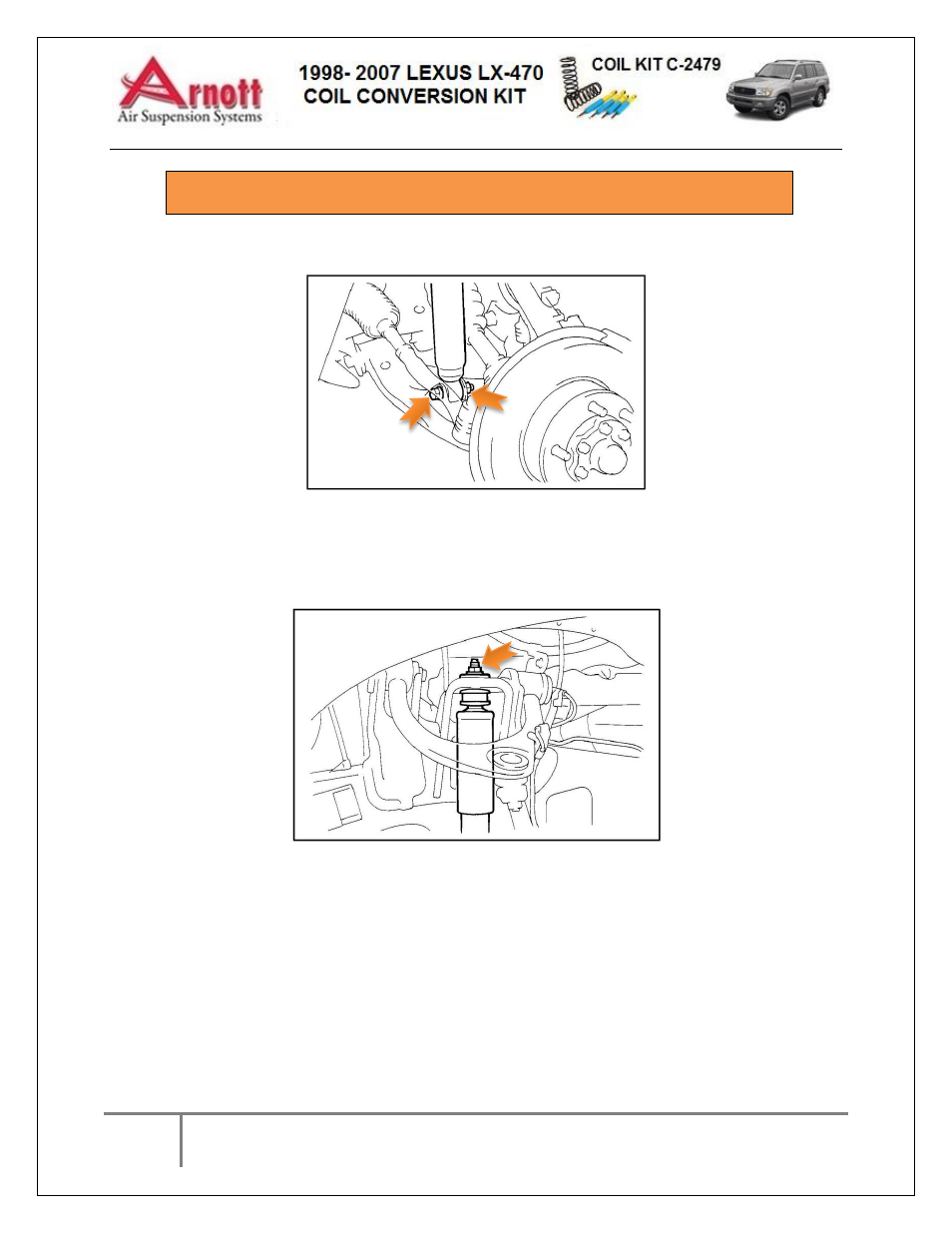

Figure H
5.0
Remove the 2 bolts holding the pressure hose, cap pressure hose and secure.
6.0
While holding the piston rod, remove the nut on the top of the shock absorber, 2
retainers, cushion and shock absorber (Figure I).
Figure I
7.0
Removal complete, installation is in the reverse order of removal (SEE FIGURE 2.0
FOR TORQUE SPECIFICATIONS).
