Air Suspension AS-2488 REV 2 User Manual
Page 3
3
REV 2
11/06/2013
AS-2488
AS-
2488
ARNOTT REMANUFACTURED REAR AIR STRUT
FOR
2004-2010
JAGUAR XJ
SERIES (COMFORT)
4.

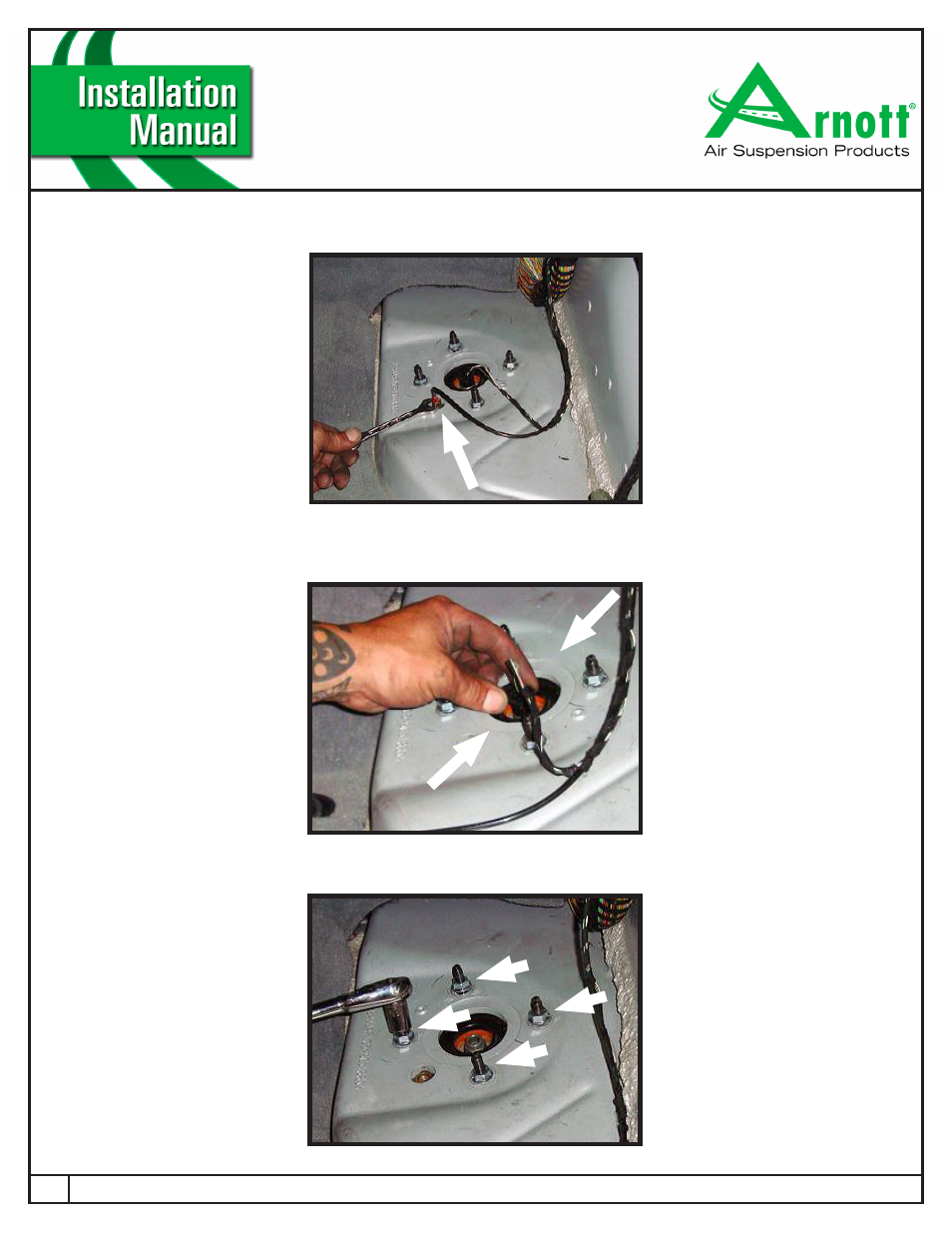

DISCONNECT THE AIR LINE FROM THE CHECK VALVE TO DEFLATE THE AIR STRUT. REMOVE THE AIR LINE
FITTING FROM THE AIR HOSE AND DISCARD. (FIGURE B)
5.
DISCONNECT THE ELECTRICAL CONNECTOR FROM THE TOP OF THE AIR STRUT (PUSH ON THE SIDES OF THE
CONNECTOR TO RELEASE. (FIGURE C)
6.
REMOVE THE FOUR (4) AIR STRUT MOUNTING NUTS. (FIGURE D)
FIGURE B
FIGURE C
FIGURE D
