Air Suspension AS-2396 REV 4 User Manual
Page 4
4
REV 4
11/06/2013
AS-2396
AS-
2396
ARNOTT REMANUFACTURED FRONT AIR STRUT
FOR
2004-2010
JAGUAR XJ SERIES (SPORT)
8.

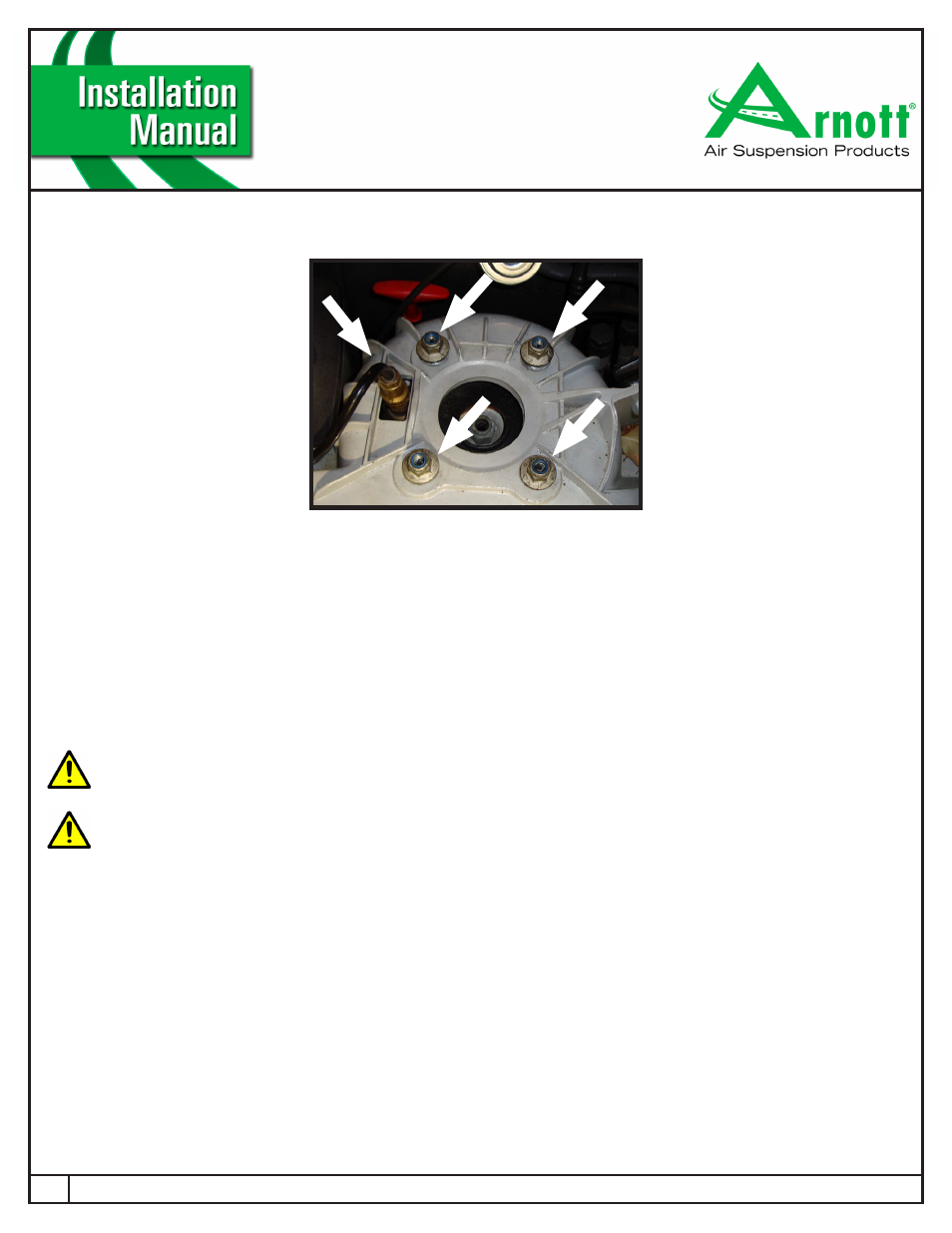

LOOSEN AND REMOVE THE FOUR (4) SHOCK MOUNTING NUTS. DISCONNECT THE AIR LINE FROM THE
CHECK VALVE. REMOVE THE AIR LINE FITTING FROM THE AIR HOSE AND DISCARD. (FIGURE E)
9.
REMOVE THE AIR STRUT.
10.
REMOVAL COMPLETE.
FIGURE E
AIR STRUT INSTALLATION
1.
INSTALLATION IS IN REVERSE ORDER OF AIR STRUT REMOVAL.
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Do not remove the air fitting from the air strut. Doing so may cause damage and/or void warranty. Remove the white
shipping pin from the new air fitting and insert the air line until fully seated.
