Air Suspension AS-2396 REV 4 User Manual
Page 3
3
REV 4
11/06/2013
AS-2396
AS-
2396
ARNOTT REMANUFACTURED FRONT AIR STRUT
FOR
2004-2010
JAGUAR XJ SERIES (SPORT)
5.

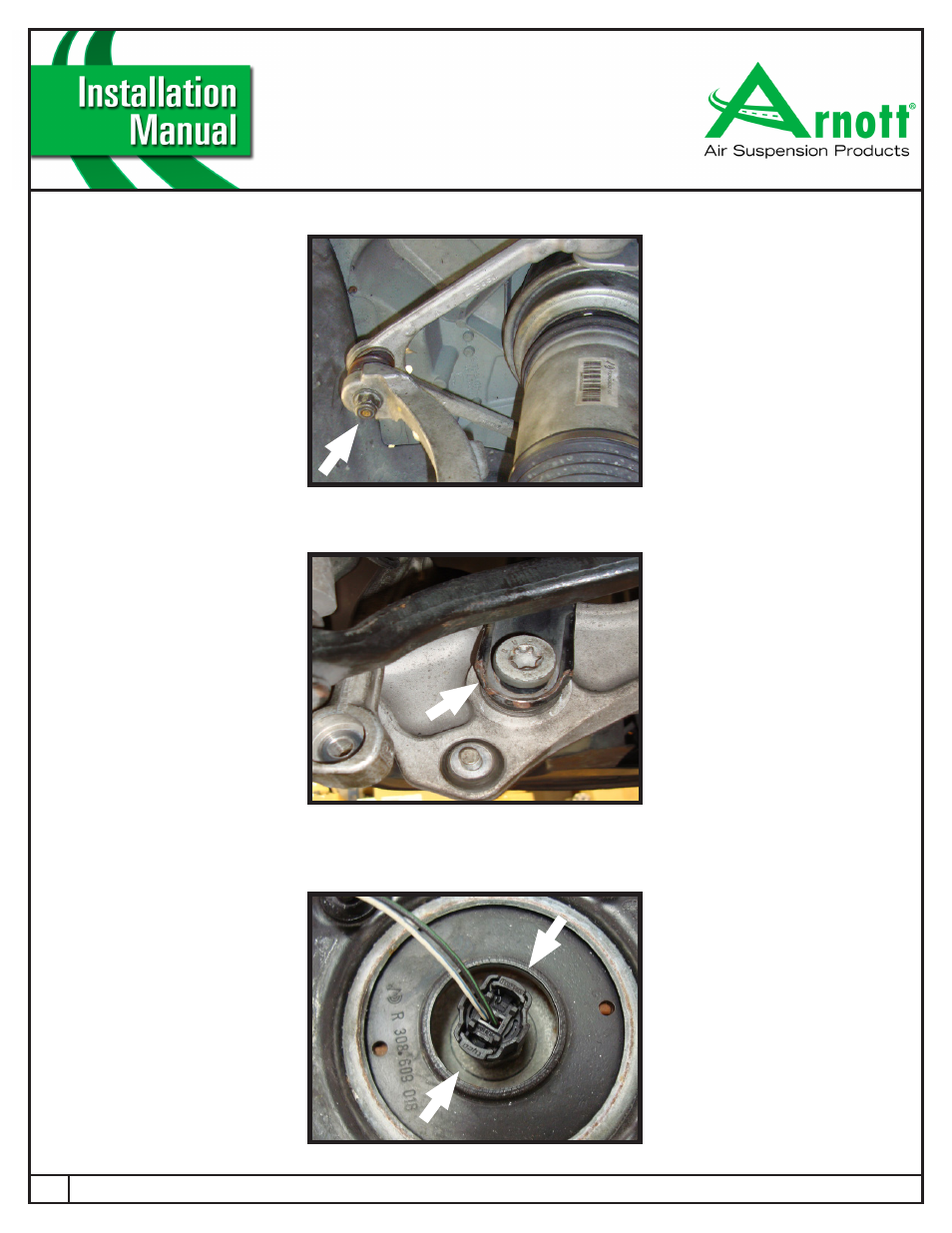

REMOVE THE UPPER A-ARM BALL JOINT NUT AND SEPARATE THE UPPER A-ARM BALL JOINT. (FIGURE B)
6.
REMOVE THE LOWER SHOCK MOUNT NUT/BOLT. (FIGURE C)
7.
DISCONNECT THE ELECTRICAL CONNECTOR FROM THE TOP OF THE SHOCK (PUSH ON THE SIDES OF THE
CONNECTOR TO RELEASE). (FIGURE D)
FIGURE B
FIGURE C
FIGURE D
