Air Suspension P-2500 User Manual
Page 5
5
P-2500 REV 2 5/24/2013
4. Remove the three (3) screws securing the compressor to the mounting bracket. (This
bracket is to be reused on the replacement compressor) (Figure E).

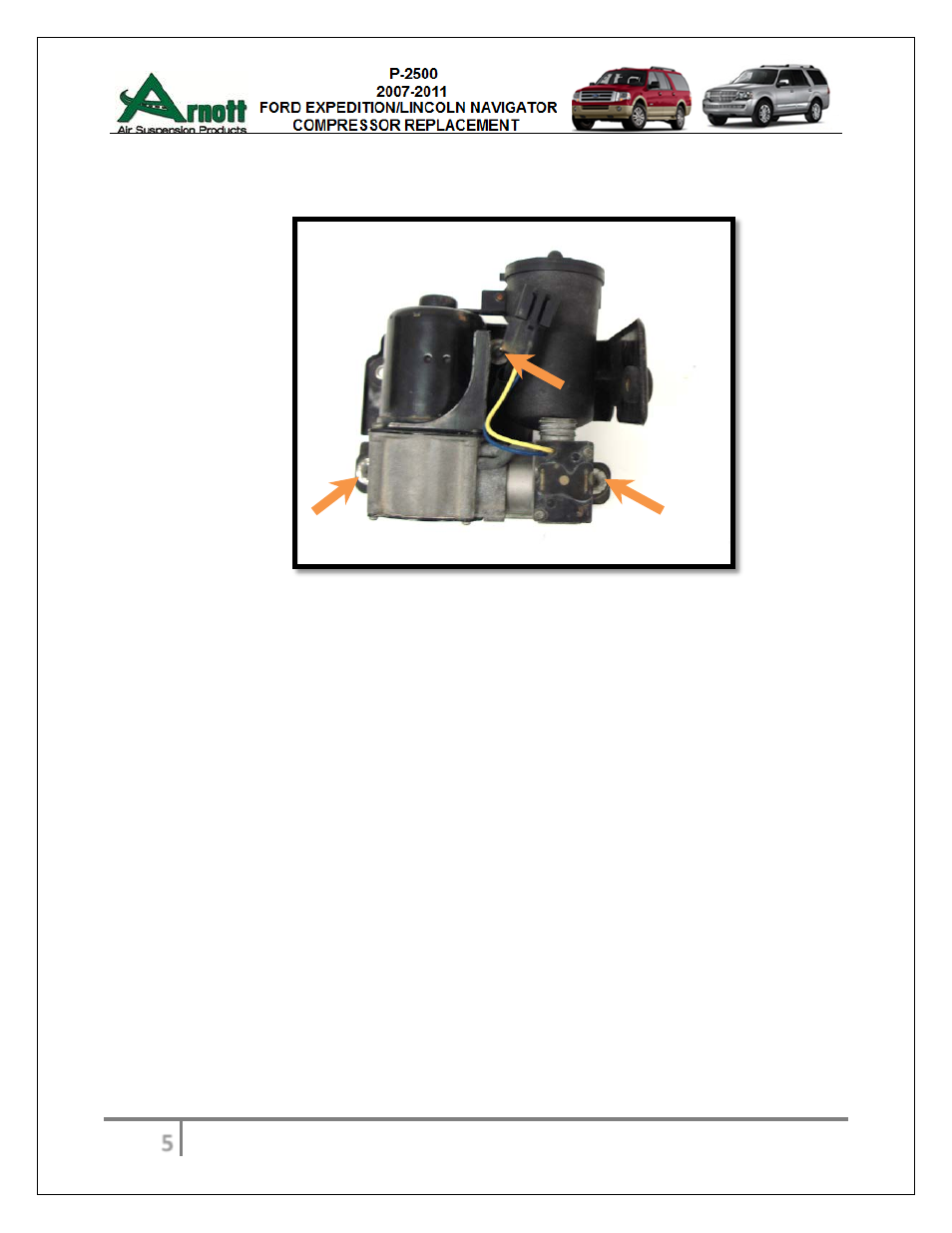

Figure E
5. Compressor removal complete. Reinstall new compressor in the reverse order of removal.
NOTE: When installing the air tube, push tubing into fitting until it bottoms out.
