ARNOTT AIR SUSPENSION COMPRESSOR
FOR
1997-2006
FORD EXPEDITION/LINCOLN NAVIGATOR
PRE-ASSEMBLY OF THE AIR SUSPENSION COMPRESSOR
1.
REMOVE THE OLD COMPRESSOR FROM THE BLACK FACTORY MOUNTING BRACKET.
2.
INSTALL THE FACTORY MOUNTING BRACKET ONTO THE NEW COMPRESSOR ASSEMBLY. YOU WILL RE-USE
THE ORIGINAL BOLTS AND WASHERS REMOVED FROM THE BRACKET. MAKE SURE TO INSTALL THE
FACTORY BRACKET IN THE CORRECT ORIENTATION. (FIGURE A)

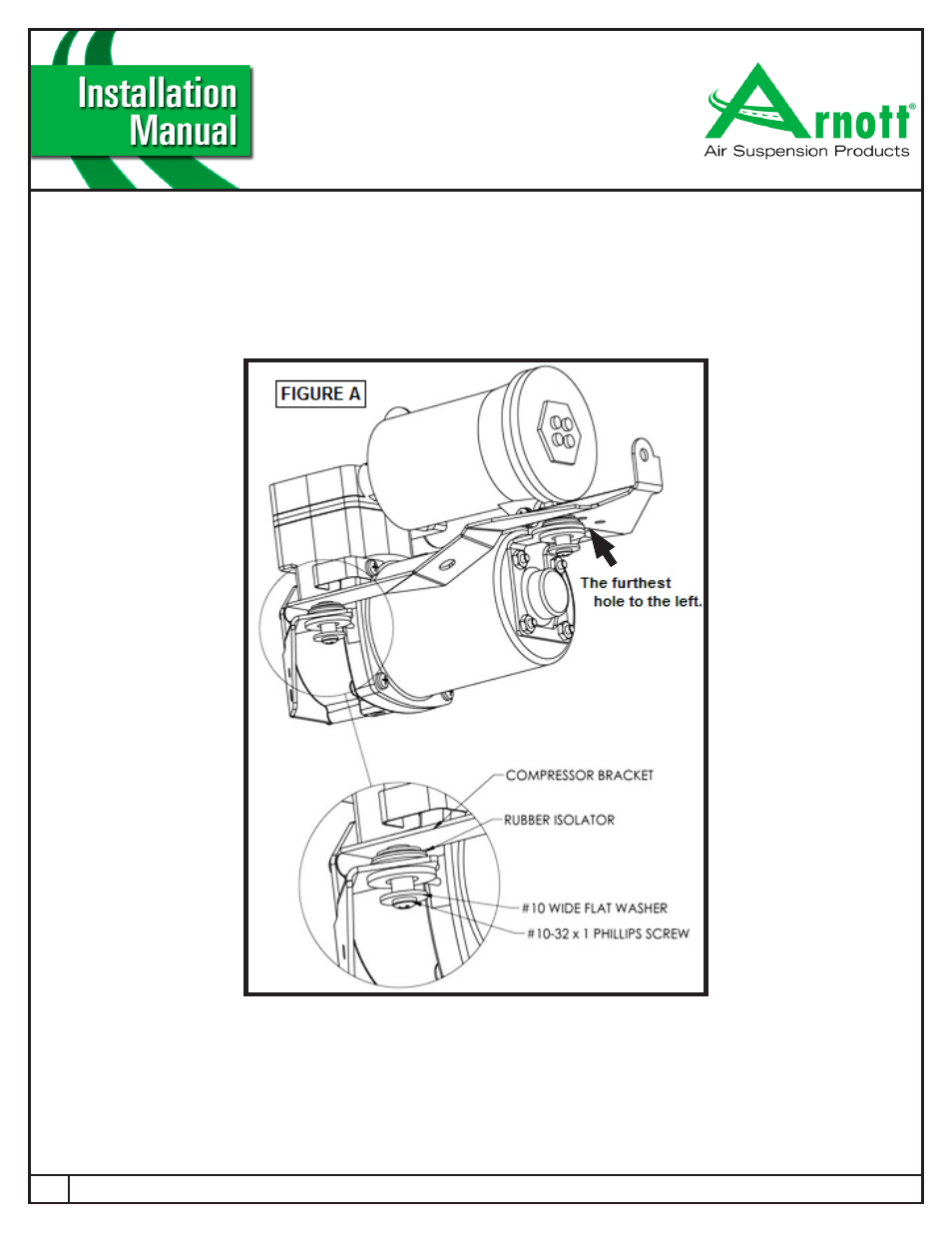

FIGURE A
