2 C-2532RR REV 2 3/13/13
*Removal and installation is only to be performed by fully qualified personnel.
*CAUTION: Damage to the vehicle and shock assembly can be incurred if work is
carried out in a manner other than specified in the instructions or in a different sequence.

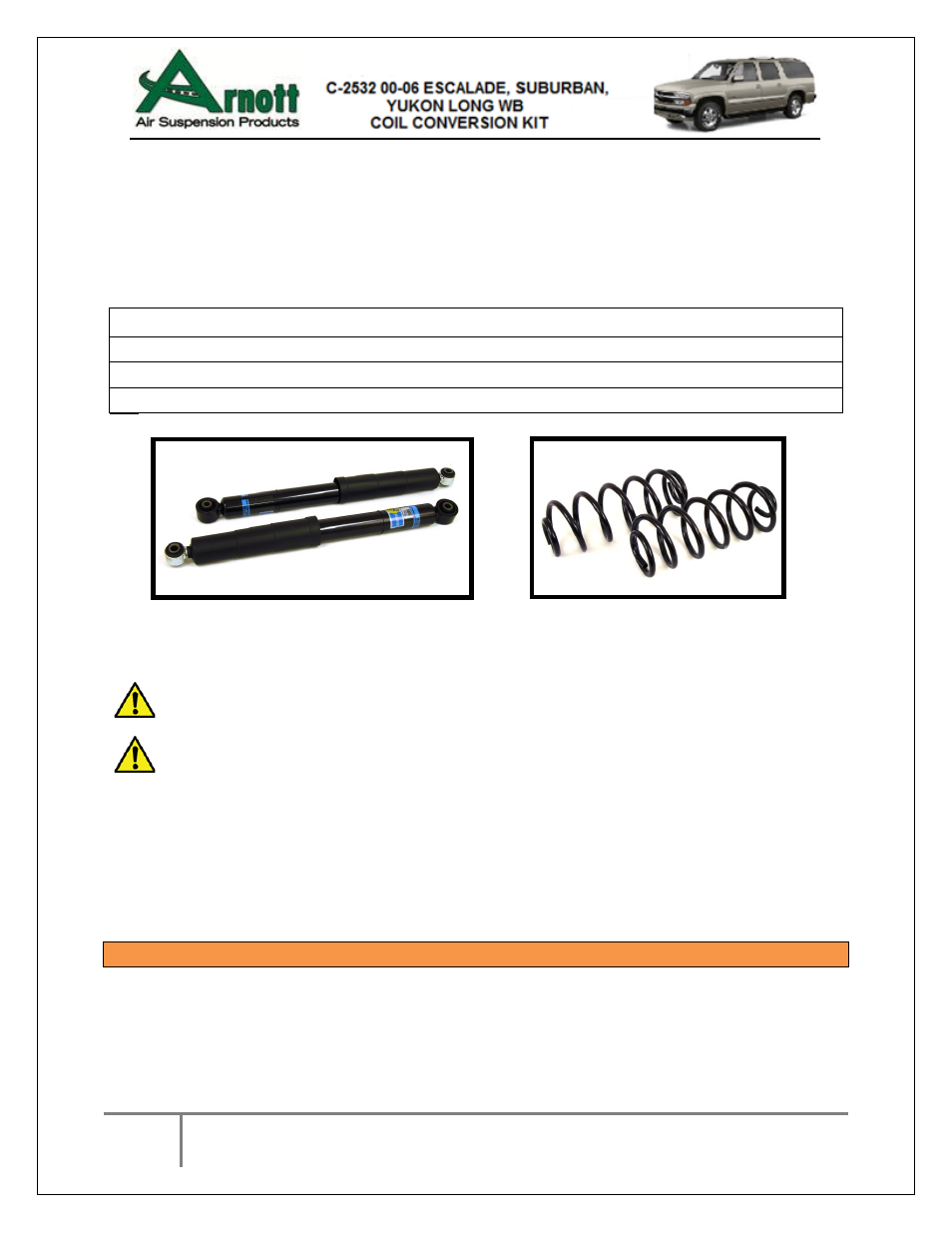

COIL SPRING AND REAR SHOCK ABSORBER REMOVAL/INSTALLATION:
Kit Contains:
PARTS LIST
P/N QTY DESCRIPTION
21-5126 2 REAR AIR SHOCK
29-5072 2 REAR COIL SPRINGS
21-5126 29-5072
Air Shock Removal/Installation:
The ignition must remain switched off during the shock removal and replacement.
Use lifting platform (hoist) that is capable of raising the body separately from the
wheels, lift body at the lifting points prescribed by the vehicle manufacturer.
Vehicle slippage can cause danger to life and limb.
1.0
Raise vehicle.
2.0
Remove rear tires.
NOTE:
Refer to Figure B for steps 3.0- 9.0 (air shock removal and installation).
3.0
Disconnect the shock sensor connector at the top of the shock (1) (Removal
only.
4.0
Disconnect the air line
by turning clip 90 ̊. Locate and disconnect ride height
sensor.
