ASUS RS700DA-E6/PS4, RS704DA-E6/PS4

1-9

1.7.3

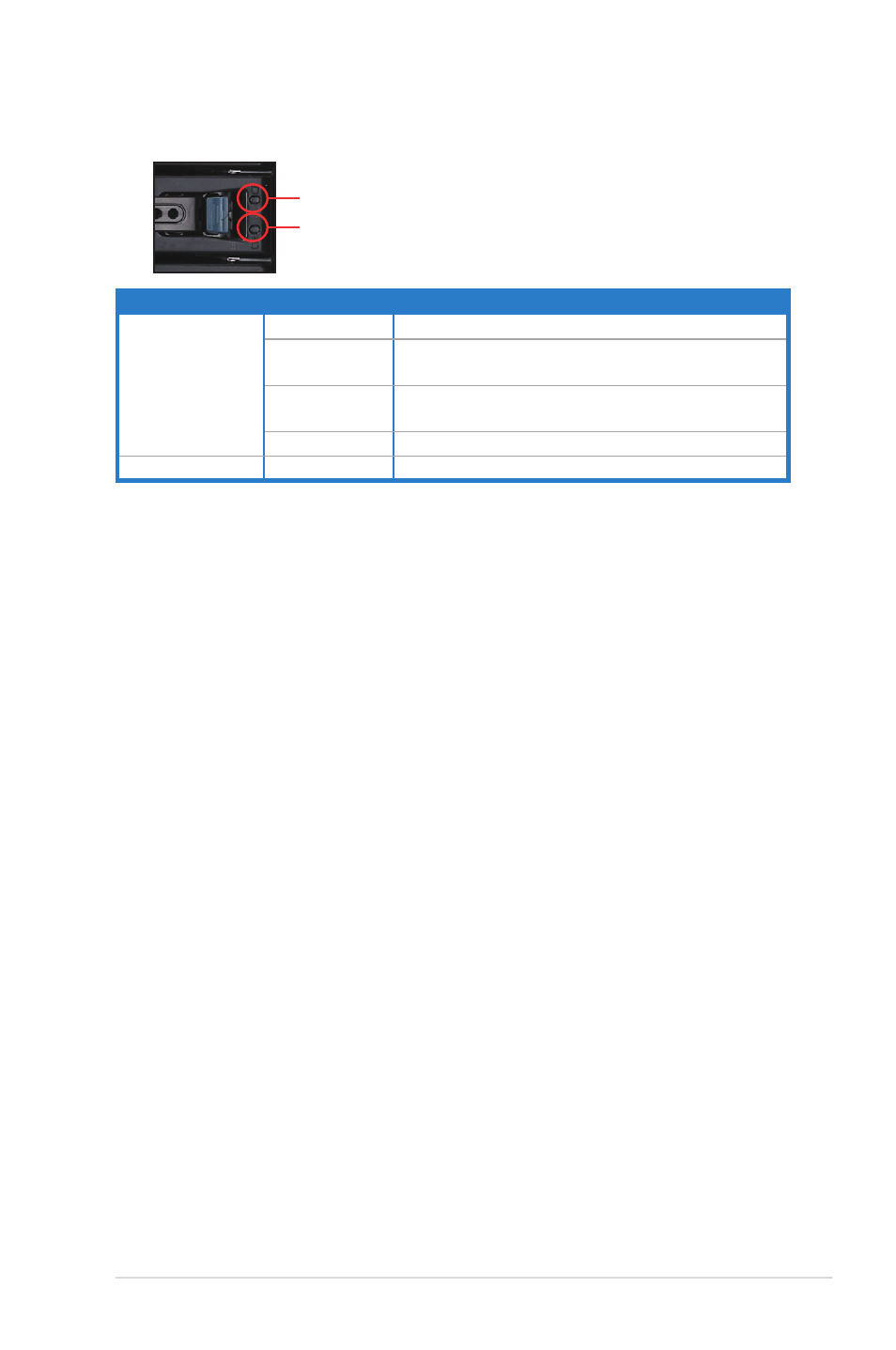

HDD status LED

LED

LED Status

Description

HDD Power / Fail

Status LED

Green Light ON Power ON (Detection HDD Present)
Red Light ON

RAID HDD Failed (HDD plug-in ready but detection

error)

Green / Red

Blinking

RAID Rebuilding

OFF

HDD Not Found

HDD Activity LED Green Blinking Data Read / Write to HDD

HDD Power / Fail Status LED (Green/Red)
HDD Activity LED (Green)
