2-9 ASUS RS700-X7/PS4
2.3 System memory
2.3.1 Overview
The motherboard comes with eight (for CPU1) and four (for CPU2) Double Data
Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets.

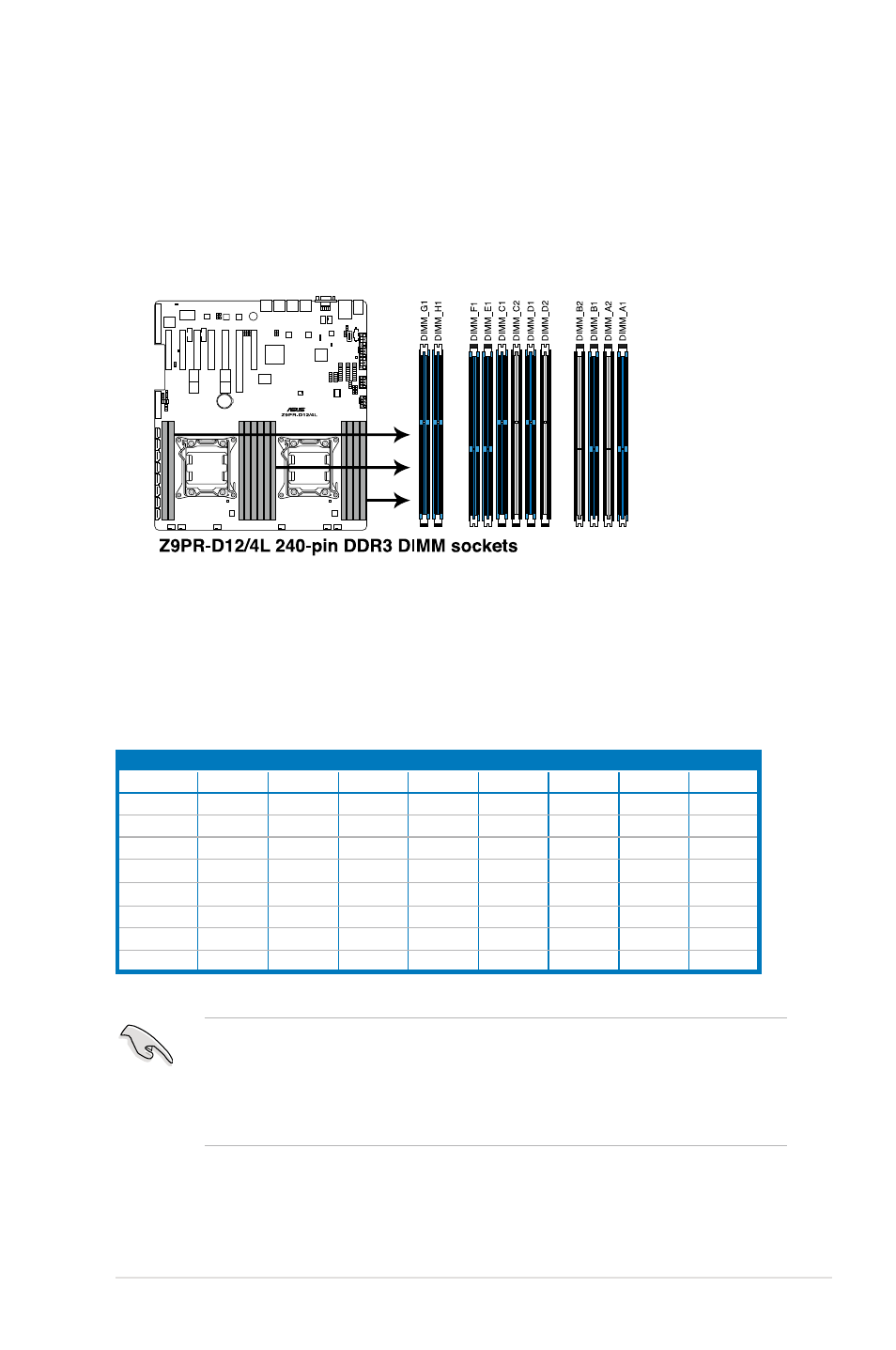

The figure illustrates the location of the DDR3 DIMM sockets:
2.3.2 Memory Configurations
You may install 1GB, 2GB, 4GB, 8GB, 16GB and 32GB* RDIMMs or 1GB, 2GB, 4GB
and 8GB* UDIMMs or 8GB, 16GB and 32GB* LR-DIMMs into the DIMM sockets using
the memory configurations in this section.
• *Refer to ASUS Server AVL for latest update.
• Start installing the DIMMs from slot A1 and C1 (light blue).
• Always install DIMMs with the same CAS latency. For optimum compatibility,
it is recommended that you obtain memory modules from the same vendor.
1 CPU Configuration (must on CPU1)
A1 A2 B1 B2 C1 C2 D1 D2
1 DIMMs •
2 DIMMs • •
3 DIMMs • • •
4 DIMMs • • • •
5 DIMMs • • • • •
6 DIMMs • • • • • •
7 DIMMs • • • • • • •
8 DIMMs • • • • • • • •
