65
4.3 WAN
4.3.1 Internet Connection

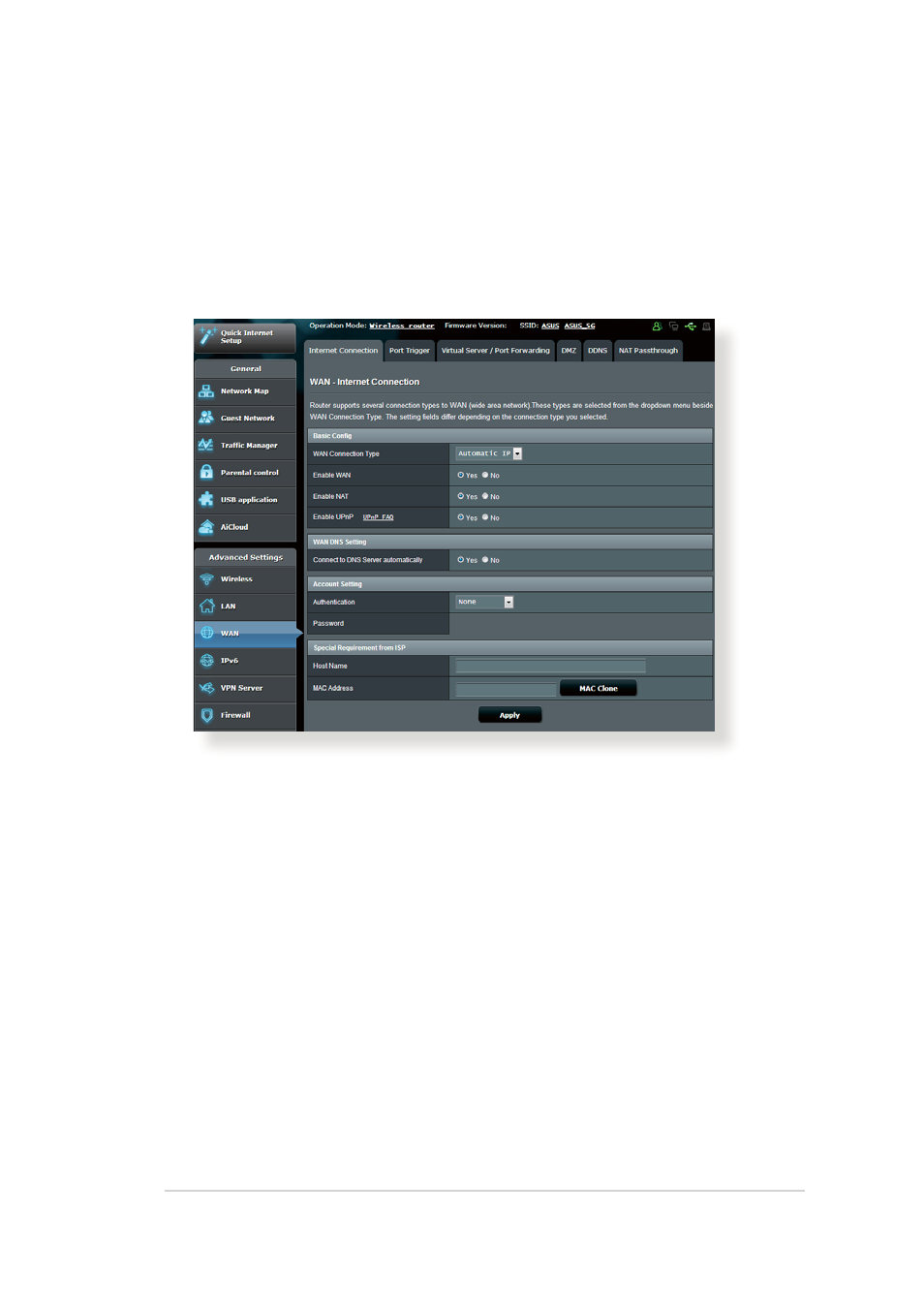

The Internet Connection screen allows you to configure the
settings of various WAN connection types.
To configure the WAN connection settings:
1. From the navigation panel, go to Advanced Settings > WAN >
Internet Connection tab.
2. Configure the following settings below. When done, click
Apply.
WAN Connection Type: Choose your Internet Service
Provider type. The choices are Automatic IP, PPPoE, PPTP,
L2TP or fixed IP. Consult your ISP if the router is unable
to obtain a valid IP address or if you are unsure the WAN
connection type.
Enable WAN: Select Yes to allow the router Internet access.
Select No to disable Internet access.
•
•
