2-26
Chapter 2: Hardware information
2.8
Connectors
2.8.1

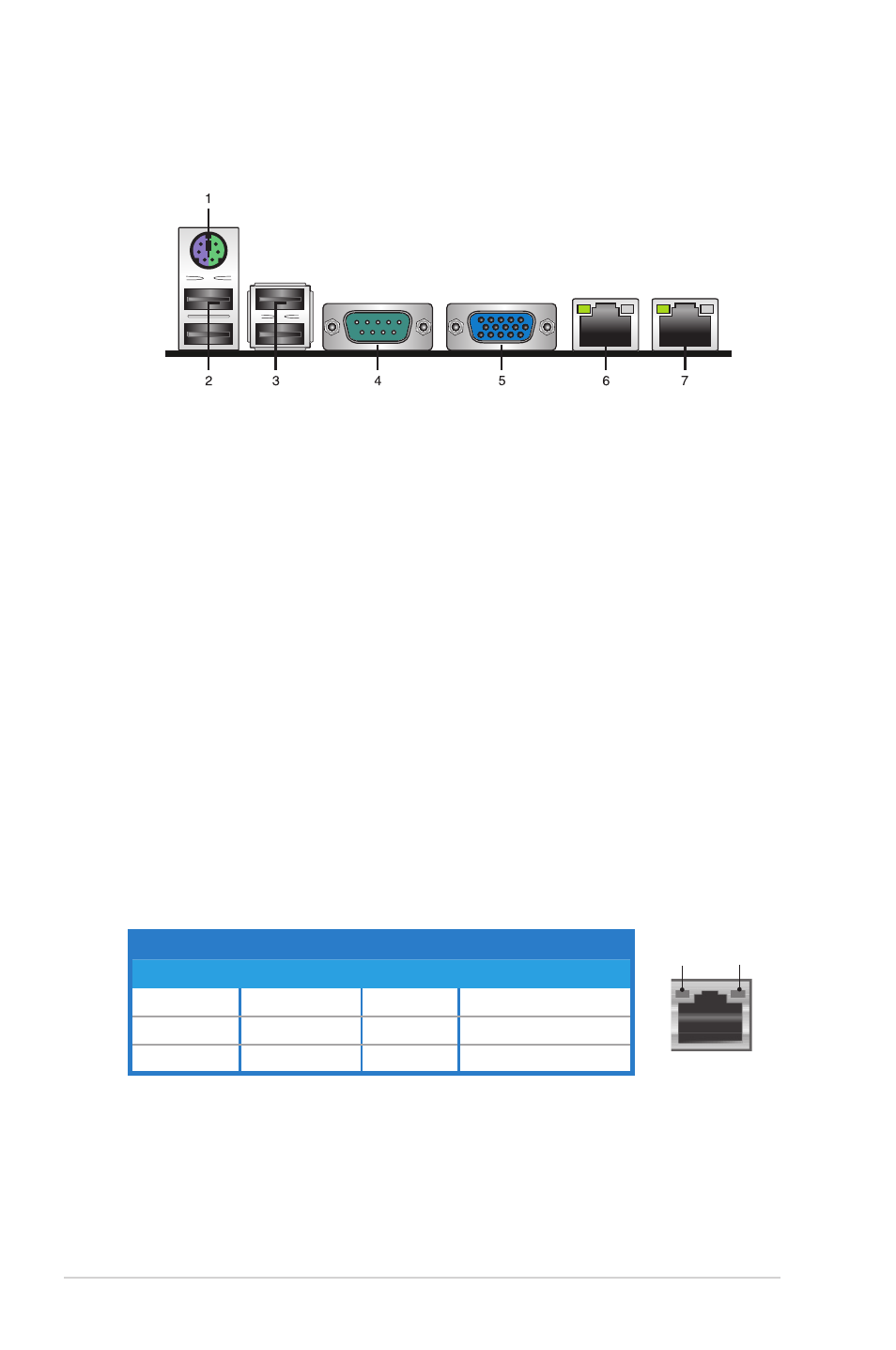

Rear panel connectors
1. PS/2 keyboard/mouse port. This port is for a PS/2 keyboard and mouse.
2. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
3. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
4. COM port.
5. Video Graphics Adapter port. This port is for a VGA monitor or other VGA-
compatible devices.
6. LAN 1 (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
7. LAN 2 (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED
Speed LED
Status
Description
Status
Description
OFF
No link
OFF
10 Mbps connection
Green
Linked
Orange
100 Mbps connection
Blinking
Data activity
Green
1 Gbps connection
