10 ASUS Essentio Desktop PC

English

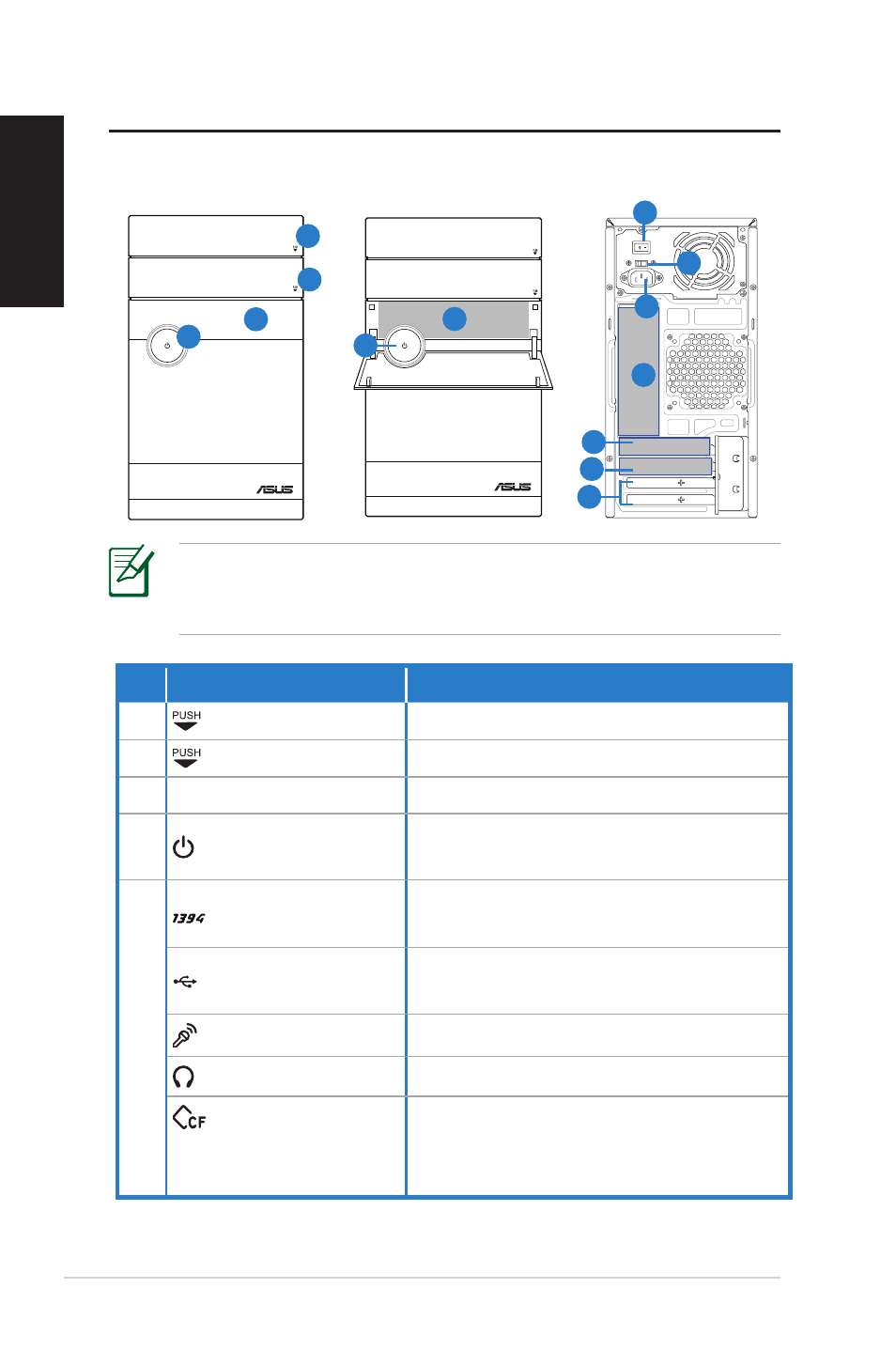

Knowing your Desktop PC

Front / Rear panel features

No.

Button/LED

Description

1.

Push to eject the optical disk drive.

2.

Push to open the HDD bay cover.

.

Front panel cover Pull to open the front panel cover.

4.

Power button

Press this button to turn the system
on.

5.

IEEE 194a port

Connects to an IEEE 194 device
such as a digital camrecorder.

2.0

USB 2.0 ports

Connects to USB devices such as a
mouse or keyboard.

Microphone port Connects to a microphone.

Headphone port Connects to a headphone.

CompactFlash®/

Microdrive™
card slot

Insert a CompactFlash®/
Microdrive™ card into this slot.

* The gray areas contain front/rear panel ports. These ports
and their locations may vary, depending on the model of your
system.

4

1

4

5

SPDIF OU

T

DVI

HDMI

7

2

6

3

11

9

10

12

8
