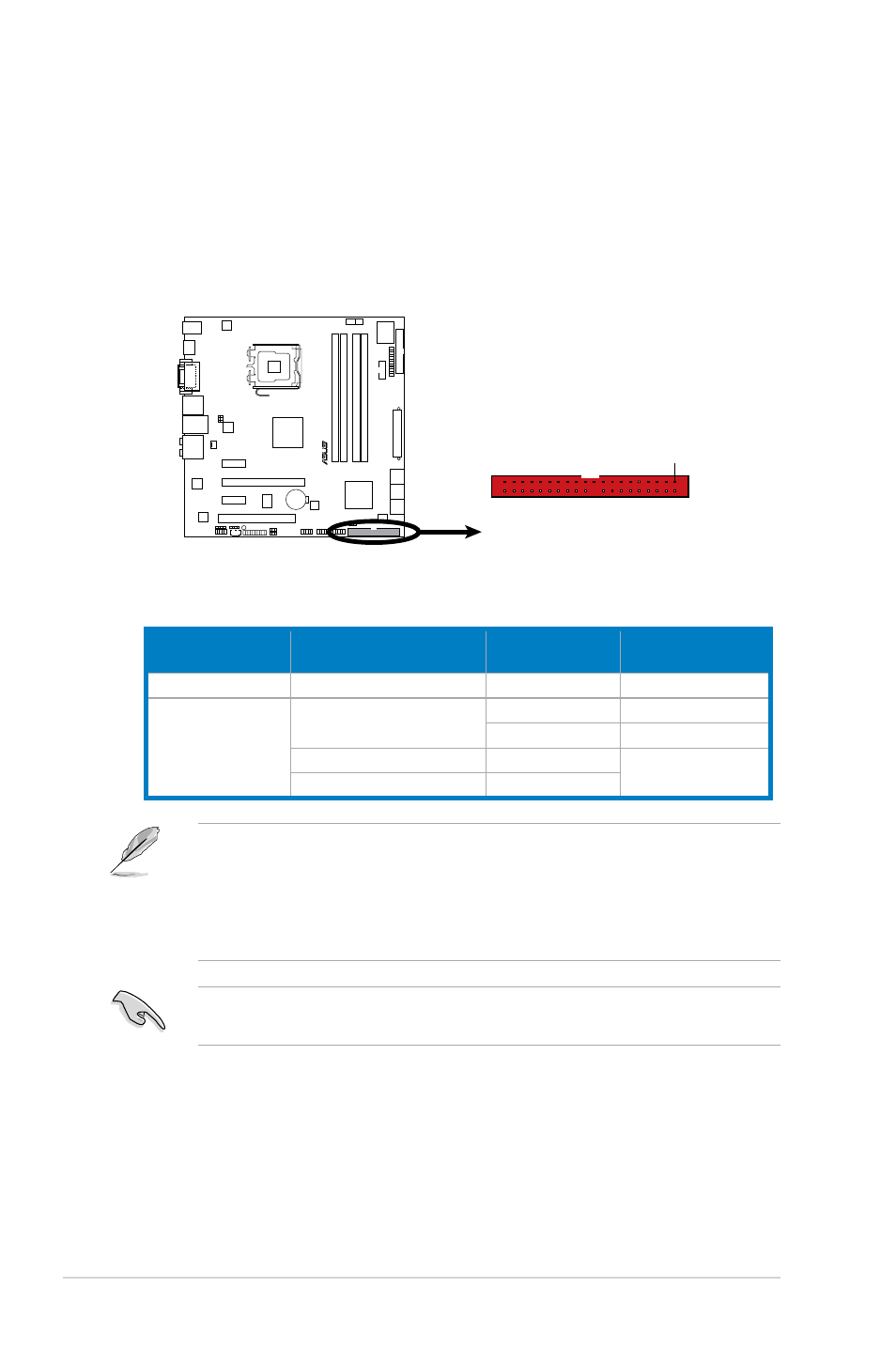

4-6 Chapter 4: Motherboard info
2.. IDE.connector.(40-1.pin.PRI_IDE)
The onboard IDE connector is for Ultra DMA 133 / 100 / 66 / 33 signal cable.
There are three connectors on each Ultra DMA 100/66/33 signal cable:
blue, black, and gray. Connect the blue connector to the motherboard’s IDE
connector, then select one of the following modes to configure your device(s).
• Pin 20 on the IDE connector is removed to match the covered hole on the
Ultra DMA cable connector. This prevents incorrect insertion when you
connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133 / 100 / 66 / 33 IDE
devices.
If any device jumper is set as “Cable-Select,” ensure that all other device
jumpers have the same setting.
Drive.jumper.setting Mode.of.
device(s)
Cable.connector
Single device Cable-Select or Master - Black
Two devices Cable-Select Master
Black
Slave Gray
Master Master Black or gray
Slave Slave
P5QL-EM.IDE.Connector.
P5QL-EM
R
NOTE: Orient the red markings
(usually zigzag) on the ID
ribbon cable to PIN 1.
PRI_EIDE
PIN1
