21
Knowing the Parts
2

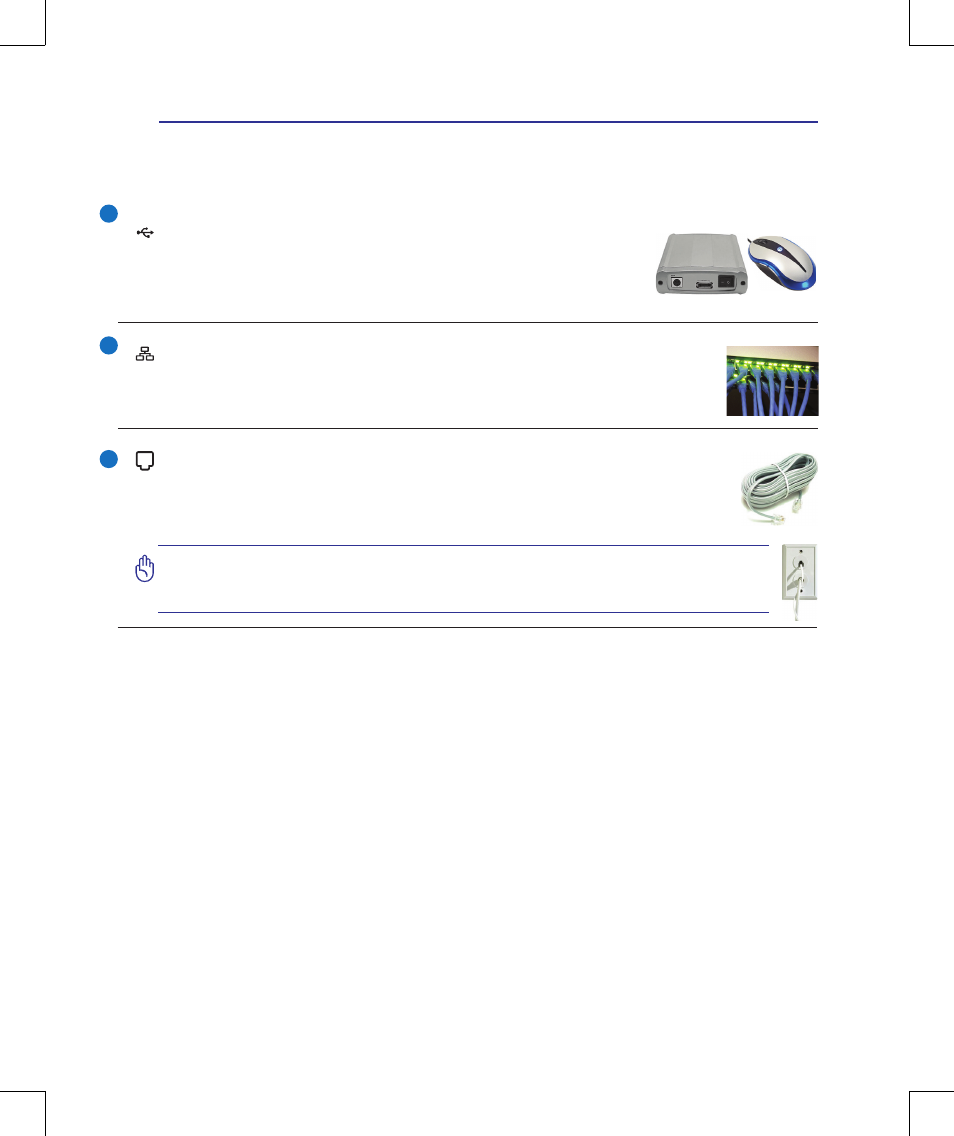

Modem Port (on selected models)
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports
a standard telephone cable. The internal modem supports up to 56K V.90 transfers. The
built-in connector allows convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital
phone systems. Do not connect the modem port to a digital phone system or
else damage will occur to the Notebook PC.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a
standard Ethernet cable for connection to a local network. The built-in connector allows
convenient use without additional adapters.
8
7
2.0
E-SATA & USB (2.0/1.1) Combo Port (on selected models)
External SATA or eSATA allows external connection of Serial-ATA devices
originally designed for use inside the computer. It is up to six times faster than
existing USB 2.0, & 1394 for external storage solutions and is also hot plug-
gable using shielded cables and connectors up to two meters. (See “USB Port”
on other sides for description.)
E-SATA
