Chapter 1: Product introduction

1.5

Card installation

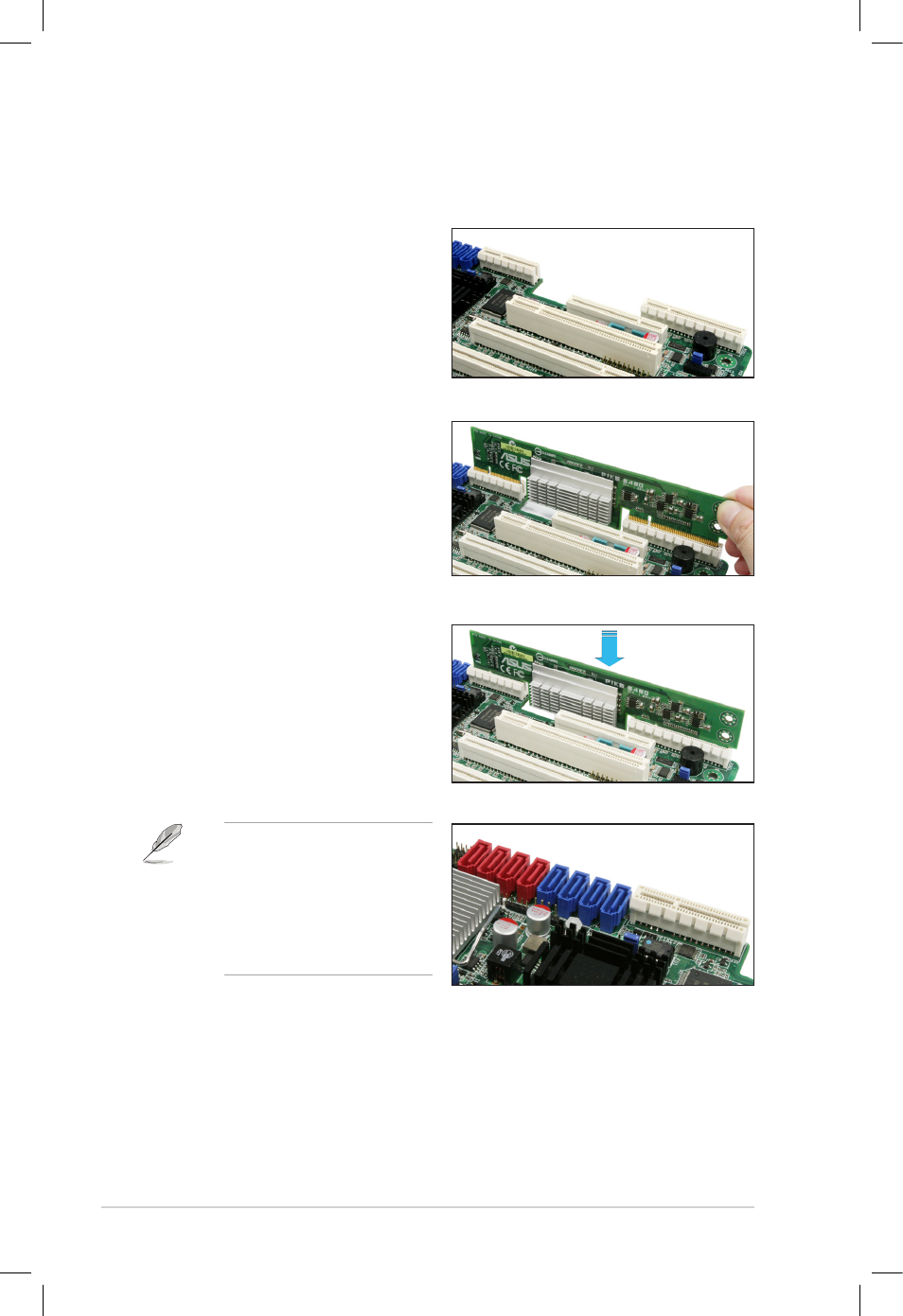

Follow below instructions to install the RAID card on your motherboard.

1. Locate the PIKE RAID card slot

on the motherboard.

2. Align the golden fingers of the

RAID card with the PIKE RAID

card slot.

3. Insert the RAID card into the

PIKE RAID card slot. Ensure it’s

completely inserted into the PIKE

RAID card slot.

Connect the SAS hard disk

drives to SAS connectors

1-4 (red) on the motherboard

when using four ports. The

SAS connectors 5-8 (blue)

function when using eight

ports.
