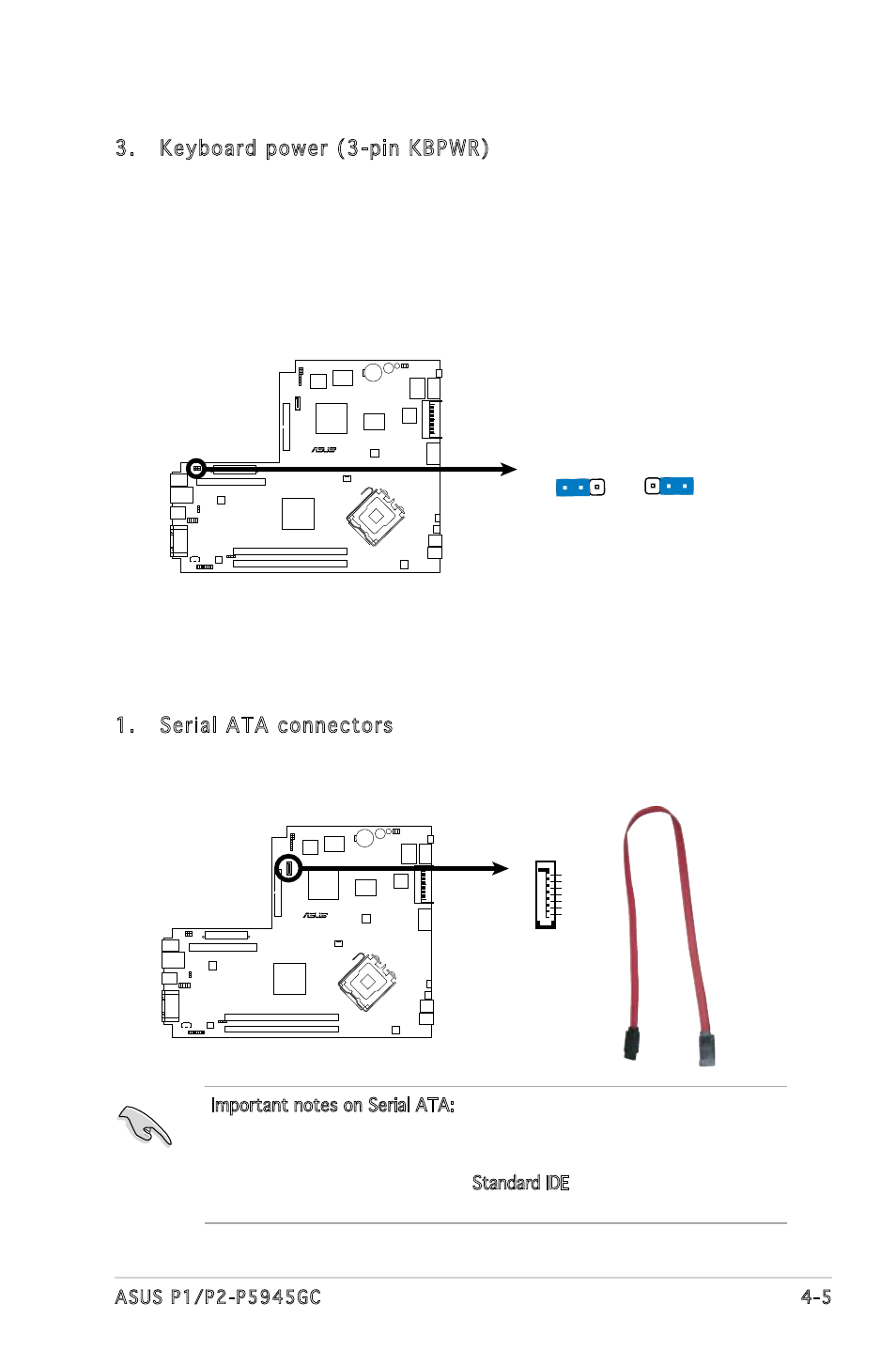

4-5 ASUS P1/P2-P5945GC
3. Keyboard power (3-pin KBPWR)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) if you wish to wake up
the computer when you press a key on the keyboard (the default is
the Space Bar). This feature requires an ATX power supply that can
supply at least 1A on the +5VSB lead, and a corresponding setting in
the BIOS.
R
Keyboard Power Setting
KBPWR
3 2 2 1
+5V
(Default)
+5VSB
4.4 Connectors
1. Serial ATA connectors
The connector is for the Serial ATA signal cables for Serial ATA hard
disk drives.
Important notes on Serial ATA:
• You must install Windows
® 2000 Service Pack 4 or the Windows ® XP
Service Pack1 before using Serial ATA hard disk drives.
• When using the connectors in Standard IDE mode, connect the primary
(boot) hard disk drive to the SATA1 connector.
R
SATA Connectors
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA1
