4 power supply unit – Asus T3-P5945GC User Manual
Page 20

2-4
Chapter 2: Basic installation
2.4
Power supply unit
You need to turn over the power supply unit (PSU) section on the side
before you can install a central processing unit (CPU) and other system
components.
To turn over the PSU:
When removing the PSU, make sure to hold or support it firmly. The unit
may accidentally drop and damage other system components.

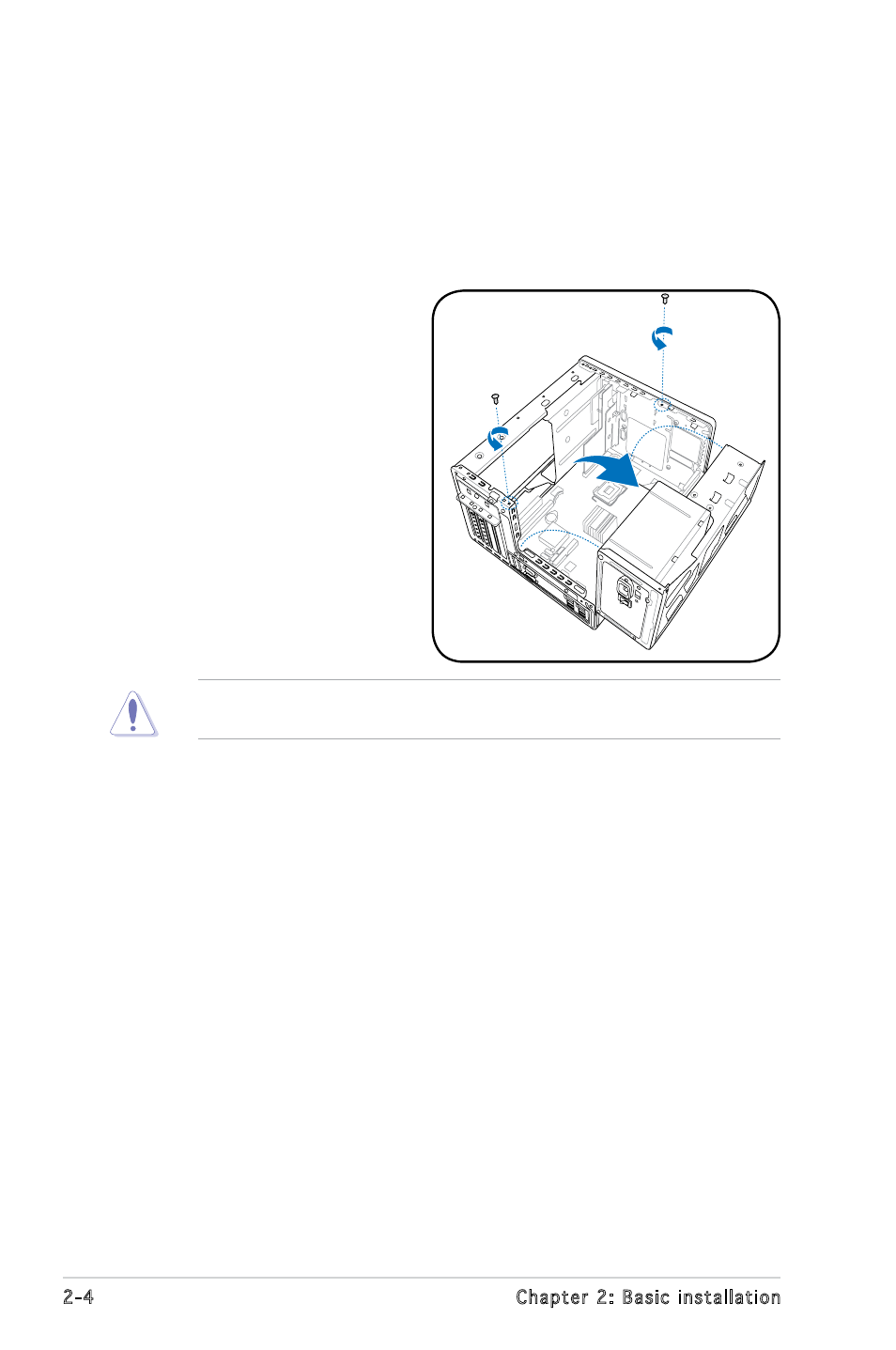

1. Lay the system chassis on
its side on a flat and stable
surface.
2. Locate and remove the two
screws that secures the PSU
to the chassis.
3. Lift the PSU in the direction of
the arrow to a 90º angle.
