Quick Setup Guide 5
English

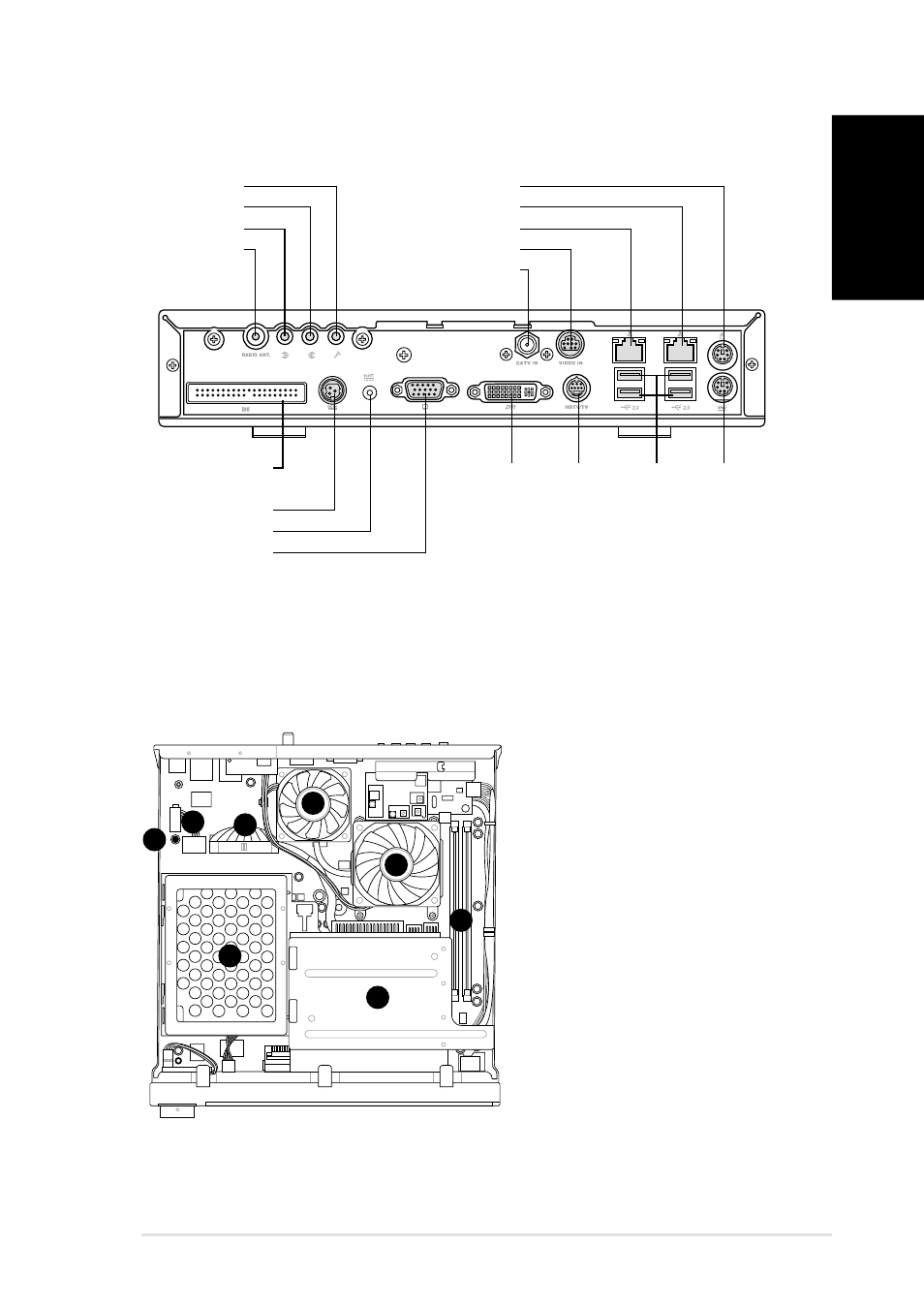

Rear panel
1. Standby power LED
2. HDD power plug
(to HDD power connector)
3. IDE cable (to HDD connector)
4. Chassis fan
5. CPU fan
6. DIMM sockets
7. HDD metal tray
8. Optical drive drive shield
Internal components
Mic jack
Line Out jack
Line In jack
Antenna jack
PS/2 mouse port
Gigabit LAN port
Ethernet LAN port
Video In port
Cable TV connector
Secondary IDE
connector
DC In socket
DC Out socket
VGA port
DVI port
HDTV/TV port
USB ports
PS/2 keyboard port
1
2 3
4
5
6
7
8
