3-3 ASUS LCD Monitor VN247 Series
• In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-
configurable; the adjusting range is from 0 ~ 100.
3. Image
You can adjust the image Sharpness, Trace Free(only for VN247H ),
Aspect Control, ASCR, Position (VGA only), and Focus (VGA only)
from this main function.

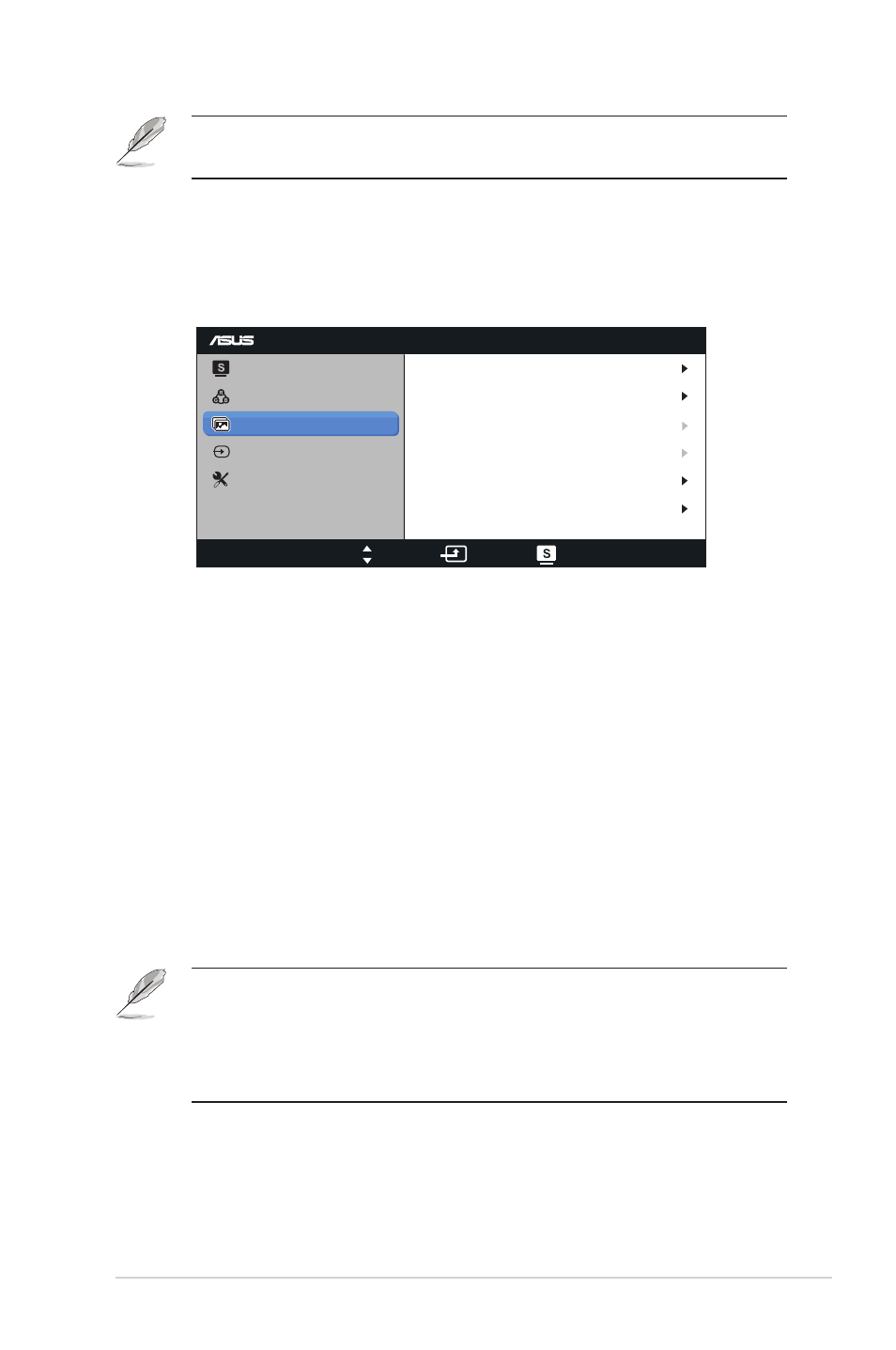

VN247
Splendid
Color
Input Select
Move Menu Exit
System Setup
Focus
Sharpness
Trace Free
ASCR
40
60
Position
OFF
Aspect Control Full
• Sharpness: Adjusts the picture sharpness. The adjusting range is from
0 to 100.
• Trace Free: Speeds up the response time by Over Drive technology. The
adjusting range is from lower 0 to faster 100. (only for VN247H)
• Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”,“Overscan”.
(Overscan is available only for VN247H HDMI source)
• ASCR: Select ON or OFF to enable or disable dynamic contrast ratio
function.
• Position: Adjusts the horizontal position (H-Position) and the vertical
position ( V-Position) of the image. The adjusting range is from 0 to 100
(Only available for VGA input).
• Focus: Reduces Horizonal-line noise and Vertical-line noise of the image
by adjusting ( Phase) and (Clock) separately. The adjusting range is from
0 to 100 (Only available for VGA input).
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the screen shows horizontal disturbances.
• Clock (pixel frequency) controls the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the image is not proportional.
