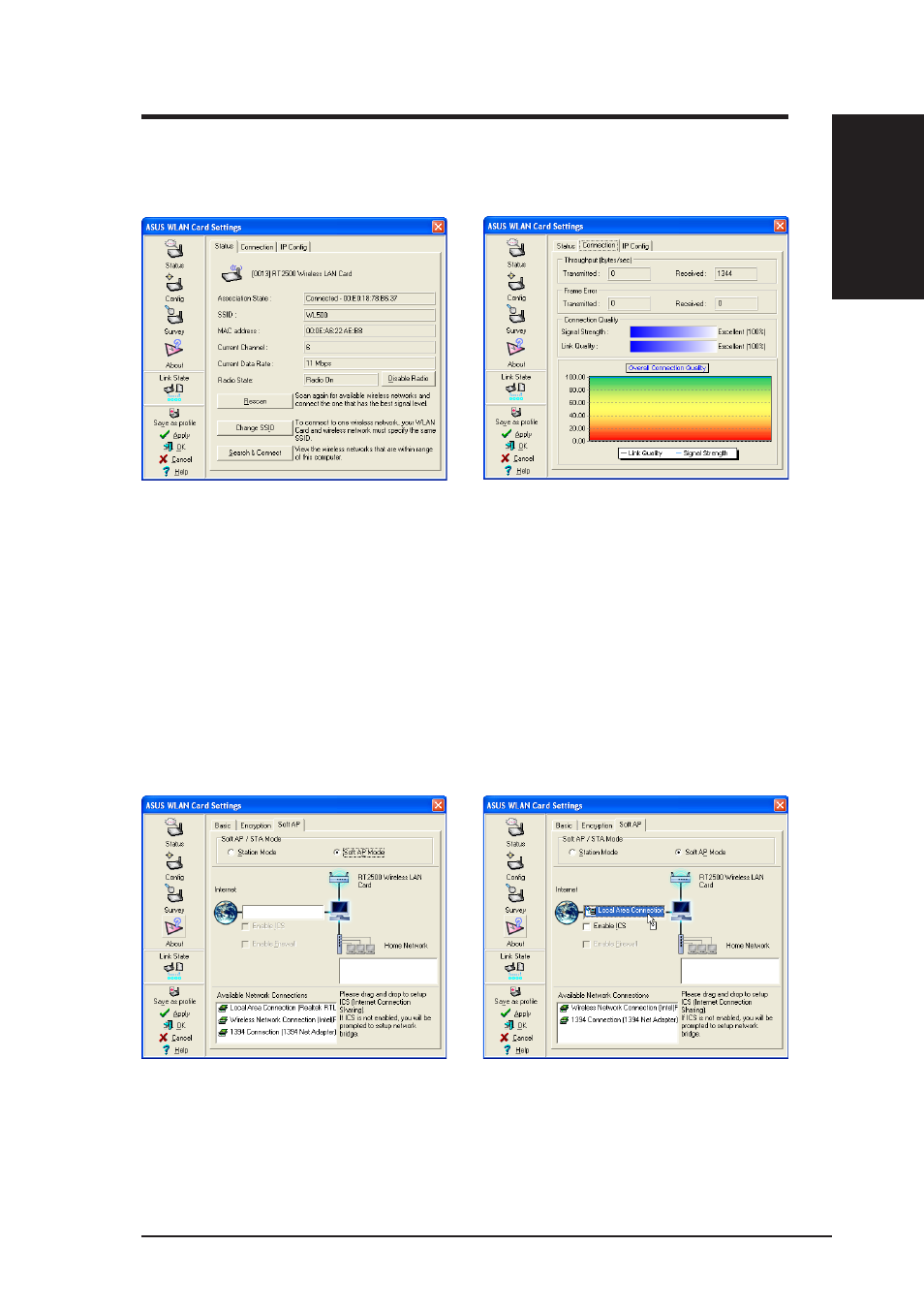

Asus WL-107 - Manual (Page 5)

5
Quick Start Guide
English
ASUS WLAN Card
6. You can also see the connection quality on
the “Connection” page. Click OK to exit the
utility.
5. Check the “Status” page to see the “Asso-
ciation State”. It should show “Connected -
xx:xx:xx:xx:xx:xx”.
Soft AP (Windows XP Only)
Soft AP mode allows the ASUS WLAN card to act as a virtual access point.
The computer needs to be connected to a wired network using an Ethernet
connection in order to provide network access to WLAN clients.
1. Select Soft AP Mode 2. Drag and drop a wired network connection
next to the globe icon.
Configuring the ASUS WLAN utility (Cont.)
