1-3
ASUS VW192 Series LCD Monitor
1.3.2

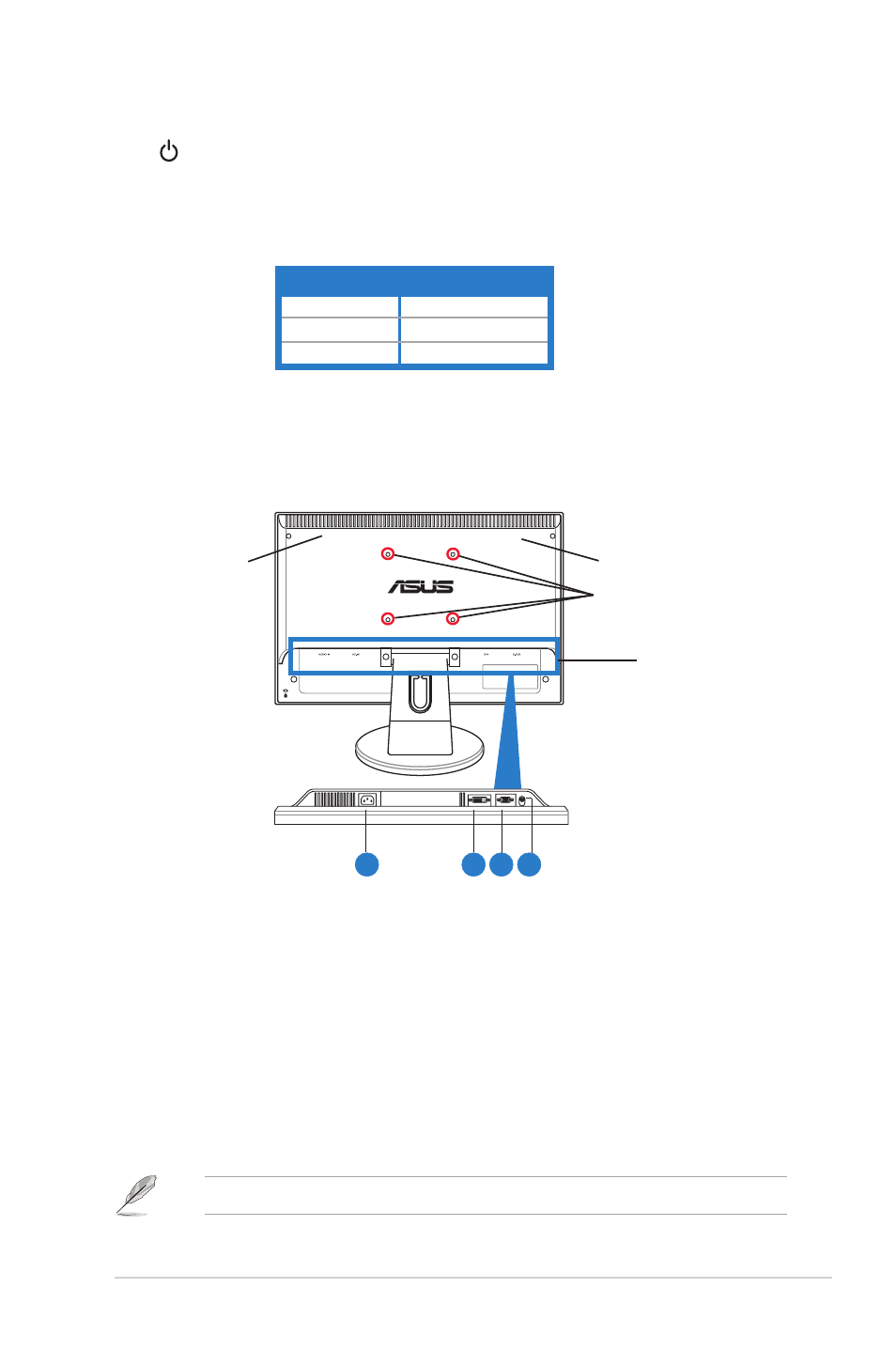

Back view
5.
Power button/power indicator
• Press this button to turn the monitor on/off
• The color definition of the power indicator is as the below table.
1.
AC-IN port. This port connects the power connector from the bundled power
cord.
2.
DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal
connection. (For Some Models)
3.
VGA port. This 15-pin port is for PC VGA connection.
4.
Audio-in port. This port connects PC audio source by the bundled audio
cable. (For Some Models)
Rear connectors
Status
Description
Blue
ON
Amber
Standby mode
OFF
OFF
Stereo
speaker
Rear connectors
Stereo
speaker
Screw holes for
VESA Wall Mount
The VESA wall mount kit (100 mm x 100 mm) is purchased separately.
