Chapter 2: Basic installation
2.7.3
Installing a hard disk drive

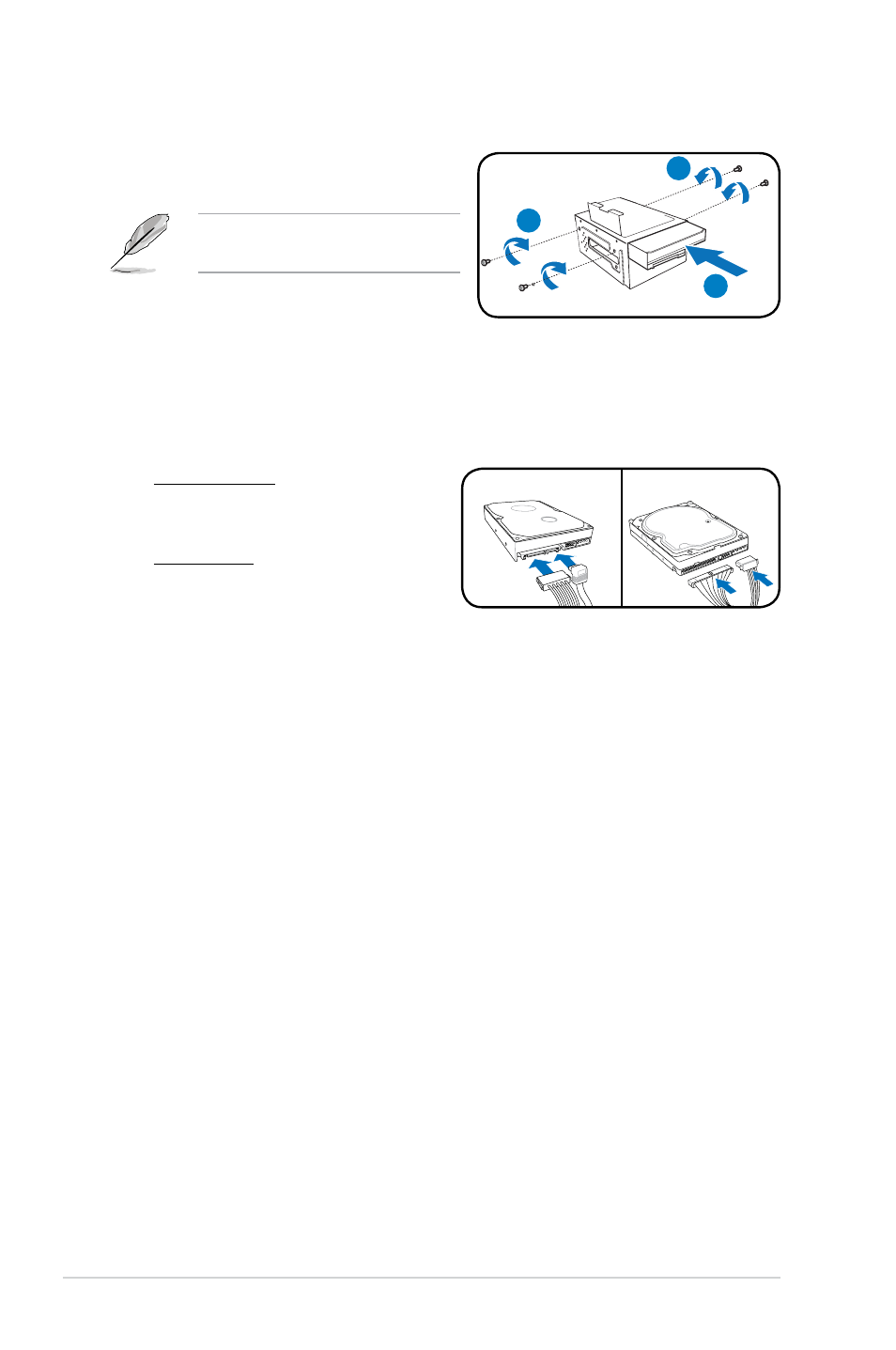

1. Remove the 3.5-inch hard drive holder
out of the chassis.
2
3
3
2. Insert the hard disk drive to the 3.5-inch hard drive holder, then carefully push
the drive until its screw holes align with the holes on the holder.
3. Secure the hard disk drive with two screws on both sides of the bay.
4. Replace the hard drive holder to the chassis and secure the screws.
The 3.5-inch hard drive holder is
optional.
For SATA HDD: Connect the SATA
signal and power plugs to the
connectors at the back of the drive.
For IDE HDD: Connect the IDE and
power plugs to the connectors at the
back of the drive.
SATA
IDE
