25
GB
• 30 mm thick: 23 mm screws
• 40 mm thick: 13 mm screws
Fix the hob as follows:
1. Use short flat-bottomed screws to fix the 4 alignment springs in
the holes provided at the central point of each side of the hob.
2. Place the hob in the cavity, make sure it is in a central position
and push down on the whole perimeter until the hob is stuck to
the supporting surface.
3. For hobs with raised sides: After inserting the hob into its
cavity, insert the 4 fixing hooks (each has its own pin) into the
lower edges of the hob, using the long pointed screws to fix them
in place, until the glass is stuck to the supporting surface.
The screws for the alignment springs must remain accessible.
In order to adhere to safety standards, the appliance must not
come into contact with electrical parts once it has been installed.
All parts which ensure the safe operation of the appliance must
not be removable without the aid of a tool.
Electrical connection
The electrical connection for the hob and for any built-in oven
must be carried out separately, both for safety purposes and to
make extracting the oven easier.

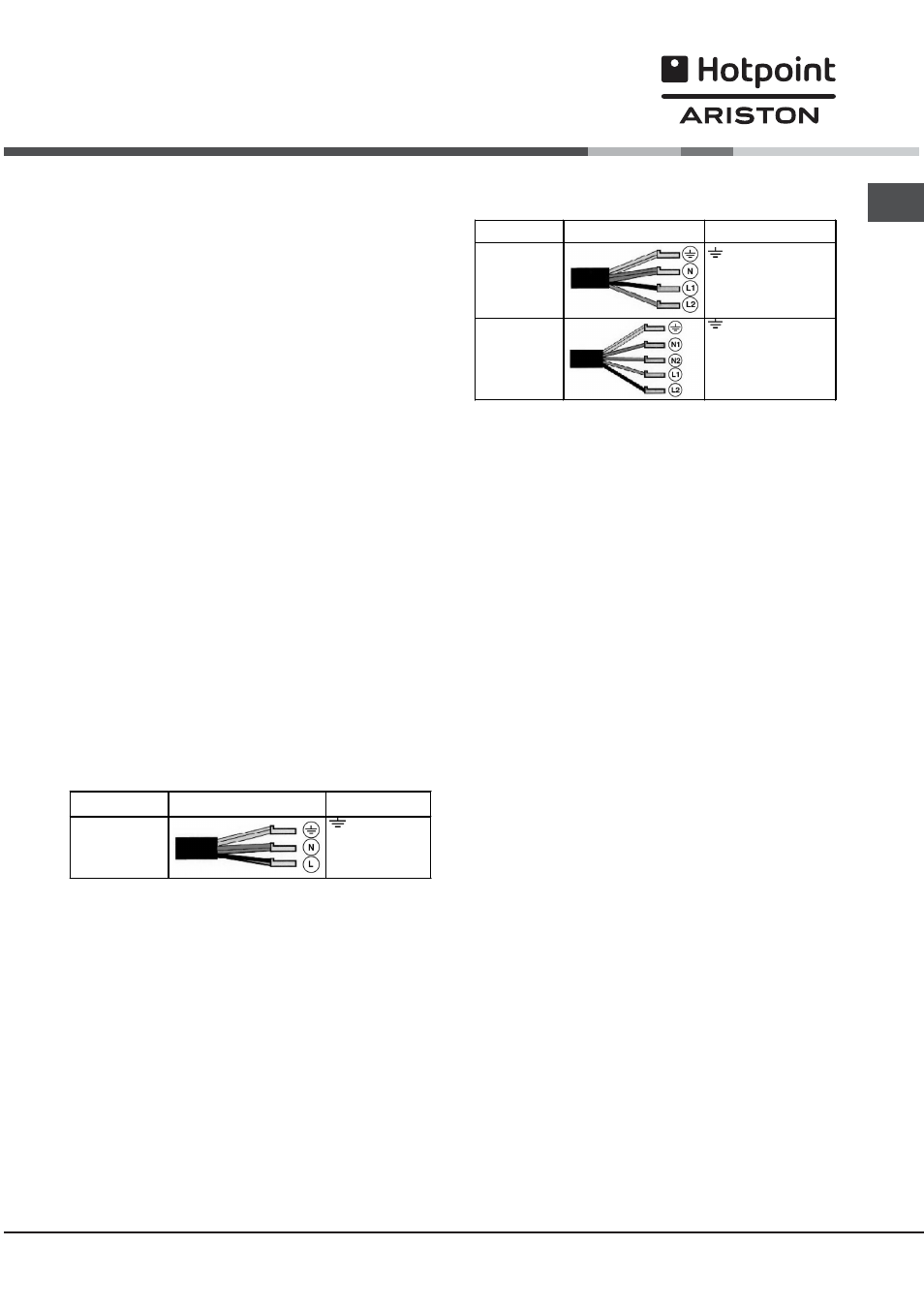

Single-phase connection
The hob is equipped with a pre-connected electricity supply
cable, which is designed for single-phase connection. Connect
the wires in accordance with the instructions given in the
following table and diagrams:
Voltage and
mains frequency
Electrical cable Wire connection
220-240V 1+N ~
50 Hz
: yellow/green;
N: the two blue wires
together
L: brown and black
together
Other types of connection
If the mains supply corresponds with one of the following:
Voltage and mains frequency
• 400V - 2+N ~ 50 Hz
• 220-240V 3 ~ 50 Hz
• 400V 3 - N ~ 50 Hz
• 400V - 2+2N ~ 50 Hz
Separate the wires and connect them in accordance with the
instructions given in the following table and diagrams:
Voltage and
mains frequency
Electrical cable Wire connection
400V - 2+N ~
50 Hz
220-240V 3 ~
50Hz
400V 3-N~ 50Hz
: yellow/green;
N: the two blue wires together
L1: black
L2: brown
400V - 2+2N ~
50 Hz
: yellow/green;
N1: blue
N2: blue
L1: black
L2: brown
Connecting the electricity supply cable to the
mains
If the appliance is being connected directly to the electricity
mains an omnipolar switch must be installed with a minimum
opening of 3 mm between contacts.
The installer must ensure that the correct electrical connection
has been made and that it is fully compliant with safety
regulations.
Before connecting the appliance to the power supply, make sure
that:
• The appliance is earthed and the plug is compliant with the
law.
• The socket can withstand the maximum power of the
appliance, which is indicated on the data plate located on the
appliance itself.
• The voltage falls within the range of values indicated on the
data plate.
• The socket is compatible with the plug of the appliance. If the
socket is incompatible with the plug, ask an authorised
technician to replace it. Do not use extension cords or multiple
sockets.
Once the appliance has been installed, the power supply cable
and the electrical socket must be easily accessible.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by
authorised technicians only.
The manufacturer declines any liability should
these safety measures not be observed.
Do not remove or replace the power supply cable for any
reason. Its removal or replacement will void the warranty and the
CE marking. INDESIT does not assume liability for accidents or
damage arising from replacement/removal of the original power
supply cable. Replacement can only be accepted when carried
out by personnel authorised by INDESIT and using an original
spare part.
