CONTROL ELEMENTS
The Control Elements are
•
IR Receiver
• Power indication light
Note:
The unit is automatically ready to work as soon as the power supply is applied.
Description of the elements:
RF IN
Aerial input jack (75Ω). It supports active antenna with 5 V DC output
RF OUT Antenna Loop Out jack
COAXIAL Digital audio coaxial output jack
TV SCART jack (TV)
POWER AC power cord
Note:
Please unplug the power cord and keep it orderly when the unit shall not be used for a long time in
case that the power cord may get scratched and thus lead to electric leak and shock.
On the right side you can find the USB
port to connect USB storages.

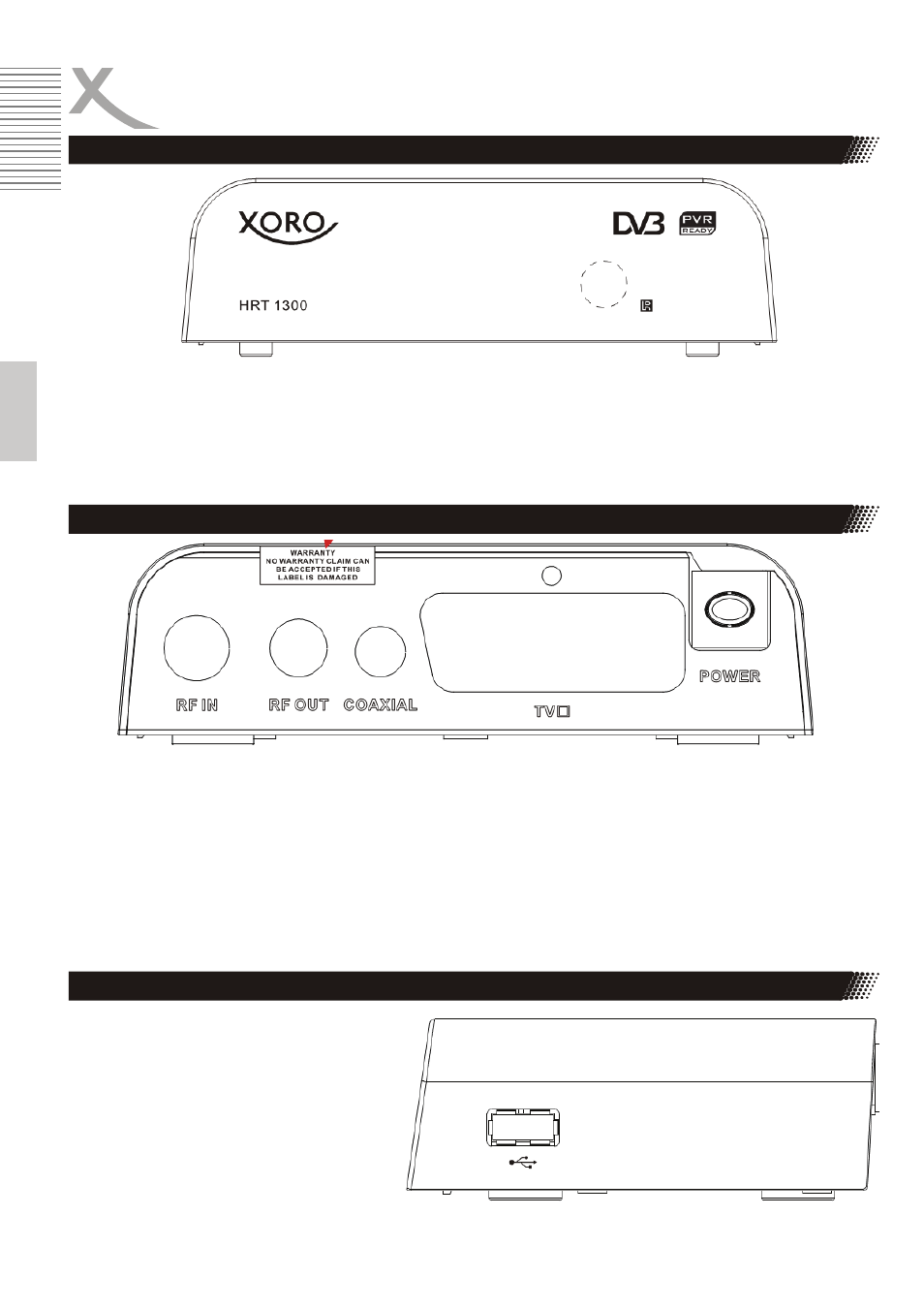

Front Panel
Rear Panel
Right Side
