Dayton Audio OMDVD Version 1 Test DVD for OmniMic Precision Measurement Systems User Manual
Page 4
Performing Delay Measurements (continued)

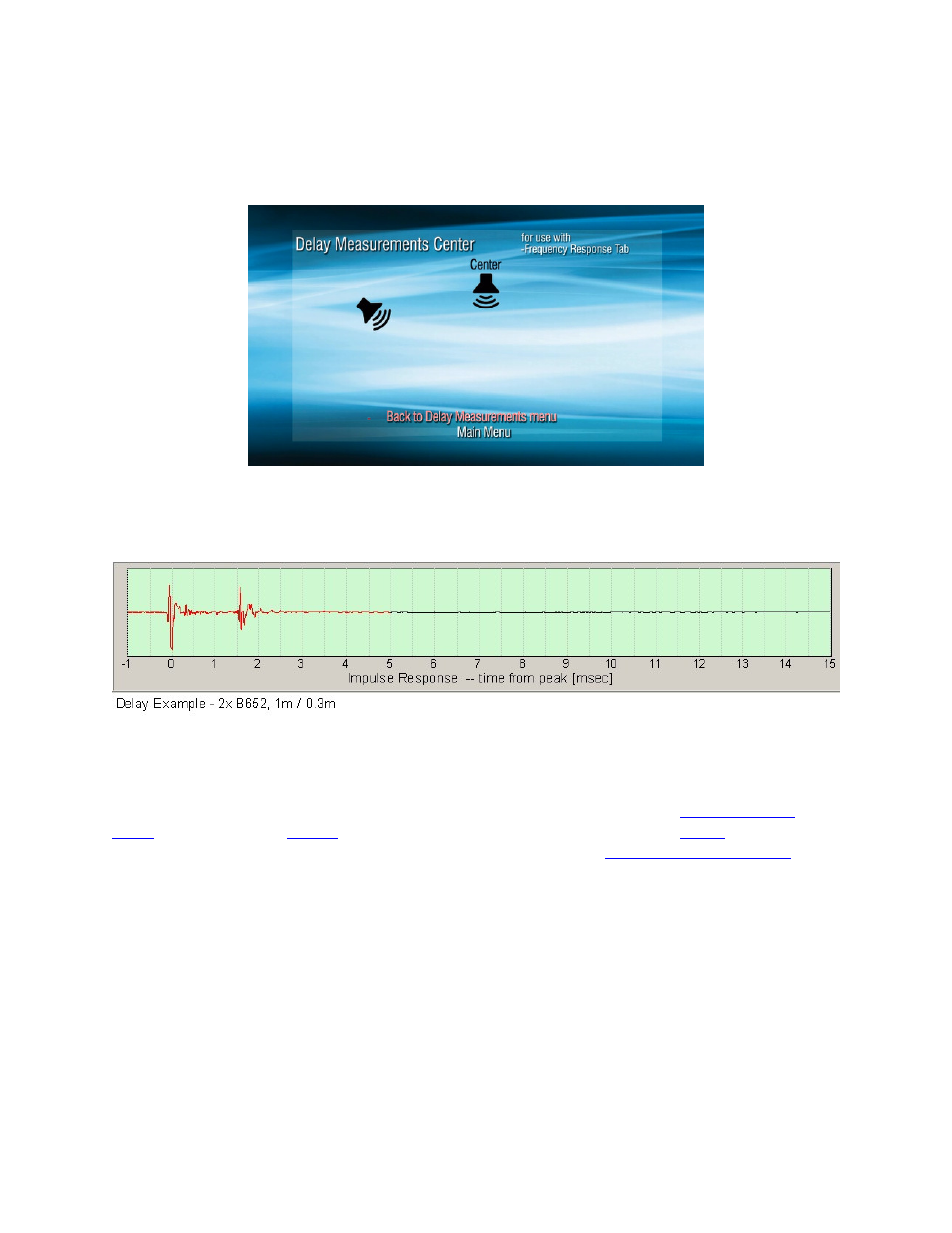

When the test signal is playing, the left channel icon will be displayed together with the icon of the other
selected channel.
The delay between the two loudspeakers is visible as the distance between the two impulse response
spikes on the impulse graph time scale. When the channel delay is perfectly aligned at the measurement
location, the two impulse responses should be indistinguishable.
More Information:
For more information about using the OmniMic V2 measurement system, read the
Quick Reference
Guide
, or view the online
Manual
. For product help, try the Dayton Audio OmniMic
Forum
at the Parts
Express Tech Talk message board, or contact Dayton Audio support at
.
Enjoy!
daytonaudio.com
Designed and Engineered in USA
P.O. Box 52 – Springboro, OH 45066-052 – Phone: (937) 743-8248
© Dayton Audio® Last Revised: 2/12/2013
