Procom MU 2404-lx User Manual
Mu 2404-lx

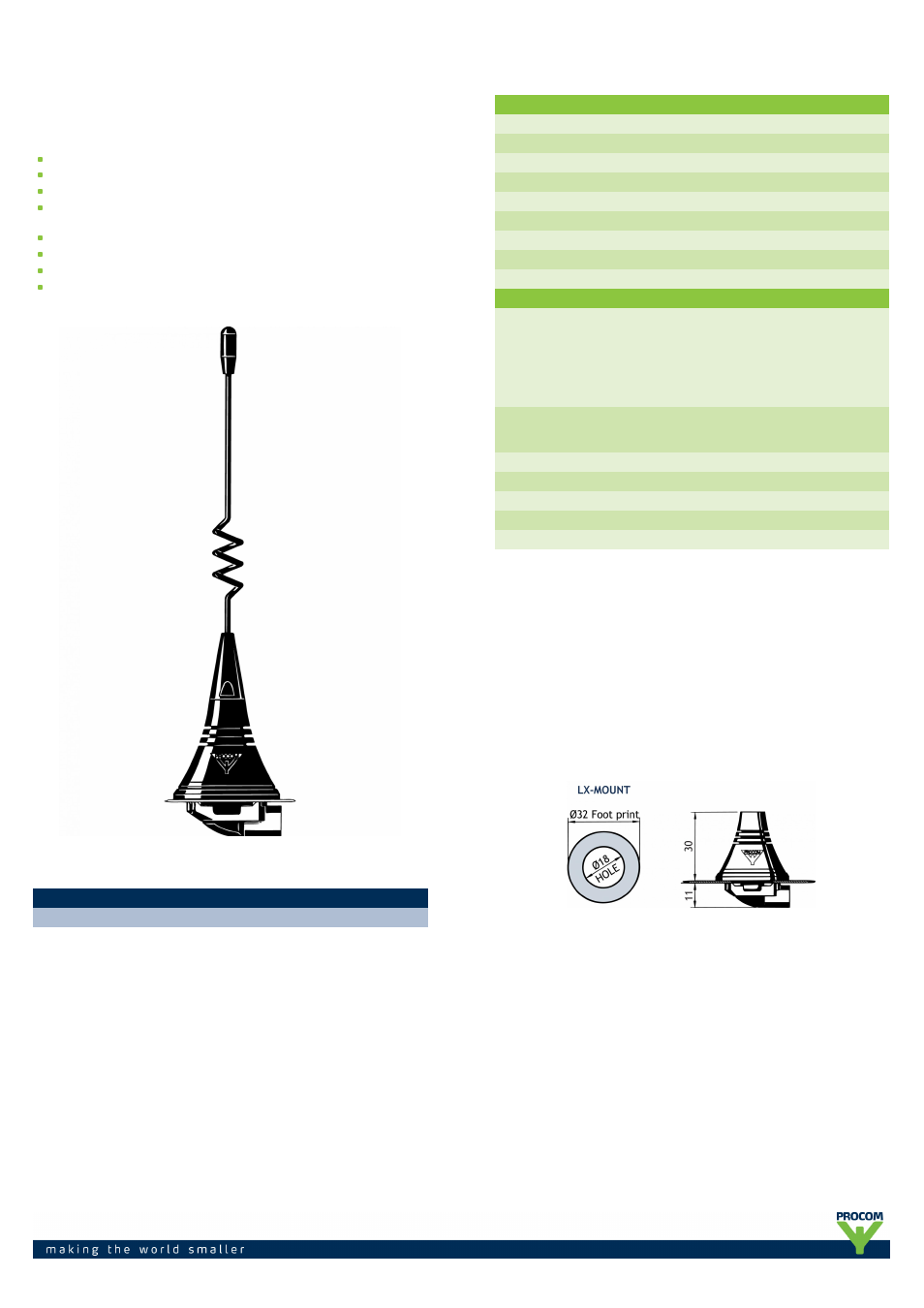

MU 2404-LX
Colinear 2 dB Mobile Antenna for the 2400 MHz Band
DESCRIPTION
Mobile antenna for the 2400 MHz band.
Colinear, stainless steel whip.
2 dB gain compared to a 1/4 λ whip.
Stainless steel LX-mount – professional quality in elegant and smooth
design.
Especially suited for roof-mounting.
Provided with FME-connection (supplied without cable).
Bendable section in mount for adjustment of whip (tiltable 15° by hand).
Installation with access from the outside only (requiring an
18 mm dia. hole).
Ordering designations
TYPE NO.
PRODUCT NO.
MU 2404-LX
130001267
SPECIFICATIONS
ELECTRICAL
MODEL
MU 2404-LX
ANTENNA TYPE
Colinear mobile whip antenna
FREQUENCY
2400 MHz band (2300 – 2500 MHz)
IMPEDANCE
Nom. 50 Ω
POLARISATION
Vertical
GAIN
2 dB (acc. to EIA RS-329-1)
BAND WIDTH
≥ 200 MHz @ SWR ≤ 2.25
SWR
≤ 2.0 @ f. res.
MAX. POWER
25 W
MECHANICAL
MATERIALS
Whip:
Black-chromed brass
Black-chromed brass stainless steel
Mount:
Stainless steel
Cu-nite brass
Environment-proof plastics
RECOMMENDED
INSTALLATION
TORQUE
3.5 Nm max.
CABLE
FME-cable to be ordered separately
COLOUR
Black
HEIGHT
Approx. 140 mm
WEIGHT
Approx. 34 g
MOUNTING
18 mm dia. hole
INSTALLATION
The LX-mount is especially suited for roof-mounting. It is recommended to
mount the antenna at the centre of the roof to ensure the best
omnidirectional coverage. Mounting can take place in an 18 mm dia. hole
with access from the outside only.
When cleaning the car in car-washing machines, the whip should be
removed – a 9 mm fork spanner can be used. After wash, the whip is
refitted and tightened lightly with the spanner.
The mount is equipped with a bendable section (±15°) to make it possible
to adjust the antenna to an upright position.
INSTALLATION DIMENSIONS
INSTALLATION STEPS
