INSTALLATION
This antenna should always be mounted on the car roof to ensure best
omnidirectional coverage.
The antenna is provided with type Z-mount. The whip is fastened to the
mount by means of our standard ball-joint and wings crew system. The
adjustable ball-joint ensures that the whip can always be mounted in a
vertical position independent of the angle of the installation spot.
The Z-mount is particularly well suited for mounting on car roofs because of
its ability to be installed exclusively with access from the outside. Models
with roof thickness from 2 mm to 7.5 mm mounting from the inside.

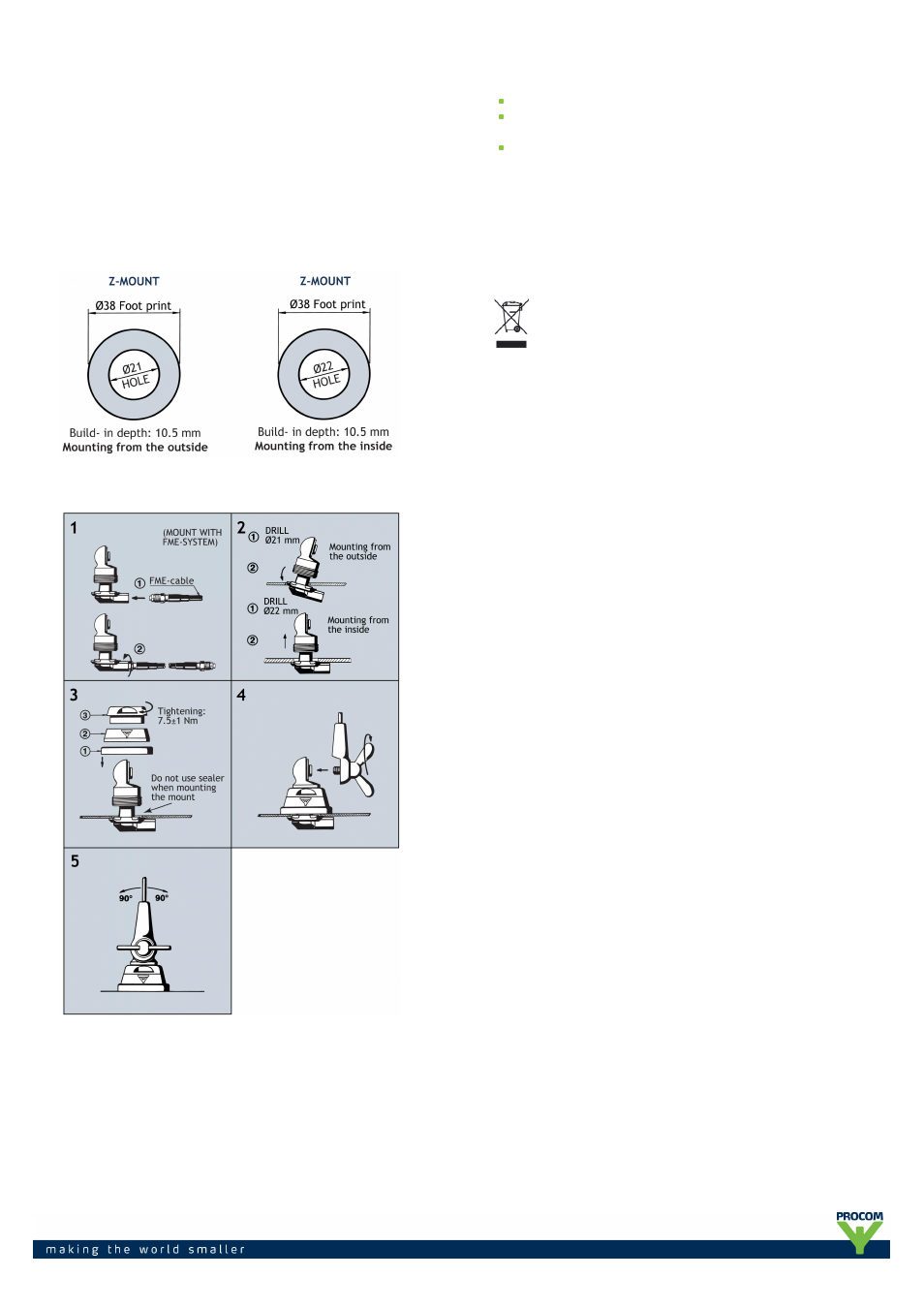

1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
3. TUNING/MODEL CONVERSION
The antenna is delivered factory-tuned and requires no further tuning.
To convert an MU 1-Z/s model into an MU 1-Z/l model, cut off 12 mm of
the top end of the whip.
To convert an MU 1-Z/l model into an MU 1-Z/h model, cut off 10 mm of
the top end of the whip.
PLEASE NOTE
As standard the antenna is provided with wing screw. However, the wing
screw may be replaced by the less obtrusive hat screw (with key), which
also gives an improved protection against theft. To order the antenna with
hat screw, please add a “K” to the antenna designation.
