INSTALLATION
This antenna should be mounted on the car roof to ensure best
omnidirectional coverage.
Mounting can take place exclusively with access from the outside when
drilling an 18 mm dia. hole. Mounting can take place from the inside by
drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the
bottom plastic ring of the packing gasket with a sharp cutter.
When cleaning the car in car-washing machines, remove the whip using a
spanner,
size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.
The MiniMag (abbreviated: MM) is a small, light-weight magnetic mount with
a high attaching effect. A silicone layer applied to the contact surface
protects the car roof and ensures maximum friction.

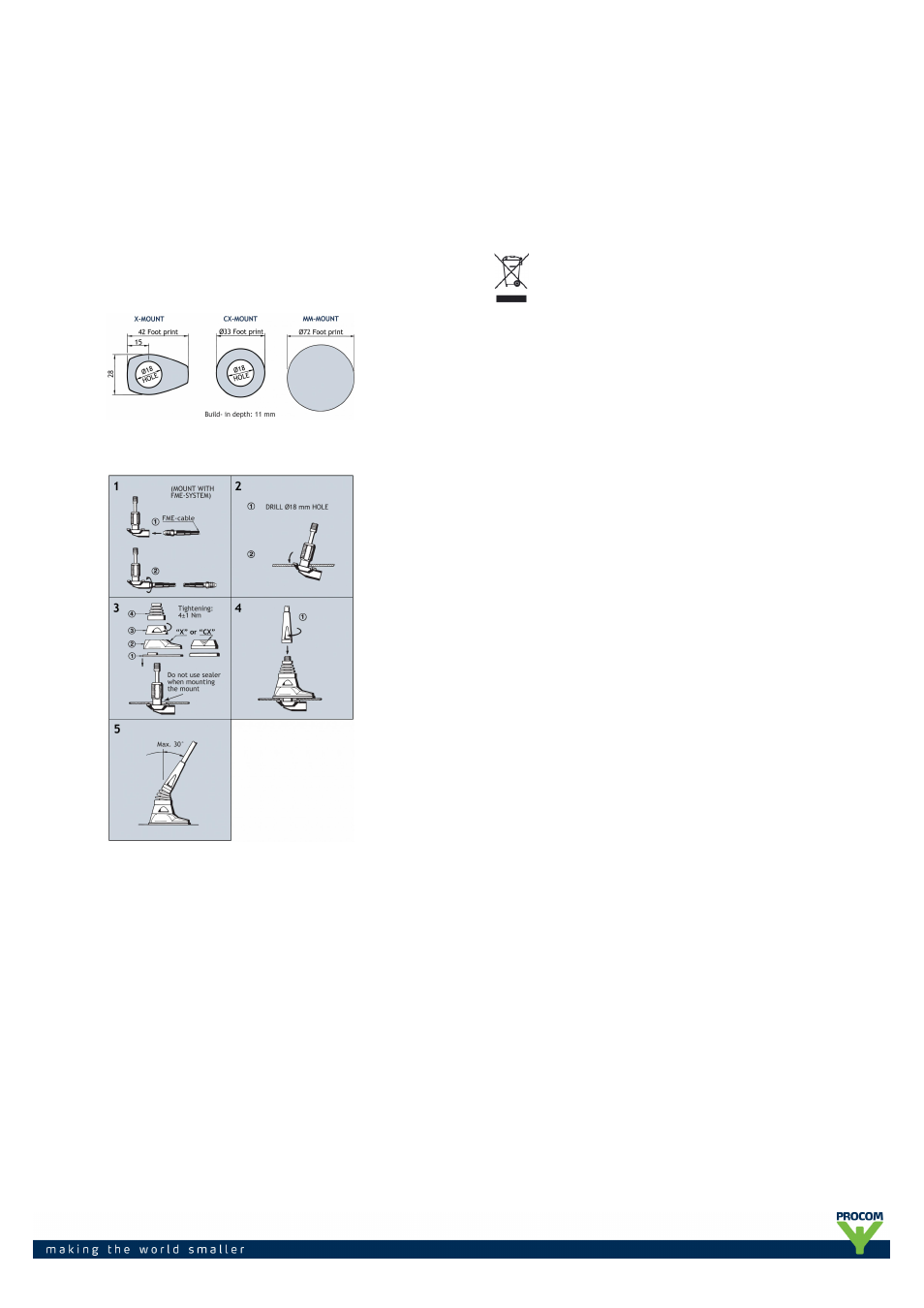

INSTALLATION DIMENSIONS
INSTALLATION STEPS
TUNING
The antenna is delivered factory-tuned and requires no further tuning.
PLEASE NOTE
For safety reasons
1. When using the MU 23-3-MM, car speed must not exceed 130 km/h.
2. If operating the MM-mount with other whips, whip length must never
exceed 320 mm, and utilizing this maximum length, car speed must not
exceed 115 km/h.
PROCOM A/S reserve the right to amend specifications
without prior notice.
16/12/11
