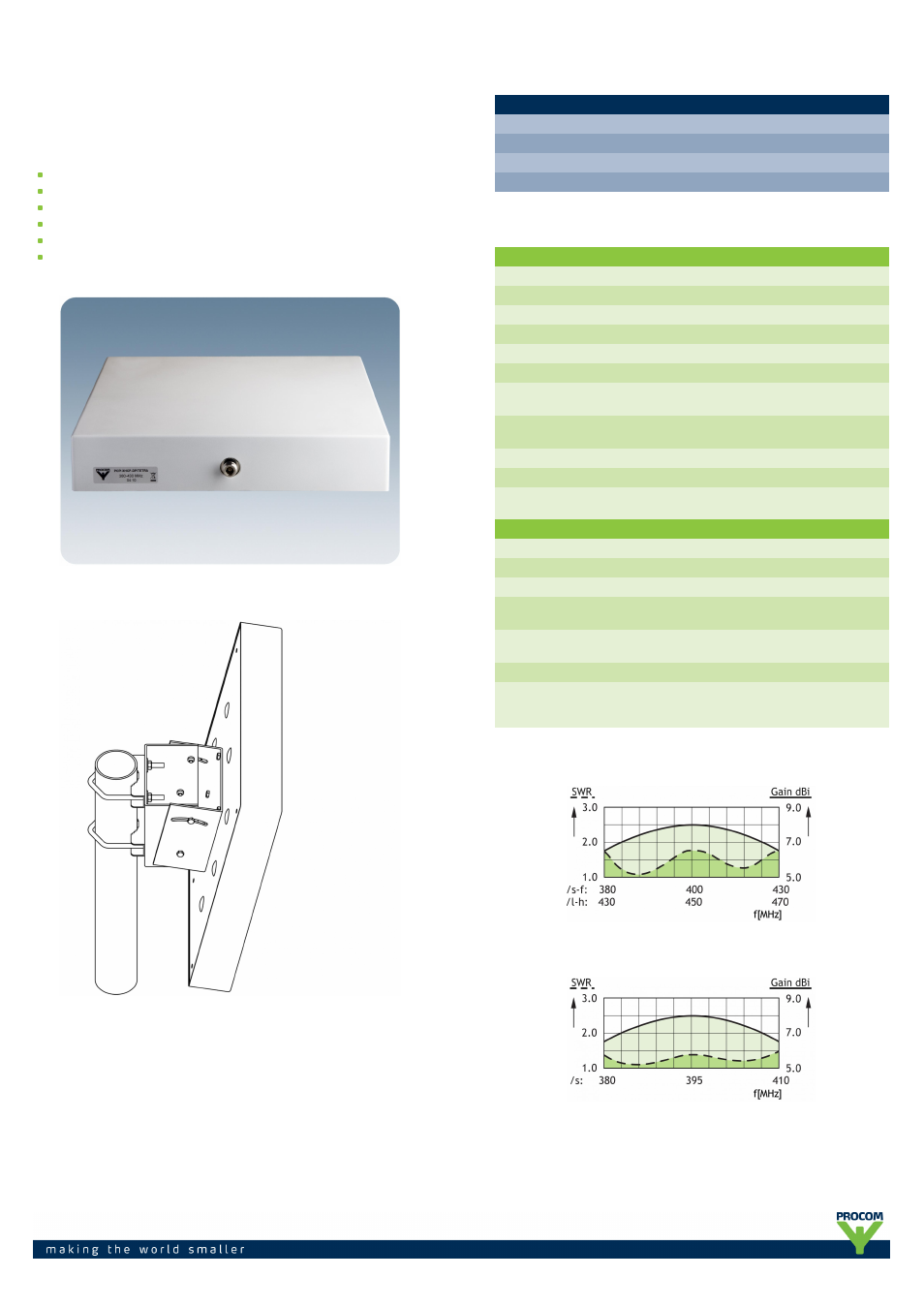

Procom PLPO-TETRA-... User Manual
Plpo/tetra

PLPO/TETRA/...
Outdoor Linearly Polarized Patch Antennas for mounting on
Wall or Mast
DESCRIPTION
Low-profile antenna for the 380 - 470 MHz band.
PLPO/TETRA/... is a patch antenna for outdoor use.
Covers 50 MHz with a radiation of approx. 7 dBi.
The antenna is carefully sealed with a discrete cover.
The connector is placed at one side to enable mounting close to a wall.
Including wall mounting bracket. Mast mounting bracket to be ordered
separately.
Mast mounting bracket: PATCH-MAMO.
Tilt adjustable from +5˚/-30˚.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
FREQUENCY
PLPO/TETRA/s-f
100000424
380 - 430 MHz
PLPO/TETRA/l-h
100000446
430 - 470 MHz
PLPO/TETRA/s
100000476
380 - 410 MHz
PATCH-MAMO
100000447
SPECIFICATIONS
ELETRICAL
MODEL
PLPO/TETRA/s-f PLPO/TETRA/l-h PLPO/TETRA/s
ANTENNA TYPE
Linearly polarized patch antenna
FREQUENCY
380 - 430 MHz
430 - 470 MHz
380 - 410 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Linear
GAIN
Approx. 7 dBi
BANDWIDTH
≥ 50 MHz @
SWR ≤ 2
≥ 50 MHz @
SWR ≤ 2
≥ 30 MHz @
SWR ≤ 1.6
HALF-POWER
BEAMWIDTH
Approx. 80° (H- and E-plane)
SWR
≤ 2
≤ 2
≤ 1.6
MAX. POWER
100 W
ANTISTATIC
PROTECTION
All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
CONNECTOR
N-female
WIND LOAD
173 N @ 160 km/h / 173 N @ 100 mph.
COLOUR
Marine white
MATERIALS
Cover: ABS (white)
Chassis: Aluminium
SIZE (L x W x H)
Approx. 340 x 340 x 60 mm / 13.39 x 13.39 x 2.36
in.
WEIGHT
Approx. 2.3 kg / 5.07 lb.
MOUNTING
For mounting on wall ø5 mm
(three holes) (see mounting details) or mast
on 40 - 55 mm / 1.57 x 2.17 in. dia. mast tube
TYPICAL GAIN AND SWR CURVES
TYPICAL GAIN AND SWR CURVES
