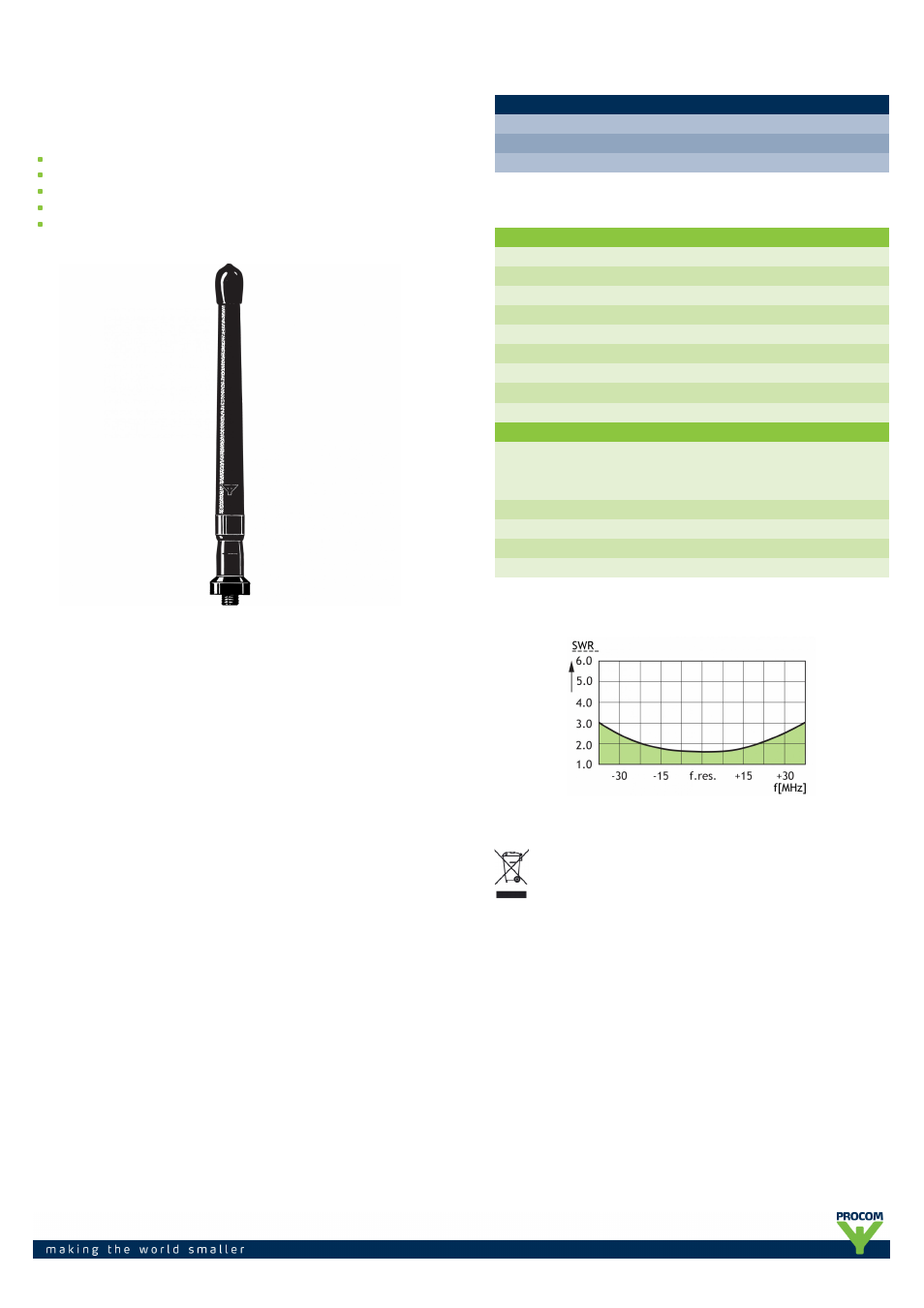

GA 70/...-GP 300
Rubber Antenna for Portable Equipment in the 70 cm Band
DESCRIPTION
Sturdy, conical, flexible rubber antenna.
Full size ¼ λ whip.
Highest quality materials – designed for “wear and tear”.
Delivered factory tuned and tested to ensure minimum SWR.
Especially designed for Motorola GP 300, GP 344, GP 360 and GP 388
(450 MHz band) etc.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
GA 70/s-GP 300 140000368 380 – 430 MHz
GA 70/l-GP 300 140000304 400 – 450 MHz
GA 70/h-GP 300 140000305 420 – 470 MHz
SPECIFICATIONS
ELECTRICAL
MODEL GA 70/...-GP 300
ANTENNA TYPE ¼ λ antenna for portable equipment
FREQUENCY 70 cm band covered by three models
IMPEDANCE Nom. 50 Ω
POLARISATION Vertical
GAIN 0 dB (equal to a ¼ λ portable antenna)
BANDWIDTH ≥ 60 MHz @ SWR ≤ 2.5
SWR ≤ 2 when mounted directly on portable equipment
MAX. POWER 100 W
MECHANICAL
MATERIALS Steelwire moulded in thermoplastic rubber
Weather- and shockproof plastics
Black-chromed brass
Cu-nite brass
COLOUR Black
TOTAL HEIGHT Approx. 140 mm (dep. on type)
WEIGHT Approx. 30 g
CONNECTOR 1/4”-32 UNEF
TYPICAL SWR CURVE
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/12/11
