CXL 2000-3LW
3 dBd Omnidirectional Base Station and Marine Antenna for
the 2000 MHz Band
DESCRIPTION
Vertically polarized, omnidirectional base station and marine antenna.
Approximately 3 dBd gain.
Provided with the sturdy “LW” mast mount – a lightweight,
multipurpose, epoxy-coated mounting bracket made of non-corrosive
aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in
outer diameter.
The cable can be led either on the outside or along the inside of the
mast tube.
Large bandwidth with respect to both SWR and gain.
Highly suitable for duplex operation with large spacing between the TX
and the RX frequencies.
The antenna element is sealed in a high-quality, conical glass fibre tube.
All metal parts in the antenna are DC-grounded to reduce the noise
caused by atmospherical discharge.
Consequently, the antenna shows a DC-short across the coaxial cable.
The CXL 2000-3LW is a vibration-proof, lightweight, slim-line, corrosion
resistant, modern style base station and marine antenna.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
CXL 2000-3LW
100000191
SPECIFICATIONS
ELECTRICAL
MODEL
CXL 2000-3LW
ANTENNA TYPE
Coaxial, collinear antenna, broadbanded
FREQUENCY
1900 – 2200 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
5 dBi 3 dBd
BANDWIDTH
≥ 200 MHz @ SWR ≤ 2.0
≥ 300 MHz @ SWR ≤ 2.5
SWR
≤ 2.5, typ. ≤ 2.0
MAX. POWER
100 W
ANTISTATIC
PROTECTION
All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE
-30°C → +70°C
CONNECTOR
N-female
WIND SURFACE
Approx. 0.02 m²
WIND LOAD
Approx. 25 N @ 160 km/h
COLOUR
Marine white
MATERIALS
Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium,
epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT
Approx. 700 mm
DIA. IN TOP END
22 mm
DIA. IN BOTTOM END
23 mm
WEIGHT
Approx. 600 g
MOUNTING
On 16 to 54 mm dia. mast tube

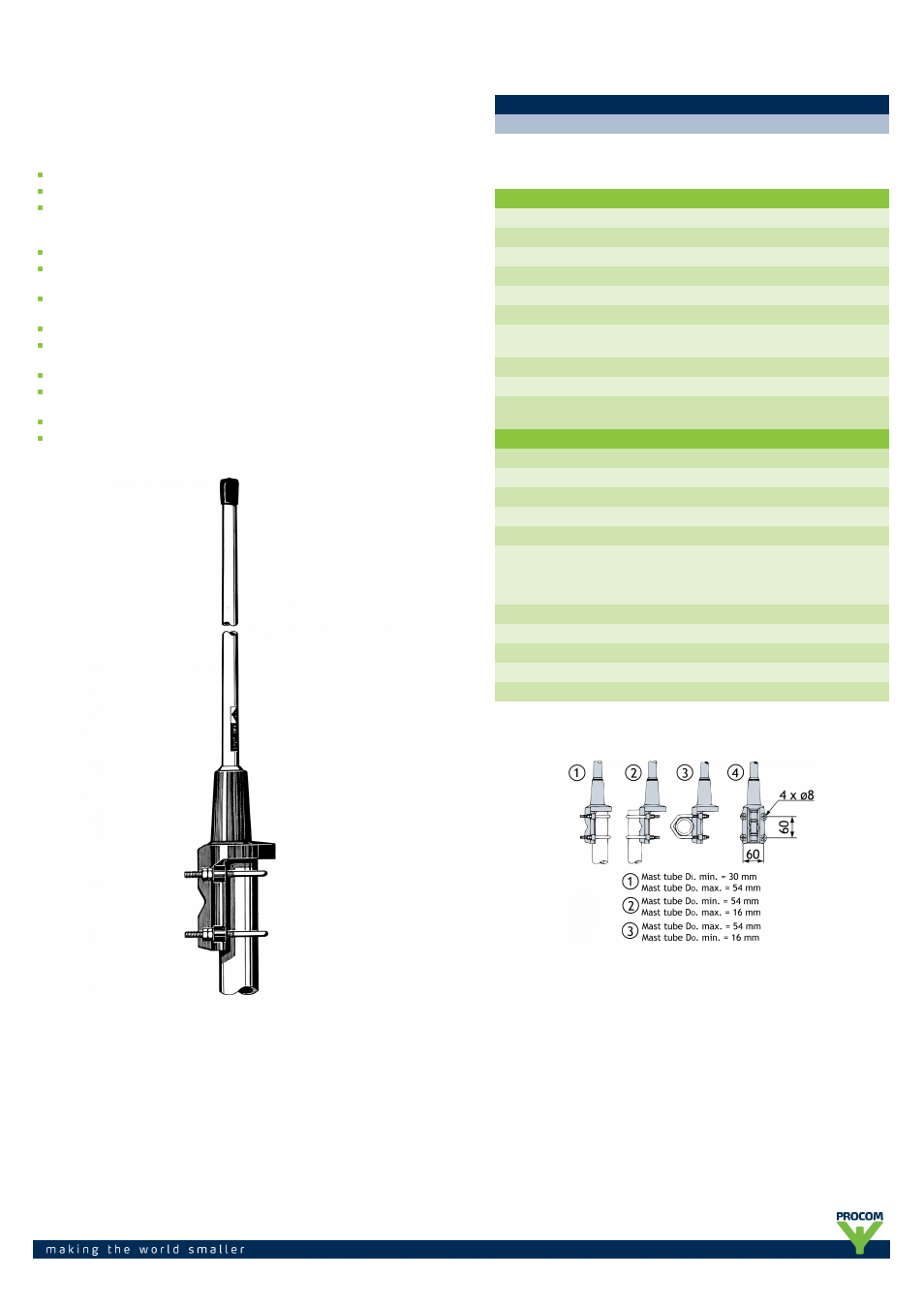

MULTI-PURPOSE MOUNTING BRACKET
