Procom ML 1-ZG User Manual
Page 2

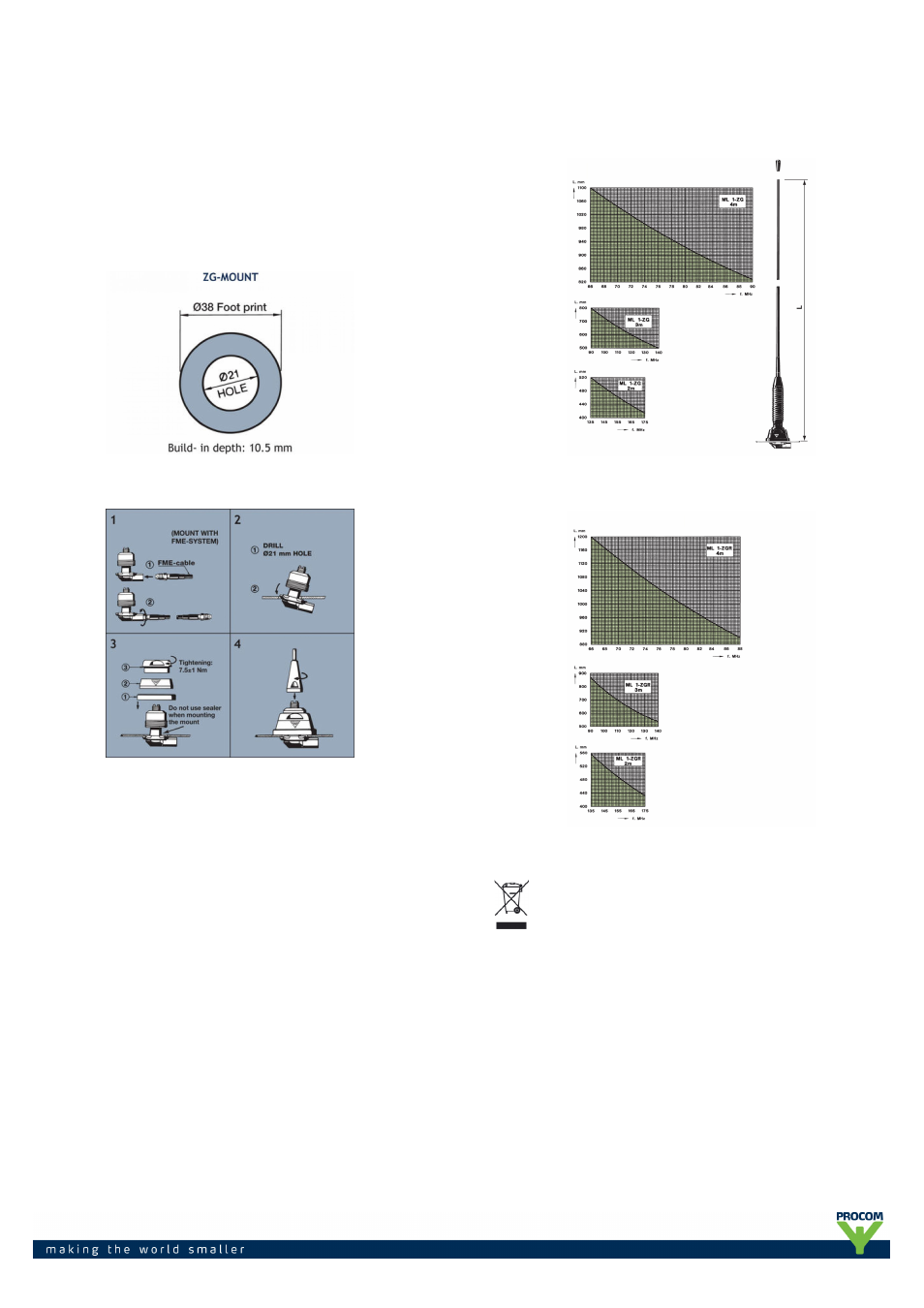

INSTALLATION
This antenna is supplied with our type ZG-mount for mounting from the
outside in a
21 mm dia. hole on horizontal surfaces as e.g. roof top or trunk lid.
The ZG-mount is provided with an M8 x 1 thread mount system. This
construction meets the demand for a low-profile mobile mount with a slim
appearance and with protection against theft of the antenna whip.
When cleaning the car in automatic washing machines, the whip is easily
removed using a spanner size 12 mm. The whip is refitted again by screwing
it onto the M8 x 1 thread stud and tightening it with the spanner.
1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
3. TUNING
The antenna should always be tuned using an SWR-meter.
The cutting diagrams below serve as a guide for this procedure.
GLASS FIBRE WHIP
STAINLESS STEEL WHIP
PROCOM A/S reserve the right to amend specifications
without prior notice.
07/11/11
