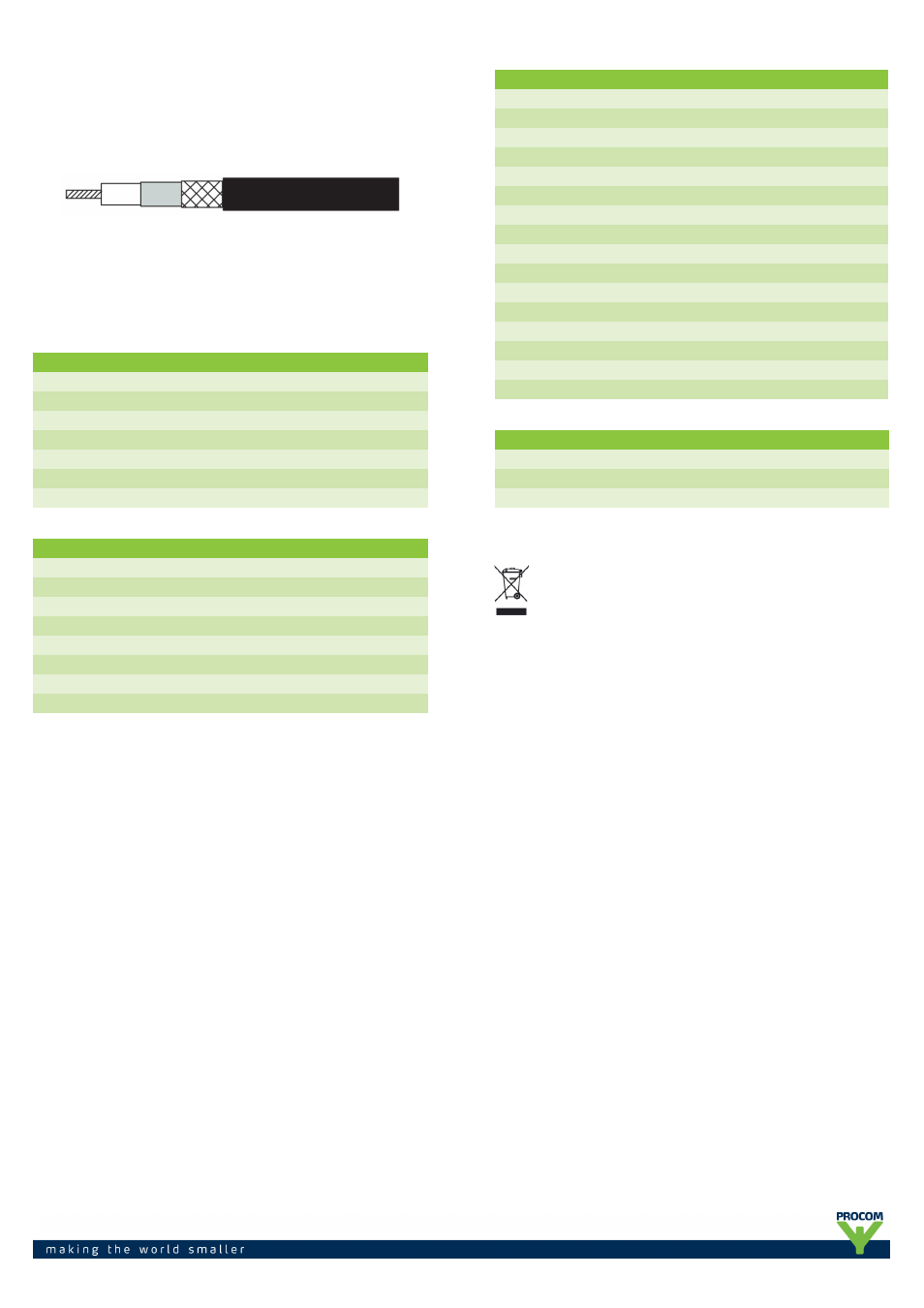

RG 58 A/U-XLL
RG 58 A/U-XLL is a ultra low loss coaxial cable.The inner conductor consist
of stranded bare copper wires and the cable has a double braid shield.The
jacket material is flame retardent. All used materials are free of halogens.
MECHANICAL STRUCTURE
INNER CONDUCTOR ø1.35 mm (7x0.45) Cu bare
INSULATION ø3.6 mm PE
OUTER CONDUCTOR Approx. ø4.3 mm
FOIL Aluminium
BRAIDING Cu-tinned
COVERAGE 65 %
JACKET ø5.35 ± 0.15 mm
ELECTRICAL VALUES
IMPEDANCE 50 ± 3 Ω
CAPACITANCE 80 ± 3 pf/m
VELOCITY RATIO 0.81
INNER CONDUCTOR <17 Ω/km
OUTER CONDUCTOR <20 Ω/km
RETURN LOSS [dB]
1 - 2 GHz >20 dB
2 - 2.5 GHz >18 dB
ATTENUATION
FREQUENCY [dB/100m] Max. HF-power/W
50 MHz 7.4
100 MHz 10.0
200 MHz 13.9
400 MHz 20.4
500 MHz 23.0 160
870 MHz 31.2
1000 MHz 33.8 110
1400 MHz 40.8
1600 MHz 44.0
1800 MHz 47.2
1900 MHz 49.3
2000 MHz 51.3 76
2500 MHz 57.2
3000 MHz 63.6
3500 MHz 69.6
MECHANICAL VALUES
WEIGHT Approx. 39 [kg/km]
MIN. BENDING RADIUS 60 mm
TEMP. RANGE -25°C → +90°C
PROCOM A/S reserve the right to amend specifications
without prior notice.
25/07/13
