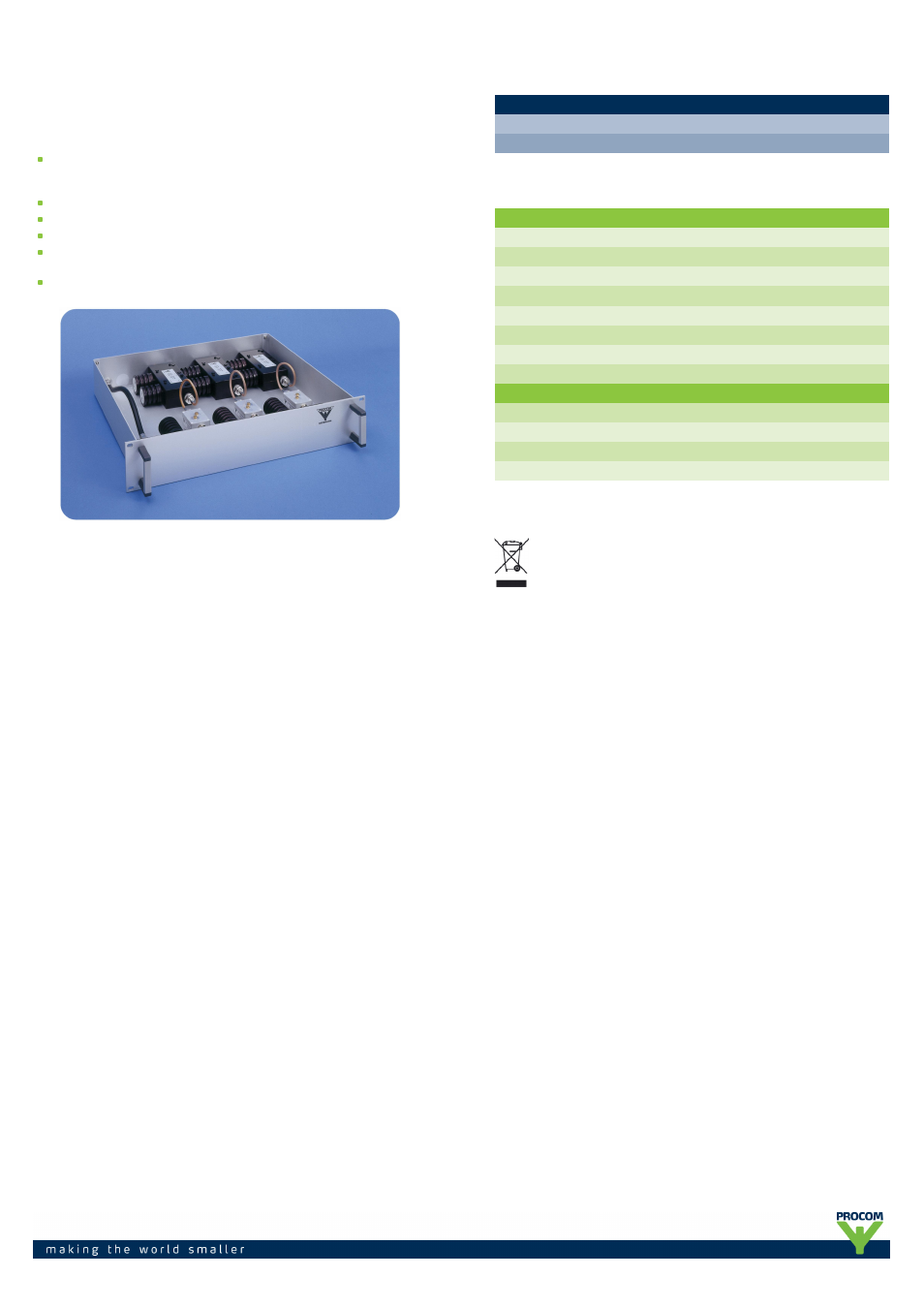

PRO-PHY85-3DI-...
3-Channel Hybrid Combiner
DESCRIPTION
The PRO-PHY series of hybrid combiners has been designed to help
identify the optimum solution for combining several transmitters into
one antenna.
All hybrid combiners are suitable for 19” rack mounting.
Dual isolators fitted as standard.
A range of racks and cabinets are available.
Option: Maximum input power of 35 W (PRO-PHY…3DI-35)
or 100 W (PRO-PHY…3DI-100).
Please specify the frequencies for TX when ordering.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-PHY85-3DI-35 210001254
PRO-PHY85-3DI-100 210000820
SPECIFICATIONS
ELECTRICAL
MODEL PRO-PHY85-3DI-...
TX FREQUENCY 66 - 88 MHz
MAX. INPUT POWER 35/100 W
TX-TX SPACING, Δ TX
< 3 MHz
TYP. INSERTION LOSS 6.1 dB
TX-TX ISOLATION > 90 dB
IMPEDANCE Nom. 50 Ω
SWR ≤ 1.5
MECHANICAL
TEMP. RANGE –30° C → +60° C
CONNECTORS N-female
DIMENSIONS (L x W x H) 483 x 89 x 400/500 mm
WEIGHT Approx. 7.9/11.4 kg
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/10/11
