BPF-WiMAX 2.3-2.6/5-1x2
Combline Band-Pass Filter for the 2.3 - 2.6 GHz Band
DESCRIPTION
The BPF-WiMAX 2.3-2.6/5-1x2 is a 5-resonator, cavity band-pass filter
specially designed for WiMAX applications and other wireless area
network systems.
The WiMAX cavity filter is able to cover 2.3 to 2.6 GHz frequency
range.
A bandwidth of 30 MHz.
Insertion loss of less than 0.8 dB on the passband edges.
More than 25 dB attenuation just 20 MHz from the passband.
The BPF-WiMAX 2.3-2.6/5-1x2 housing is made of silver-plated
aluminium.
Careful design and choice of materials ensure a long lifetime and
reliable operation over a wide temperature range.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
BPF-WiMAX 2.3-2.6/5-1x2 200002130
SPECIFICATIONS
ELECTRICAL
MODEL BPF-WiMAX 2.3-2.6/5-1x2
FILTER TYPE Combline band-pass filter
CENTRE FREQUENCY To be stated within 2.3 - 2.6 GHz
MAX. INPUT POWER 100 W
PASS RANGE WIDTH 30 MHz (others on request)
INSERTION LOSS ≤ 0.8 dB, typ. 0.7 dB
ATTENUATION AROUND PASSBAND ± 35 MHz rel. fc: > 25 dB
± 80 MHz rel. fc: > 40 dB
ATTENUATION OUTSIDE PASS RANGE 0 - 4 GHz: See curves
IMPEDANCE Nom. 50 Ω
SWR < 1.3
MECHANICAL
TEMP. RANGE –30° C → +60° C
FREQ. STABILITY Approx. ±3.5 MHz drift
CONNECTORS N-female
DIMENSIONS (L x W x H) 289 x 50 x 40 mm (without conn.)
WEIGHT Approx. 1.0 kg

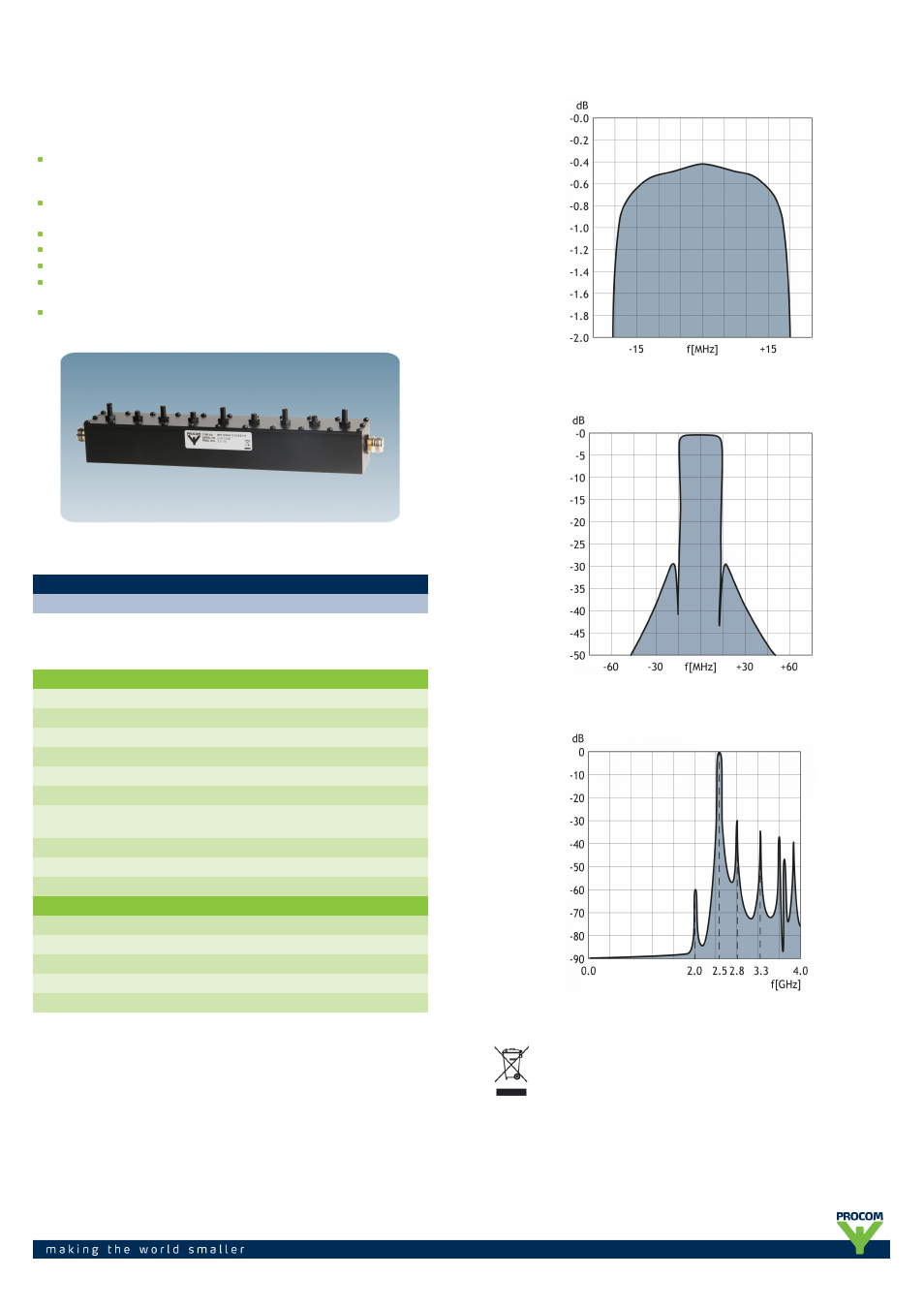

TYPICAL CURVE FOR INSERTION LOSS
TYPICAL RESPONSE CURVE
TYPICAL CURVE FOR BPF-WiMAX 2.5/5-1x2
PROCOM A/S reserve the right to amend specifications
without prior notice.
